Product Description

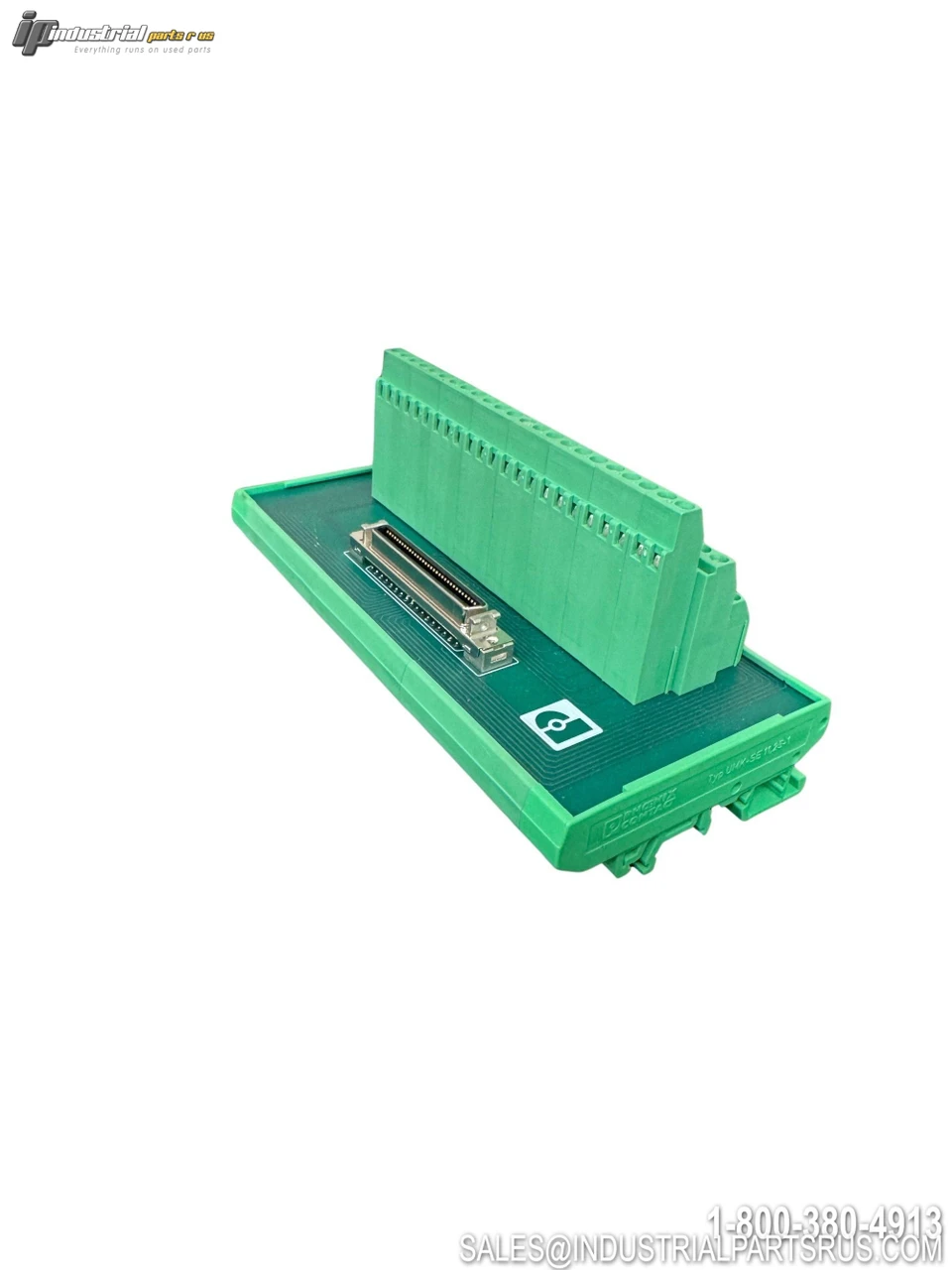

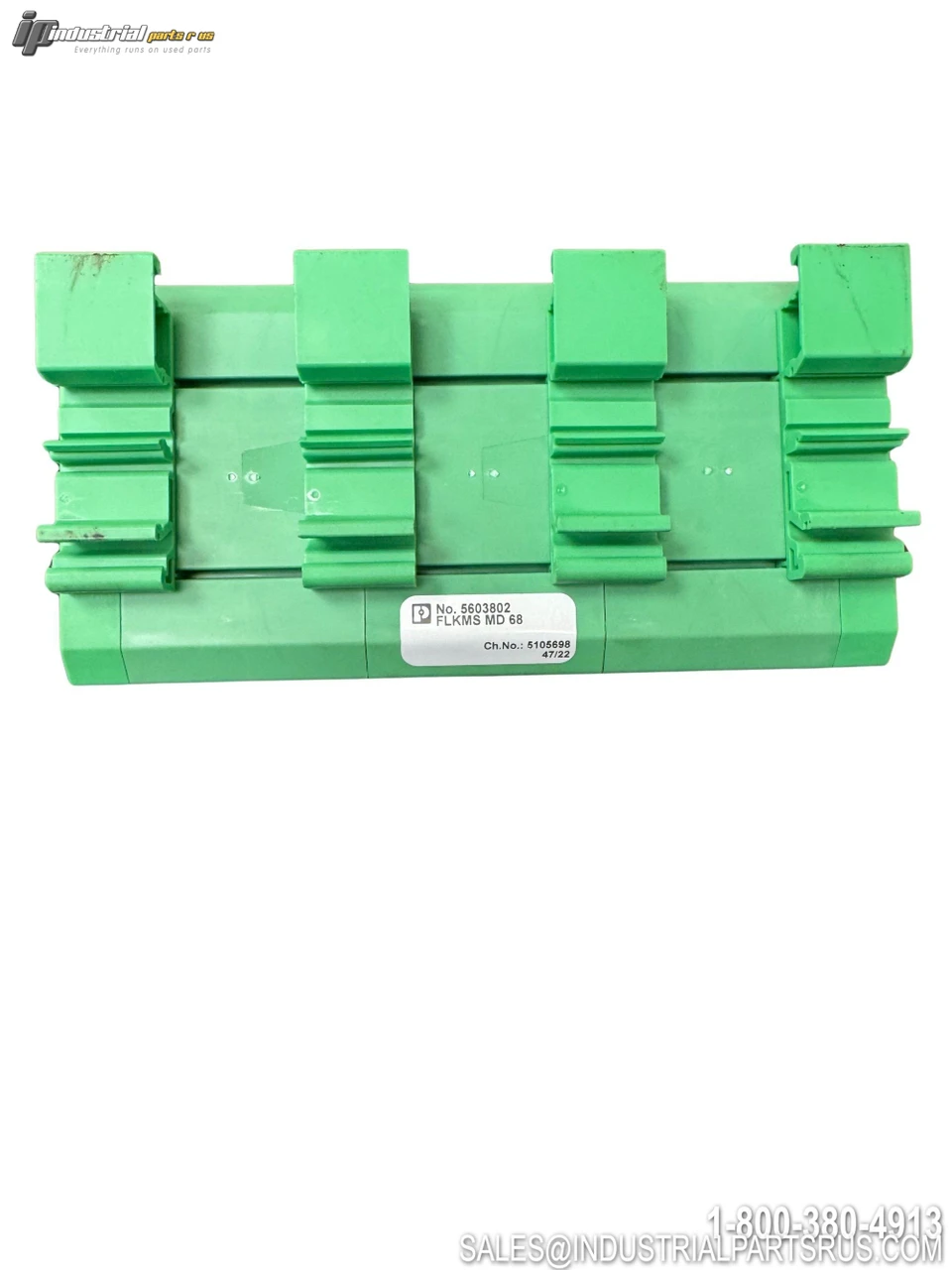

The Phoenix Contact FLKMS MD 68 (Order No. 5603802) is a VARIOFACE passive interface module designed with screw connection termination for use with MD 50 connectors. Part of the compact FLKMS series, this module features a 68-position configuration and serves as a wiring interface between a controller's I/O system and field-level devices. Compatible with universal and multi-platform controller environments, it mounts on standard DIN rail and is suitable for use in modern machine and plant control cabinet installations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Phoenix Contact |
| Model / Part Number | FLKMS MD 68 |
| Order Code | 5603802 |
| Product Type | Passive Interface Module (Transmission Module) |
| Product Family | VARIOFACE |
| Series | FLKMS |
| Number of Positions | 68 |
| Compatible Connector | MD 50 |
| Field Level Connection Method | Screw Connection |
| Max. Operating Voltage | 60 V AC/DC |
| Max. Current Per Path | 1 A |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Ambient Temperature (Operation) | -20 °C to +50 °C |
| Max. Conductor Cross Section (Rigid) | 2.5 mm² |
| Housing Material | Polyamide PA (non-reinforced, green) |
| Mounting Type | DIN Rail |
| Standards / Regulations | IEC 60664 |
| Test Voltage (Contact/Contact) | 0.5 kV (50 Hz, 60 s) |
| Weight (incl. packaging) | 33.33 g |
| GTIN | 4046356683401 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Connection Type Screw Connection
Current 1 A (per path)
Manufacturer Phoenix Contact
Empty Weight 33.33 g
Part Number FLKMS MD 68
Controller Platform Universal / Multi-Platform
Series FLKMS
Shelf K-55
Model FLKMS MD 68
MPN FLKMS MD 68
Voltage 60VDC
Type I/O Module
