Product Description

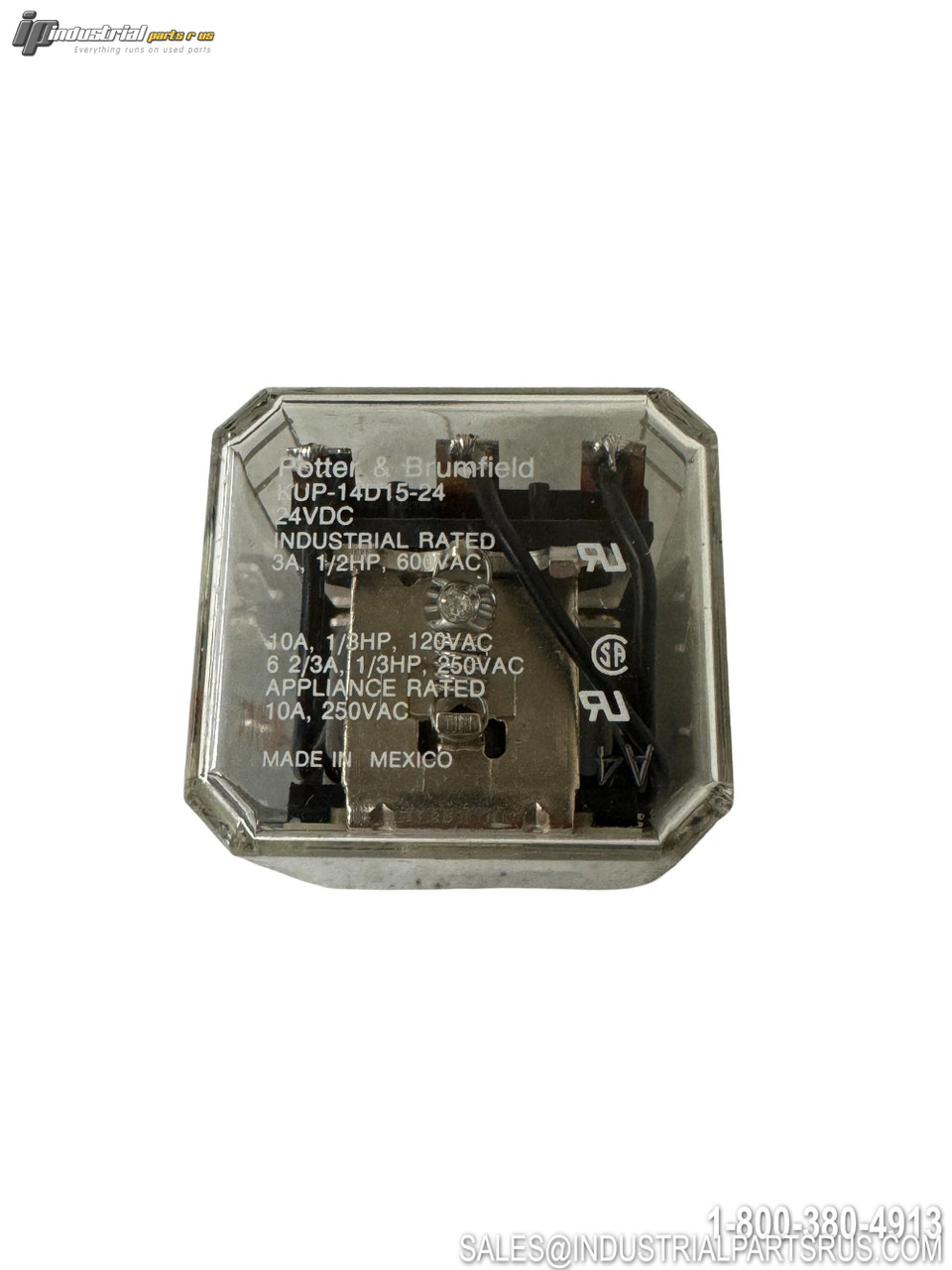

The Potter & Brumfield KUP-14D15-24 is a 3-pole double-throw (3PDT / 3 Form C) general purpose panel plug-in power relay from the KUP series, now manufactured under TE Connectivity. It features a 24VDC coil with 472Ω resistance, a 10A contact current rating with silver cadmium oxide contacts, and an 11-blade socket-mount plain case design with quick connect/solder terminals. This relay is widely used in industrial control panels, HVAC systems, and automation equipment where reliable switching of AC or DC loads is required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Potter & Brumfield |
| Model / Part Number | KUP-14D15-24 |
| TE Internal Part Number | 1-1393118-4 |
| Series | KUP |
| Product Type | General Purpose Power Relay |
| Contact Arrangement | 3PDT (3 Form C, Triple Pole Double Throw) |
| Coil Voltage | 24VDC |
| Coil Resistance | 472Ω ±10% |
| Coil Power (DC) | 1.2 Watts |
| Contact Current Rating | 10A |
| Contact Voltage Rating (AC) | 120/250VAC |
| Contact Voltage Rating (DC) | 32VDC max |
| Industrial HP Rating (120VAC) | 1/3 HP @ 10A, 120VAC |
| Industrial HP Rating (250VAC) | 1/3 HP @ 6-2/3A, 250VAC |
| Industrial HP Rating (600VAC) | 1/2 HP @ 3A, 600VAC |
| Appliance Rating | 10A, 250VAC |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Terminal Type | 0.187" (4.75mm) Quick Connect / Solder |
| Number of Blades | 11 |
| Mounting Type | Socket Mount, Plain Case (Panel Plug-In) |
| Enclosure | Clear Polycarbonate Dust Cover |
| Coil Pickup Voltage (min) | ≤75% of nominal (≤18VDC) |
| Dielectric (Open Contacts) | 1,200V rms |
| Dielectric (Adjacent Contacts) | 2,200V rms |
| Dielectric (Contacts to Coil) | 2,200V rms |
| Operating Temperature | -45°C to max rated ambient |
| Weight | 3.0 oz (85g) approx. |
| RoHS Compliant | Yes |
| Certifications | UL, CSA |
