Product Description

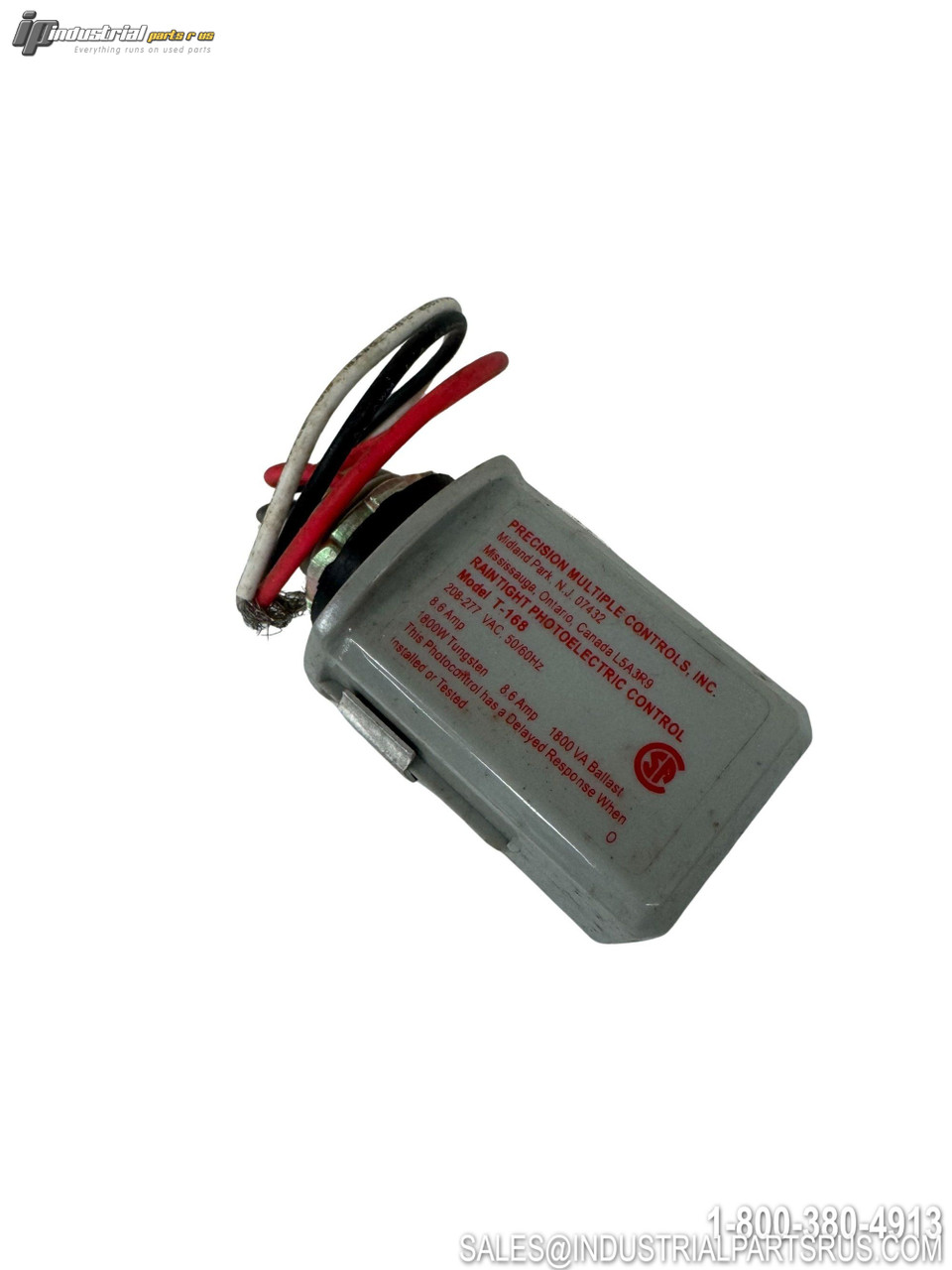

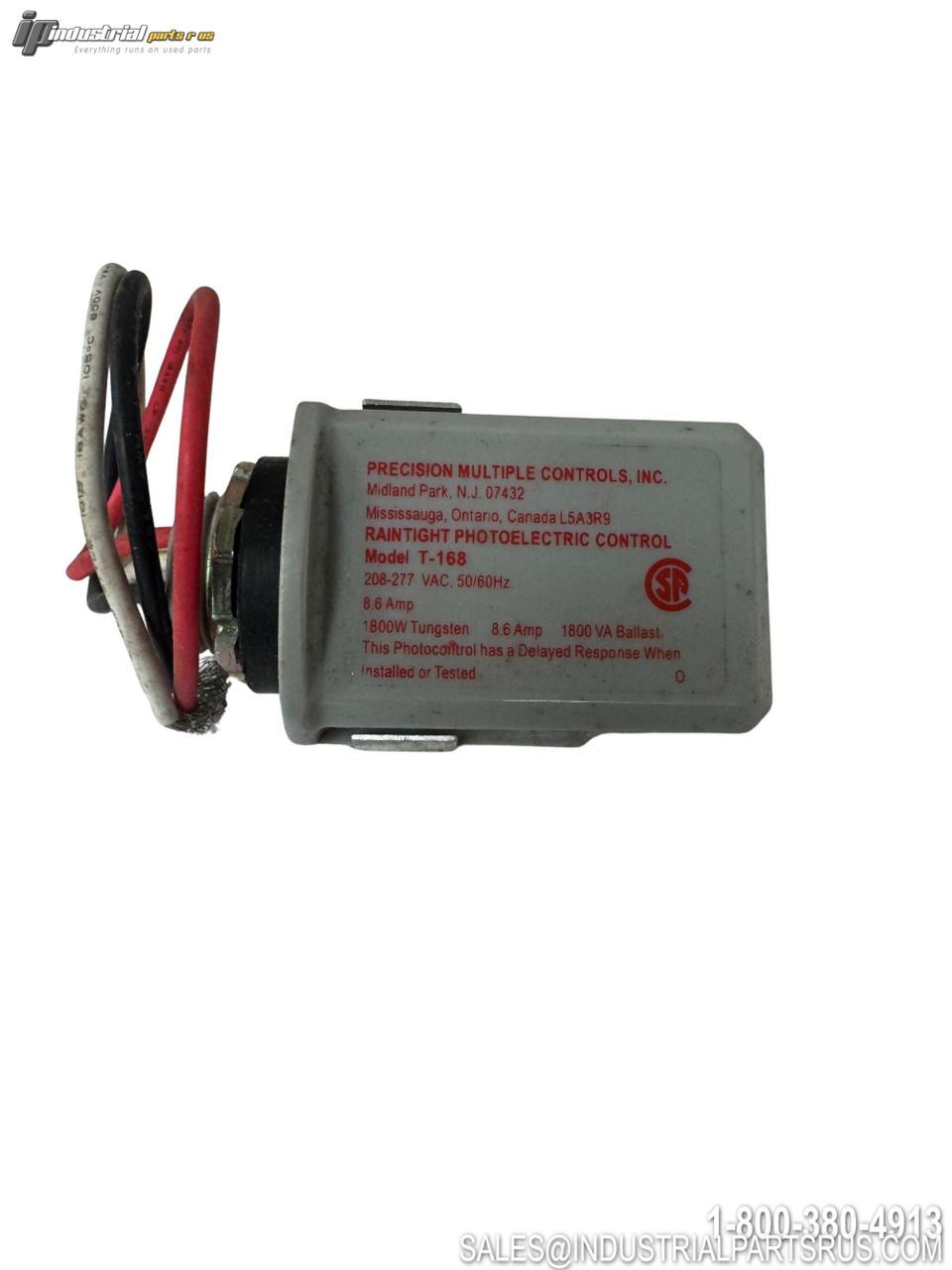

The Precision Multiple Controls T-168 is a Lumatrol T-Series wire-in photocontrol designed for outdoor dusk-to-dawn lighting applications. It operates on 208/277V AC circuits, switches up to 1800W of ballast or tungsten load, and features a stem-mount design for installation in standard junction boxes or wall packs. The unit incorporates a cadmium sulfide light-sensitive element with a built-in time delay to prevent nuisance switching, and is built for weatherproof outdoor use in parking lot lights, security lights, and area lighting fixtures. Output is via a normally closed (NC) relay contact with lead wire termination.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Precision Multiple Controls |
| Model / Part Number | T-168 |
| Series | Lumatrol T-Series |
| Voltage | 208/277V AC |
| Power Rating (Ballast Load) | 1800 VA / W |
| Switch Type | SPST (Single-Pole, Single-Throw) |
| Contact Position (Night) | Normally Closed |
| Mount Type | Stem Mounted |
| Housing Material | Aluminum (T-168); Lexan available on variants |
| Threaded Stem | 1/2 inch - 14 thread (fits 1/2 inch knockout) |
| Lead Wire Length | 6 inches |
| Lead Wire Type | Moisture-proof, color-coded (Black, Red, White) |
| Photocell Sensor | 1/2" Cadmium Sulfide (CdS) light-sensitive element |
| Turn-On Light Level | 1 to 3 foot-candles |
| Turn-On / Turn-Off Ratio | 1:3 |
| Time Delay | 15 seconds minimum |
| Operating Temperature Range | -40°F to +158°F (-40°C to +70°C) |
| Dimensions (H x W x D) | 2" H x 1-1/2" W x 1" D |
| Application | HID, Induction, LED, CFL outdoor lighting |
| Compatible Fixture Opening | 2" diameter or larger |
| Replacements / Cross-Reference | Intermatic K4124 / K4122 / K4133; Tork 2104; ALR AT-168 / SPT-168 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type Relay
Sensor Type Photoelectric
Manufacturer Precision
Part Number T-168
Shelf D-3 Tub 2
Model T-168
MPN T-168
Type Photoelectric Sensor
