Product Description

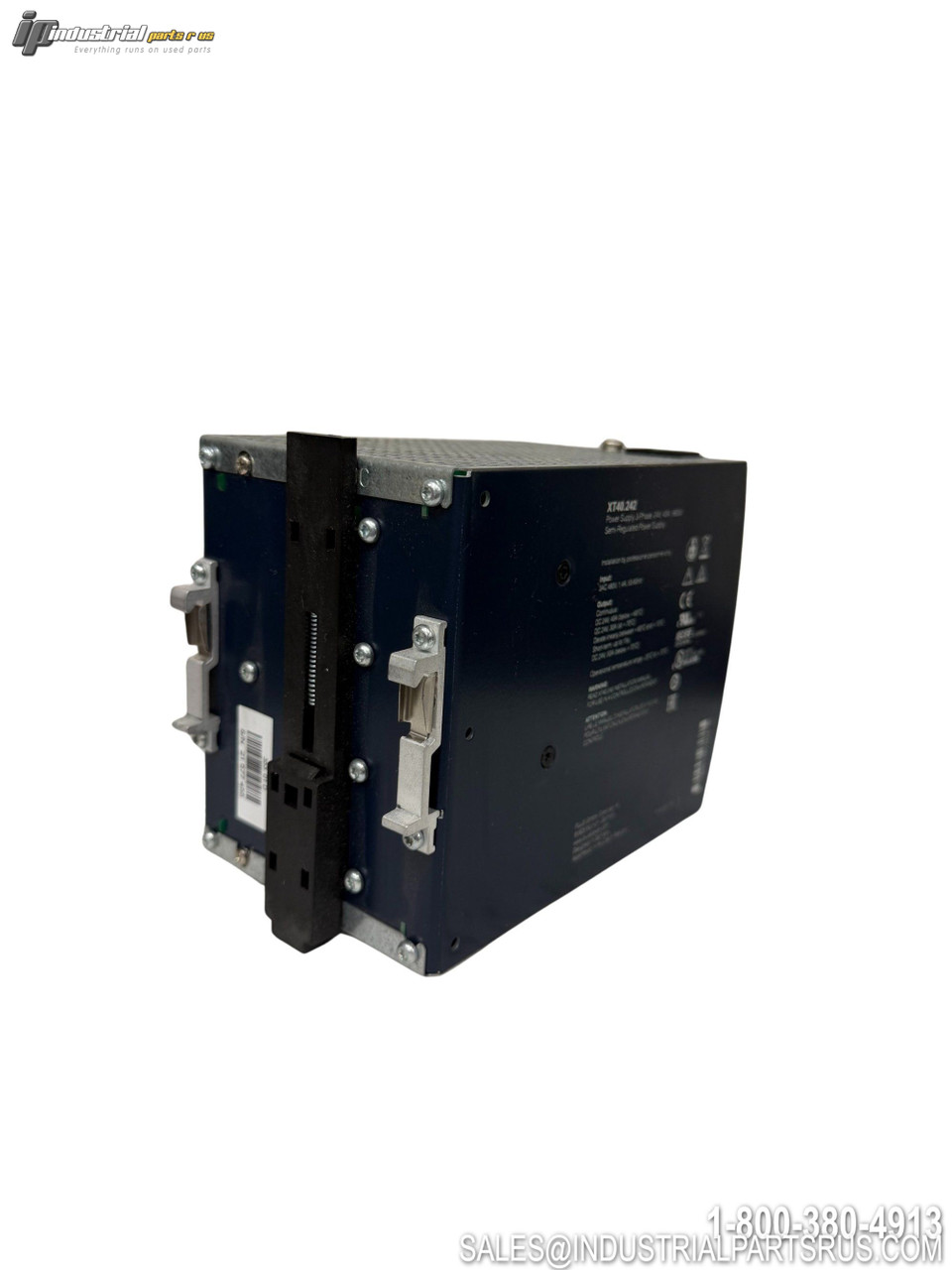

The XT40.242 is a 960W 3-phase DIN rail power supply from Puls's DIMENSION X-series. A semi-regulated resonant converter enables a very compact design maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation output ripple and hold-up time. This unit is ideal for industrial applications requiring reliable DC power for motors, valves, and other high-power loads.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Puls |
| Model/Part Number | XT40.242 |
| Series | DIMENSION X-Series |
| Output Voltage | 24VDC (fixed) |
| Output Current | 40A |
| Output Power | 960W |
| Input Voltage | 3x432-528VAC (440/480/500/525VAC nom.) |
| Input Phases | 3-Phase |
| Frequency | 47-63Hz |
| Input Current | 1.4A/phase (@ 480VAC) |
| Power Factor | 0.93 |
| Efficiency | 95.5% |
| Design | Semi-regulated |
| Mounting | DIN Rail |
| Dimensions | 96 x 124 x 159mm (W x H x D) |
| Weight | 1.4kg |
| Operating Temperature | -25°C to +70°C |
| Power Reserve | 25% |
| Output Ripple | <1500mVpp |
| Overvoltage Protection | 29.9VDC max |
| Connection Type | Screw terminals |
| Approvals | UL 508, CE, IEC 60950 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2A peak
Manufacturer Puls
Part Number XT40.242
Shelf F-11
Model XT40.242
MPN XT40.242
Type Power Supply
