Product Description

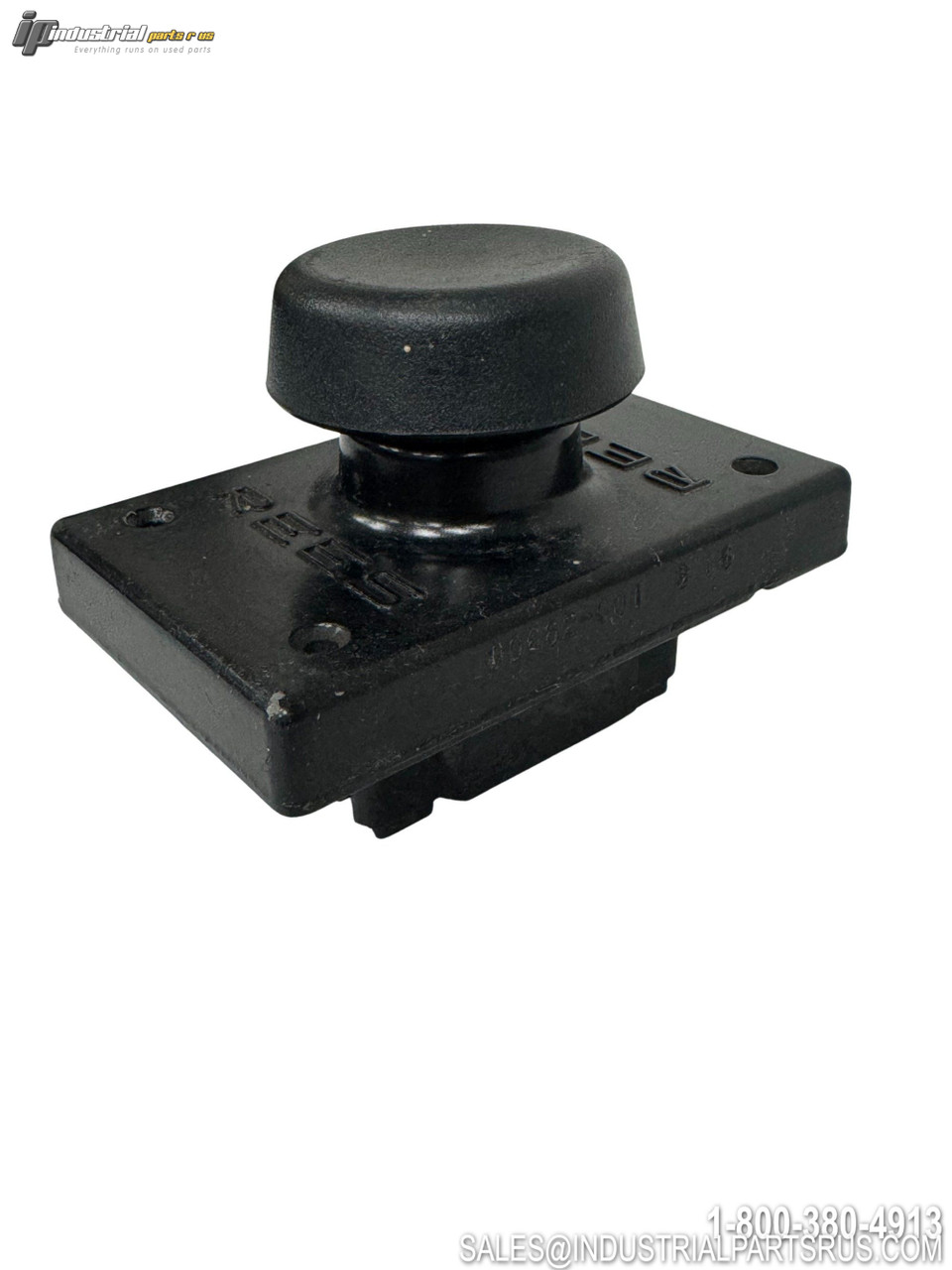

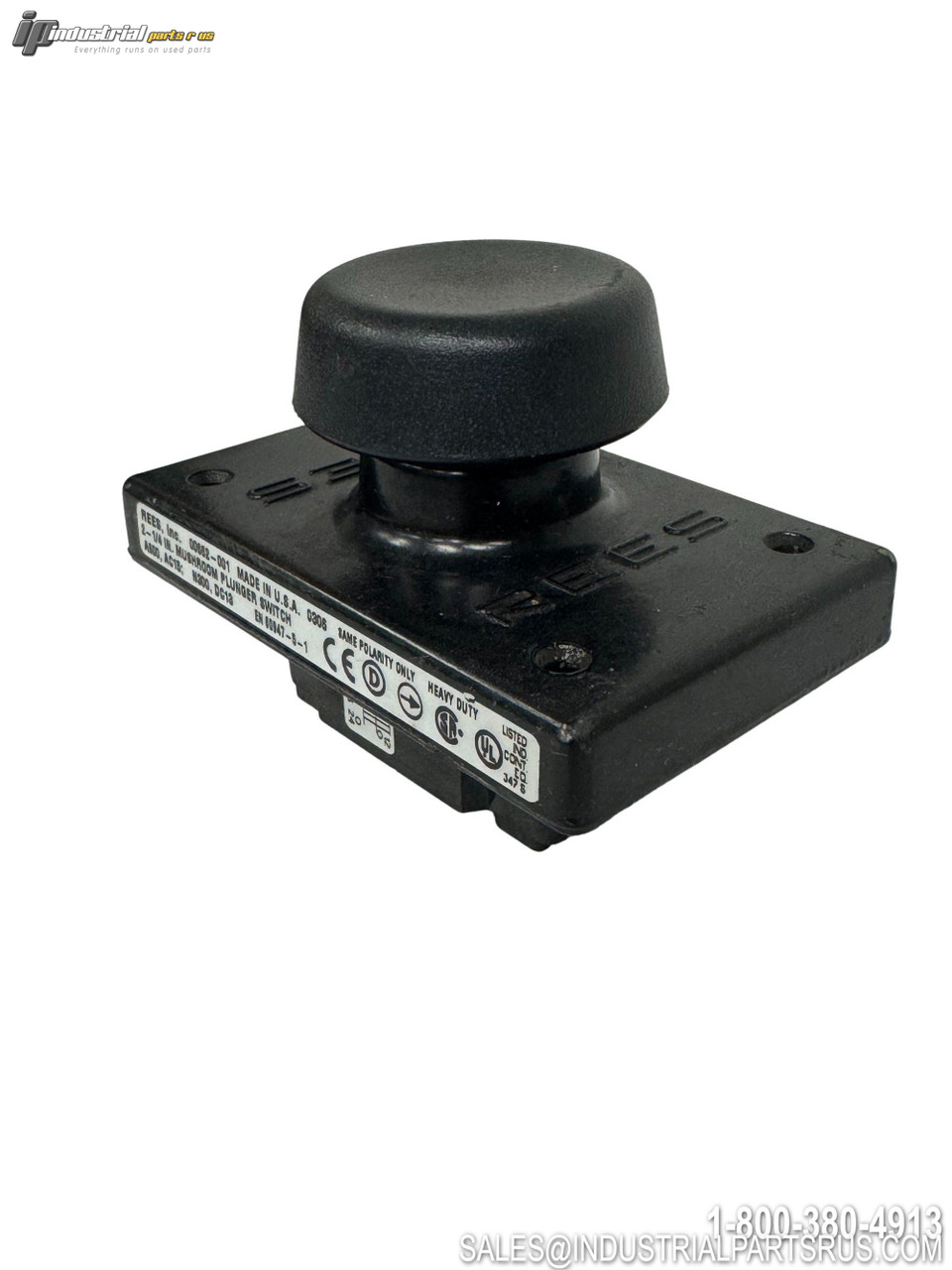

The Rees 00662-001 is a hand operated, heavy duty control circuit device designed for use with electromagnetic equipment. The black mushroom shaped plunger is molded from DuPont Delrin 100ST Acetal for improved impact resistance and improved colors. The black cover is painted with a dry powder paint and made from die-cast zinc.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rees |
| Model/Part Number | 00662-001 |
| Type | Push Button |
| Size | 2-1/4 inch |
| Contact Configuration | 1NC-1NO (SPDT) |
| Contact Type | Slow-Make/Slow-Break |
| Operating Mode | Momentary |
| Actuator Type | Mushroom Plunger |
| Plunger Color | Black |
| Cover Color | Black |
| Current Rating AC | 6A at 110-120VAC, 3A at 220-240VAC, 1.55A at 440-480VAC, 1.2A at 550-600VAC |
| Current Rating DC | 2.2A at 115-125VDC, 1.1A at 230-250VDC |
| Terminal Type | 14 AWG Stranded Wire |
| NEMA Rating | 12/13 |
| IP Rating | IP65 |
| Operating Temperature | -32°F to 131°F (-36°C to 55°C) |
| Plunger Material | DuPont Delrin 100ST Acetal |
| Cover Material | Die-Cast Zinc, Powder Coated |
| Contact Finish | Gold Plated |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | 4.3 lbs |
| Positive Opening Contact | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Rees
Enclosure Type 12/13
Part Number 00662-001
Shelf K-64 Tub 1
Model 00662-001
MPN 00662-001
Type Push Button
