Product Description

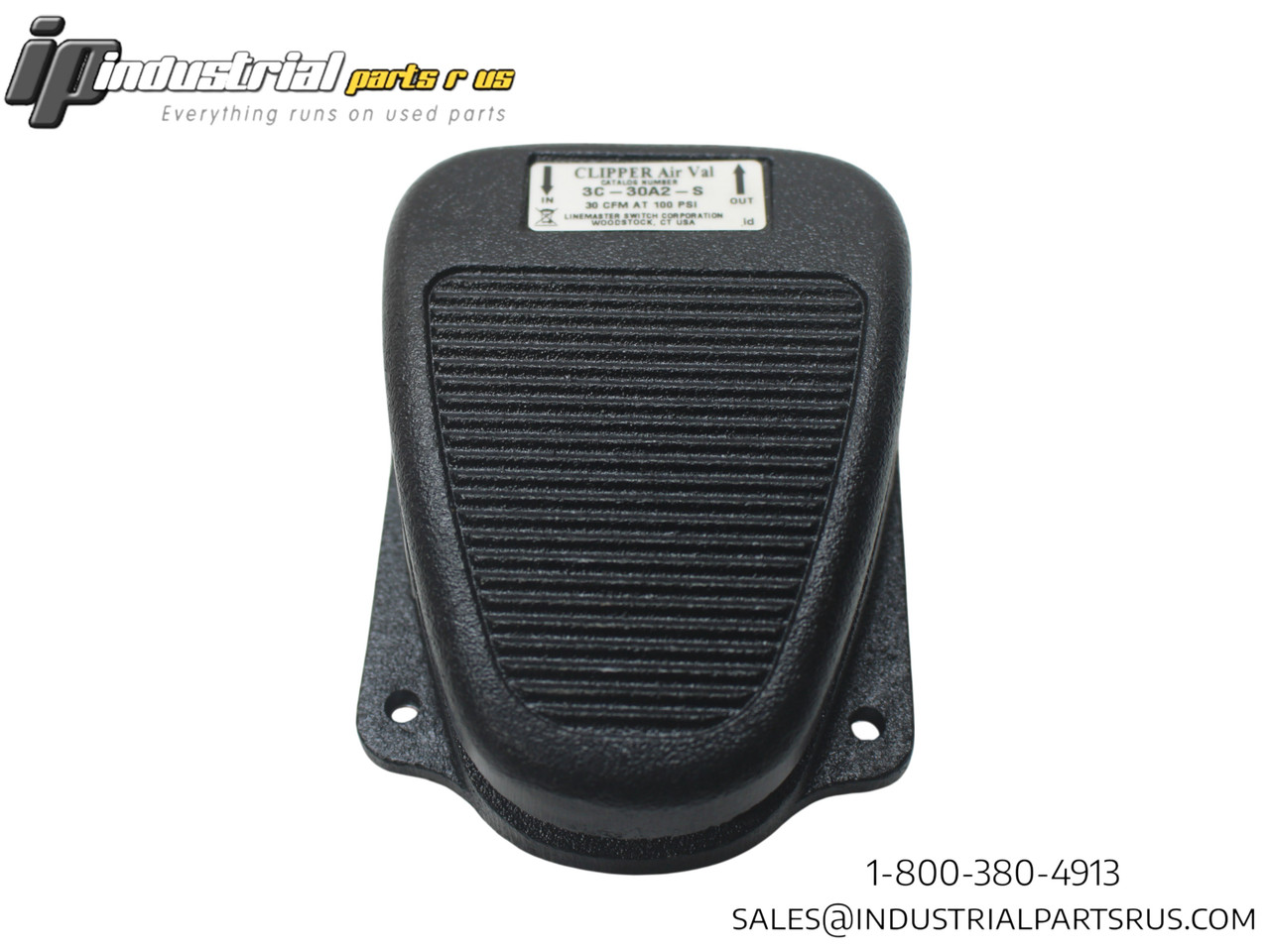

The Line master 3C-30A2-S is a heavy-duty pneumatic foot switch from the AirVal Clipper series, designed for industrial applications requiring reliable foot-operated air valve control. The LINEMASTER AirVal foot switches were designed for ease of use and long life. The 3C-30A2-S is a 3-way 1NO Foot Switch with rugged cast iron housing and air exhausts around plunger.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Line master |
| Model/Part Number | 3c-30a2-s |
| Manufacturer | Linemaster Switch Corporation |
| Series | Clipper |
| Type | Pneumatic AirVal Foot Switch |
| Control Function | 3-Way Momentary |
| Air Flow | 30 CFM at 100 PSI |
| Exhaust Flow | 25 CFM at 100 PSI |
| Maximum Line Pressure | 150 PSI |
| Operating Force | 10 lb |
| Port Size | 1/8-27 NPT (Input & Output) |
| Housing Material | Cast Iron, Black |
| Dimensions (W x L x H) | 3.45 x 4.56 x 1.78 in (87.6 x 115.8 x 45.2 mm) |
| Operating Temperature | -18 to 55°C (0 to 131°F) |
| Unit Weight | 4.75 lb |
| Mounting | Non-Skid Base, 2 Bolt Holes |
| Construction Style | Open, General Purpose |
| Valve Construction | Non-ferrous body, Stainless steel plunger, PTFE coated Buna-N O-rings |
| Replacement Interior Valve | 3-30A2-SI |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Non-Skid Base, 2 Bolt Holes
Country/Region of Manufacture United States
Material Cast Iron, Black
Manufacturer Line Master
Part Number 3C-30A2-S
Series Clipper
Shelf K-44
Model 3C-30A2-S
MPN 3C-30A2-S
Type Foot Switch
