Product Description

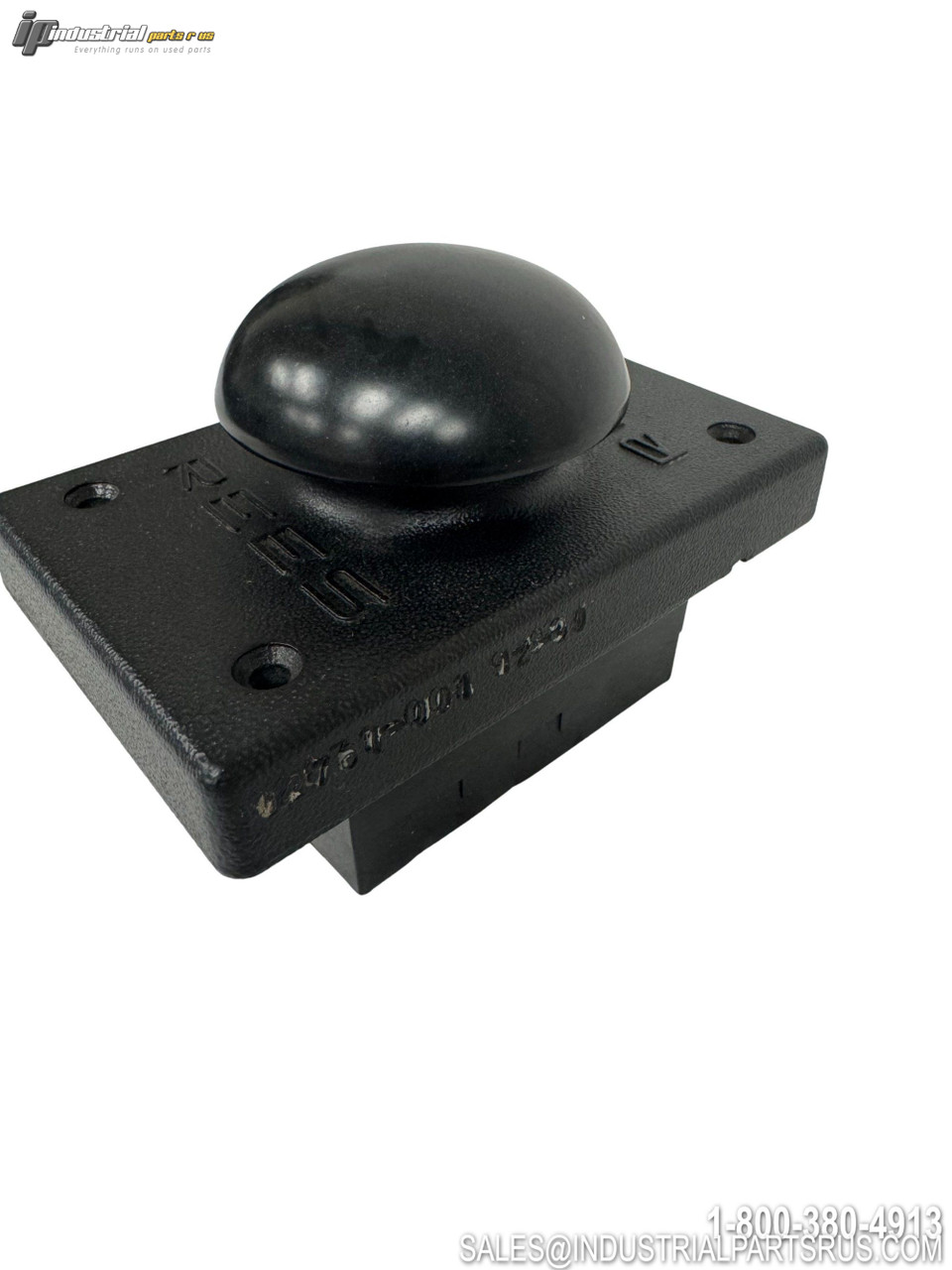

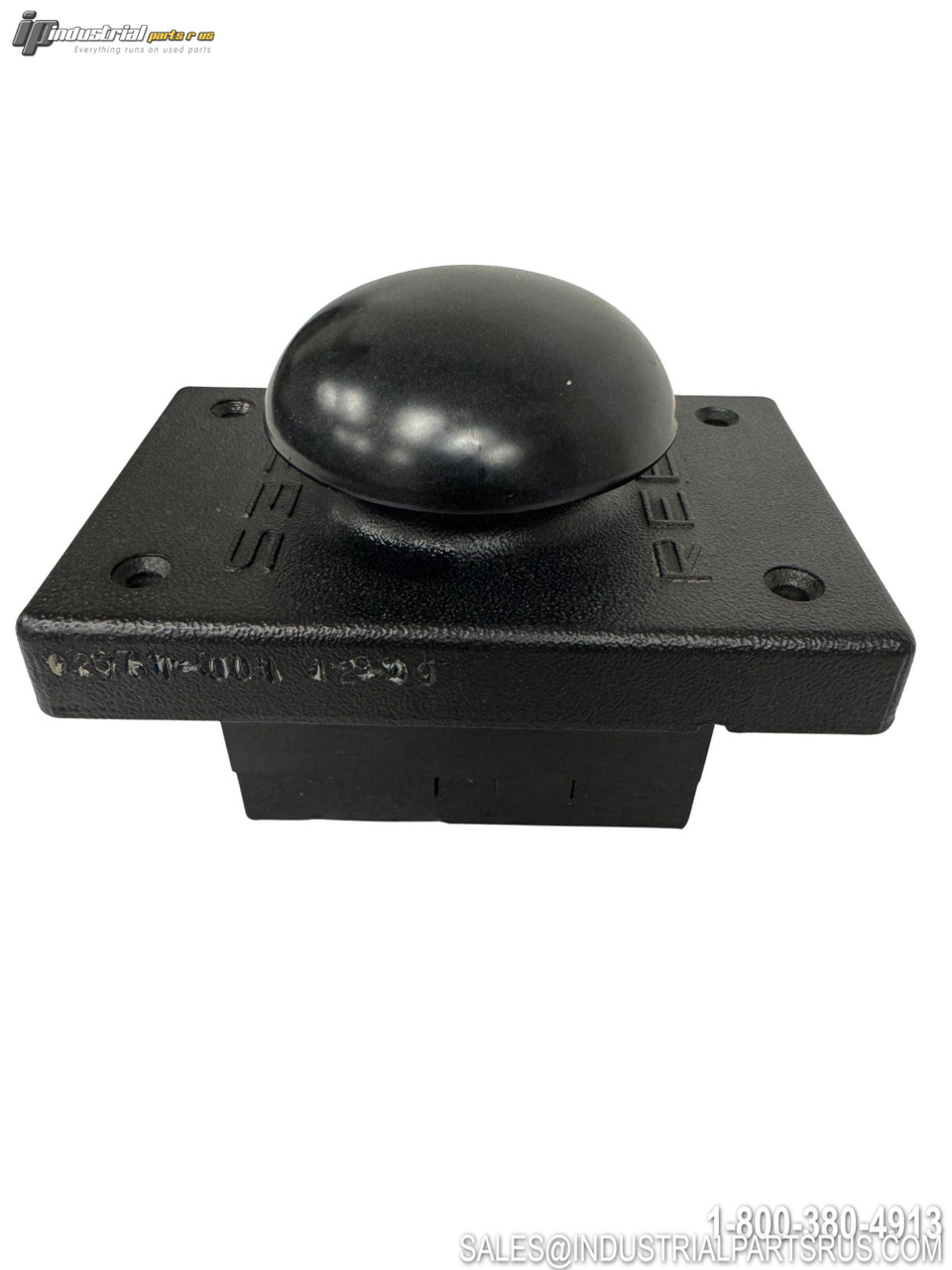

The Rees 02761-001 is a heavy duty, hand operated control circuit device designed for use with electromagnetic equipment. This push button switch features a 2.25 inch round mushroom plunger design with 2NO-2NC snap action contact configuration and momentary operation. This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as "RUN", "START" or "STOP" buttons, with its rugged construction and long term reliability making it extremely well suited for various industrial/commercial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rees |
| Model/Part Number | 02761-001 |
| Type | Mushroom Head Push Button Switch |
| Size | 2.25 Inch |
| Contact Configuration | 2NO-2NC (4PST) |
| Contact Type | Snap Action |
| Operation Type | Momentary |
| Contact Rating AC | 600 VAC 1.2 Ampere |
| Contact Rating DC | 250 VDC 1.1 Ampere |
| Operating Force | 3.7 lbs |
| Enclosure Rating | NEMA 12/13, IP65 |
| Material - Housing | Die-Cast Zinc |
| Material - Plunger | Powder Painted Zinc Die-Cast |
| Color | Black |
| Contact Plating | Gold Plated |
| Wire Gauge Capacity | 2 x #14 AWG Stranded |
| Mechanical Life | 1,000,000 Operations |
| Certifications | UL 508, CSA C22.2, CE |
| Mounting Type | Chassis Mount |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Rees
Enclosure Type NEMA 12/13, IP65
Part Number 02761-001
Shelf K-64 tub-3
Model 02761-001
MPN 02761-001
Type Push Button
