Product Description

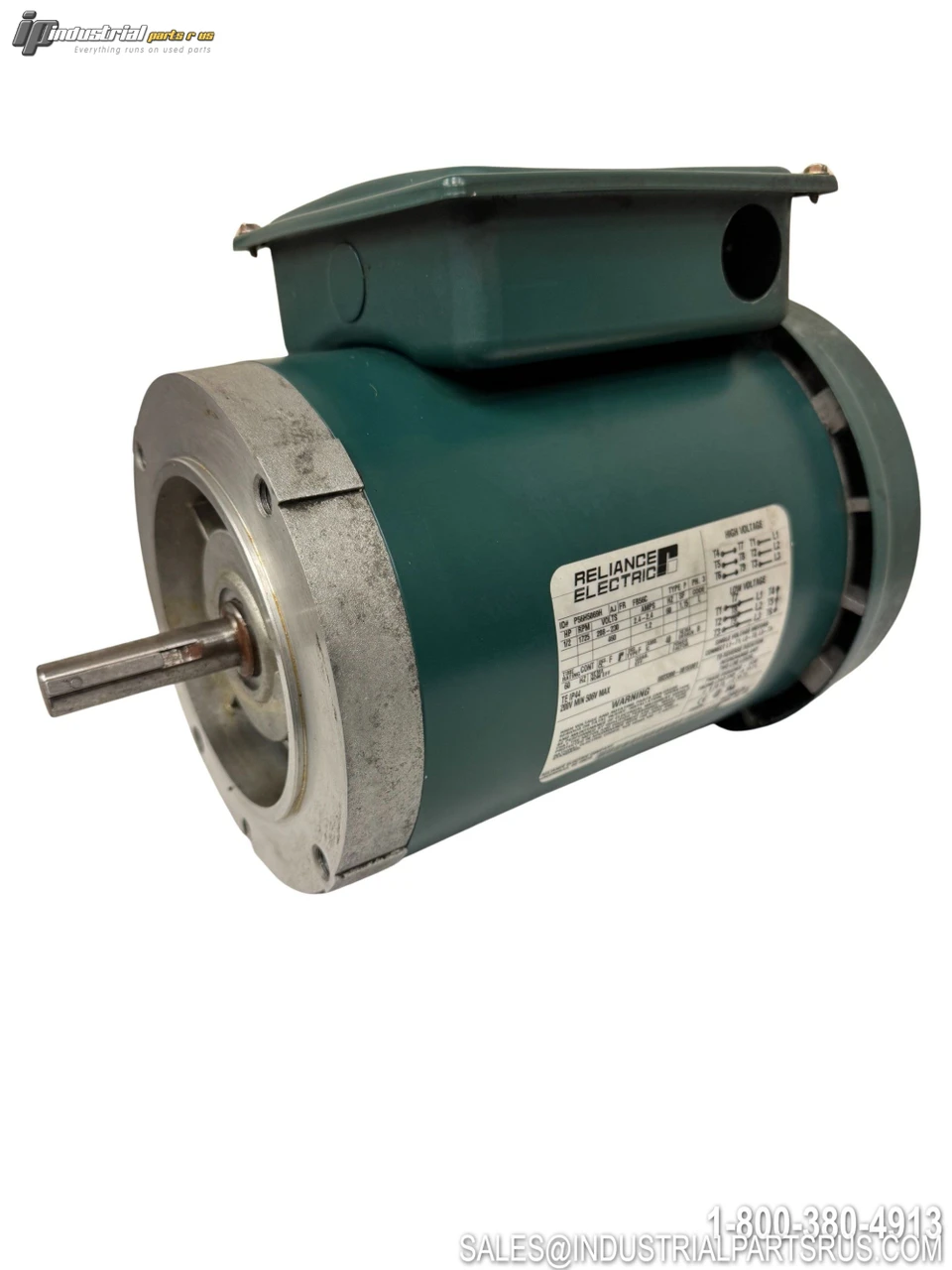

The Reliance Electric P56H5069H is a Duty Master series three-phase AC induction motor rated at 1/2 horsepower and 1725 RPM. It features a totally enclosed fan-cooled (TEFC) EC56C C-face frame design, making it suitable for general industrial applications including pumps, conveyors, fans, and gear reducers. The motor accepts a dual voltage input of 208-230V or 460-480V at 60 Hz and draws 2.2 amps at low voltage or 1.1–1.2 amps at high voltage. Rated full-load torque is 1.52 lb·ft with a starting torque of 3.04 lb·ft. The motor carries an IP44 protection rating, guarding against solid objects greater than 1mm and water splash from any direction.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Reliance Electric |
| Model / Part Number | P56H5069H |
| Product Series | Duty Master |
| Motor Type | AC Induction Motor |
| Horsepower | 1/2 HP |
| Base Speed (RPM) | 1725 RPM |
| Synchronous Speed | 1800 RPM |
| Number of Poles | 4 |
| Voltage | 208-230V / 460-480V |
| Full Load Amps | 2.2A (208-230V) / 1.1–1.2A (460-480V) |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Frame Size | EC56C |
| NEMA Frame Suffix | C (C-Face) |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting Type | C-Face Flange |
| Shaft Diameter | 5/8 in |
| Shaft Type | Keyed |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| Current Type | AC |
| Reversible | Yes |
| Type Code | Type P |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2.2A (208-230V) / 1.1-1.2A (460-480V)
Manufacturer Reliance Electric
Shaft Diameter 5/8 in
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Part Number P56H5069H
Shelf H-15
Model P56H5069H
MPN P56H5069H
Type AC Motor
