Product Description

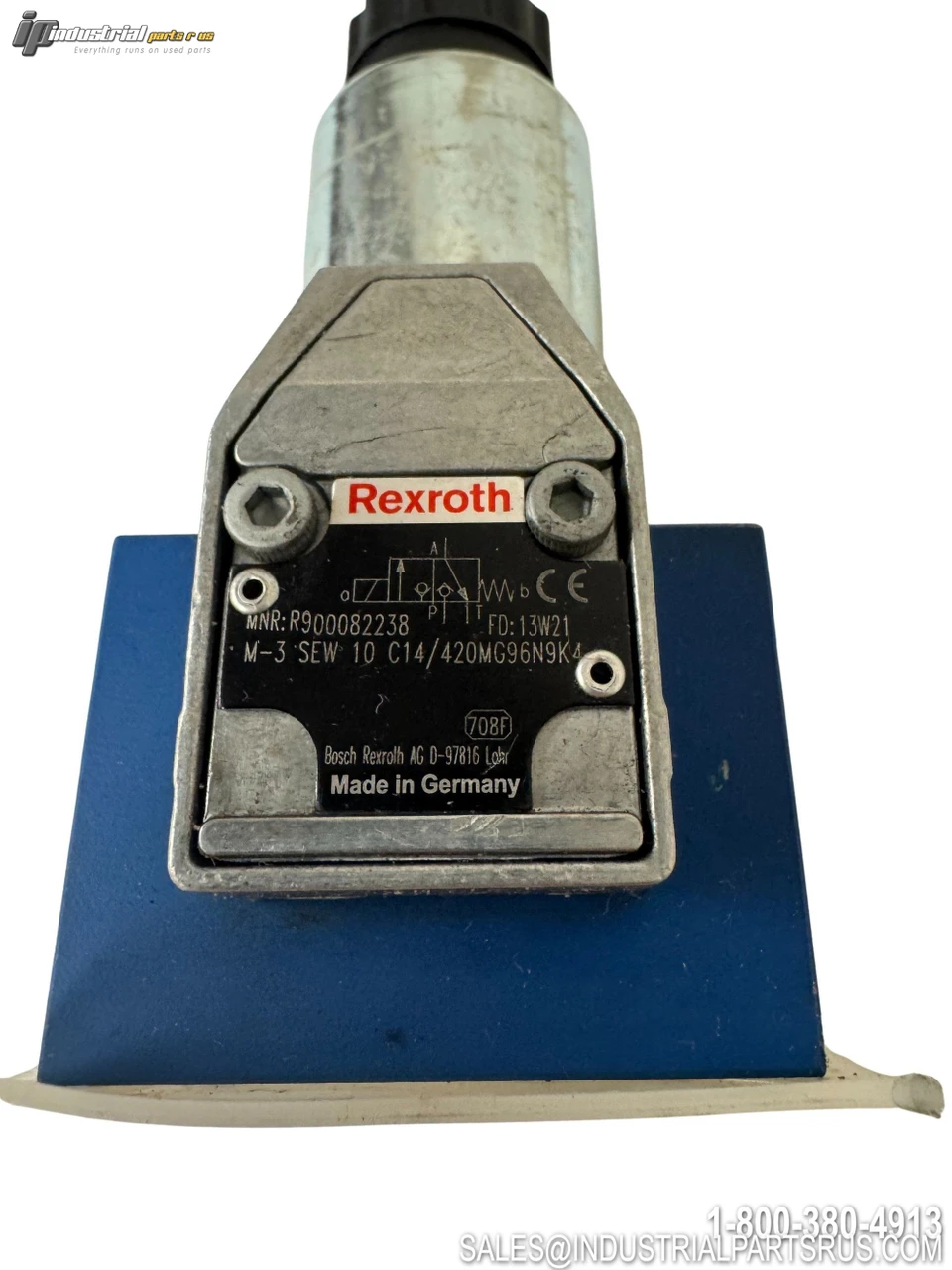

The Bosch Rexroth R900082238 (model M-3SEW 10 C1X/420MG96N9K4) is a direct-operated 3/2-way solenoid directional poppet valve designed for precise control of the start, stop, and direction of hydraulic fluid flow in high-pressure industrial systems. This Size 10 (NG10) valve features a hardened seat-type poppet design that provides leakage-free isolation of blocked connections, making it ideal for demanding hydraulic circuit applications. It incorporates an air-gap DC solenoid with a detachable coil that can be rotated 90° and replaced without opening the pressure-tight chamber. Rated to 420 bar (6,100 psi) with a 96VDC coil, it mounts to ISO 4401-05 / CETOP 5 / D05 subplates.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bosch Rexroth |
| Model / Part Number | R900082238 |
| Description Code | M-3SEW 10 C1X/420MG96N9K4 |
| Valve Type | Direct-Operated Solenoid Directional Poppet Valve |
| Way Configuration | 3/2-Way |
| Nominal Size | Size 10 (NG10) |
| Component Series | 1X |
| Maximum Operating Pressure | 420 bar [6,100 psi] |
| Maximum Flow Rate | 40 l/min [10.6 US gpm] |
| Coil Voltage | 96VDC |
| Power Consumption | 30 W |
| Voltage Tolerance | ±10% of nominal voltage |
| Solenoid Type | Air-Gap DC with Detachable Coil |
| Coil Rotation | 90° without opening pressure chamber |
| Mounting Type | Subplate (Sandwich Plate) |
| Porting Standard | ISO 4401-05-04-0-05 / NFPA T3.5.1 R2-2002 D05 / DIN 24340 Form A / CETOP-RP 121H |
| Seal Material | NBR (Nitrile Butadiene Rubber) |
| Ambient Temperature Range | –30 to +50°C [–22 to +122°F] (NBR seals) |
| Maximum Coil Temperature | 150°C [302°F] |
| Weight (3/2 Version) | 2.0 kg [4.41 lbs] |
| Closing Element | Hardened Ball/Spool Poppet |
| Electrical Connection | Individual Plug-In Connector (K4) |
| Leakage | Zero Leakage (Leakage-Free Seat Design) |
| Series / Product Family | M-3SEW (M-.SEW) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Equipment Type Hydraulic Valve
Manufacturer Rexroth
Part Number R900082238
Shelf K-33
Model R900082238
MPN R900082238
Type Hydraulic Valve
