Product Description

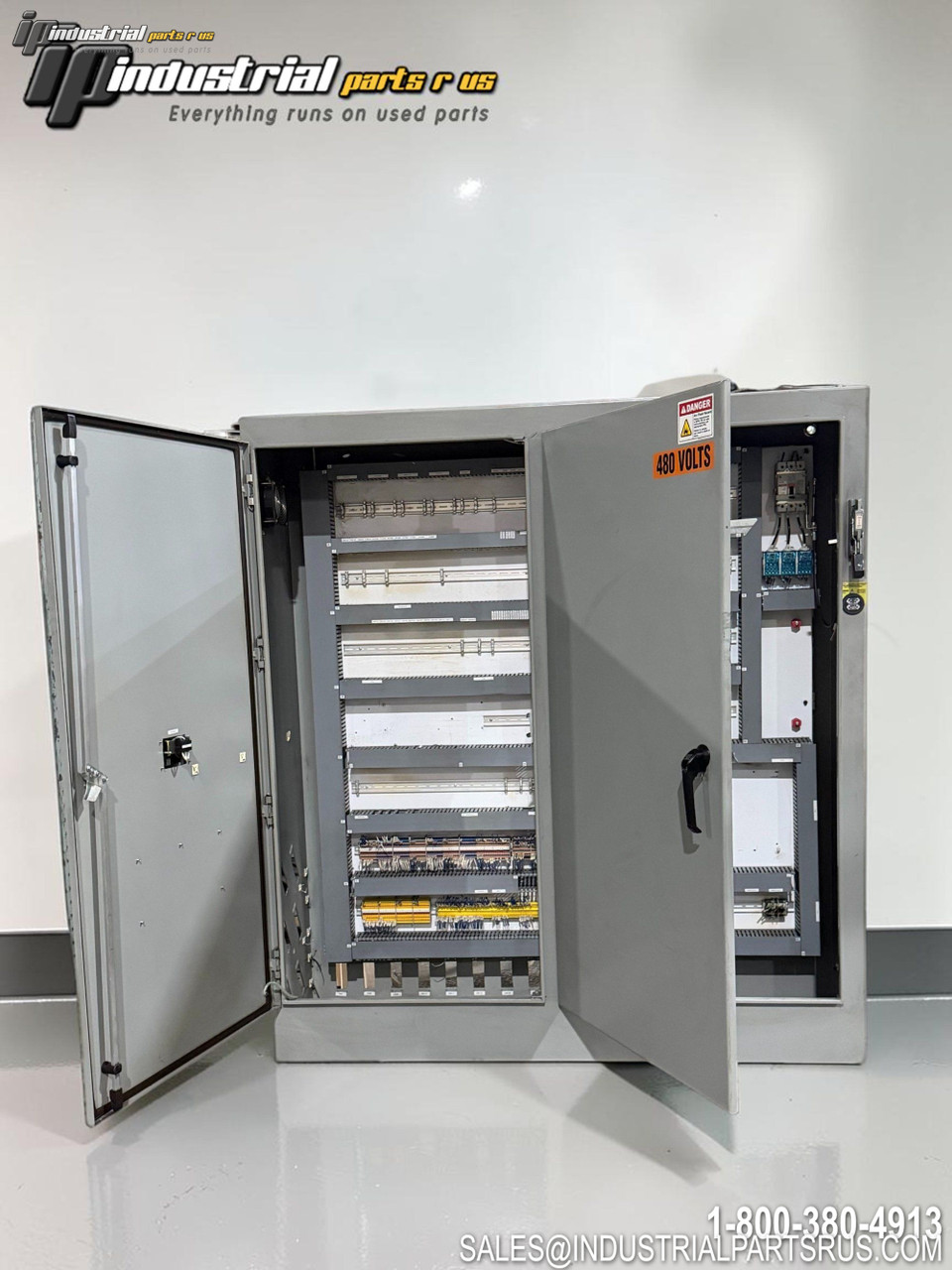

The Saginaw Control & Engineering SCE-72XM6618 is a heavy-duty, two-door XM series freestanding disconnect enclosure constructed from 0.125-inch carbon steel with continuously welded and ground-smooth seams. Designed to house electrical equipment and provide protection from dirt, dust, oil, and water, it accommodates most standard-type disconnects with a right-side flange mount. The enclosure features a 3-point latching mechanism, concealed hinges, heavy-duty lifting eyes, removable centerposts for easy panel installation, and a pour-in-place oil- and water-resistant gasket, with an ANSI-61 gray powder coat finish inside and out and a powder-coated white subpanel included.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SCE (Saginaw Control & Engineering) |
| Model / Part Number | SCE-72XM6618 |
| Product Type | 2-Door XM Freestanding Disconnect Enclosure |
| Nominal Height | 72 in |
| Nominal Width | 65.75 in (nominal 66 in) |
| Nominal Depth | 18 in |
| NEMA Rating | NEMA 3R / 12 / 13 |
| IP Rating | IP55 |
| Material | 0.125 in Carbon Steel |
| Finish / Color | ANSI-61 Gray Powder Coat (inside & out) |
| Mounting Style | Freestanding |
| Number of Doors | 2 |
| Disconnect Mounting | Right Flange |
| Latch / Handle | 3-Point Latching, Black Zinc Die Cast Coinproof/Padlocking Handle |
| Hinges | Concealed |
| Gasket | Pour-in-Place Oil & Water Resistant |
| Subpanel Included | Yes — SCE-64P64 Bent Powder-Coated White Subpanel |
| Vented | No |
| Lifting Eyes | Heavy Duty, Anchored into Reinforced Top |
| Body Stiffeners | Yes (for extra rigidity) |
| Estimated Ship Weight | 790 lbs |
| Catalog Page | 156 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Sce
Enclosure Type NEMA 3R / 12 / 13
Part Number SCE-72XM6618
Shelf Freight
Model SCE-72XM6618
MPN SCE-72XM6618
Type Electrical Enclosure
