Product Description

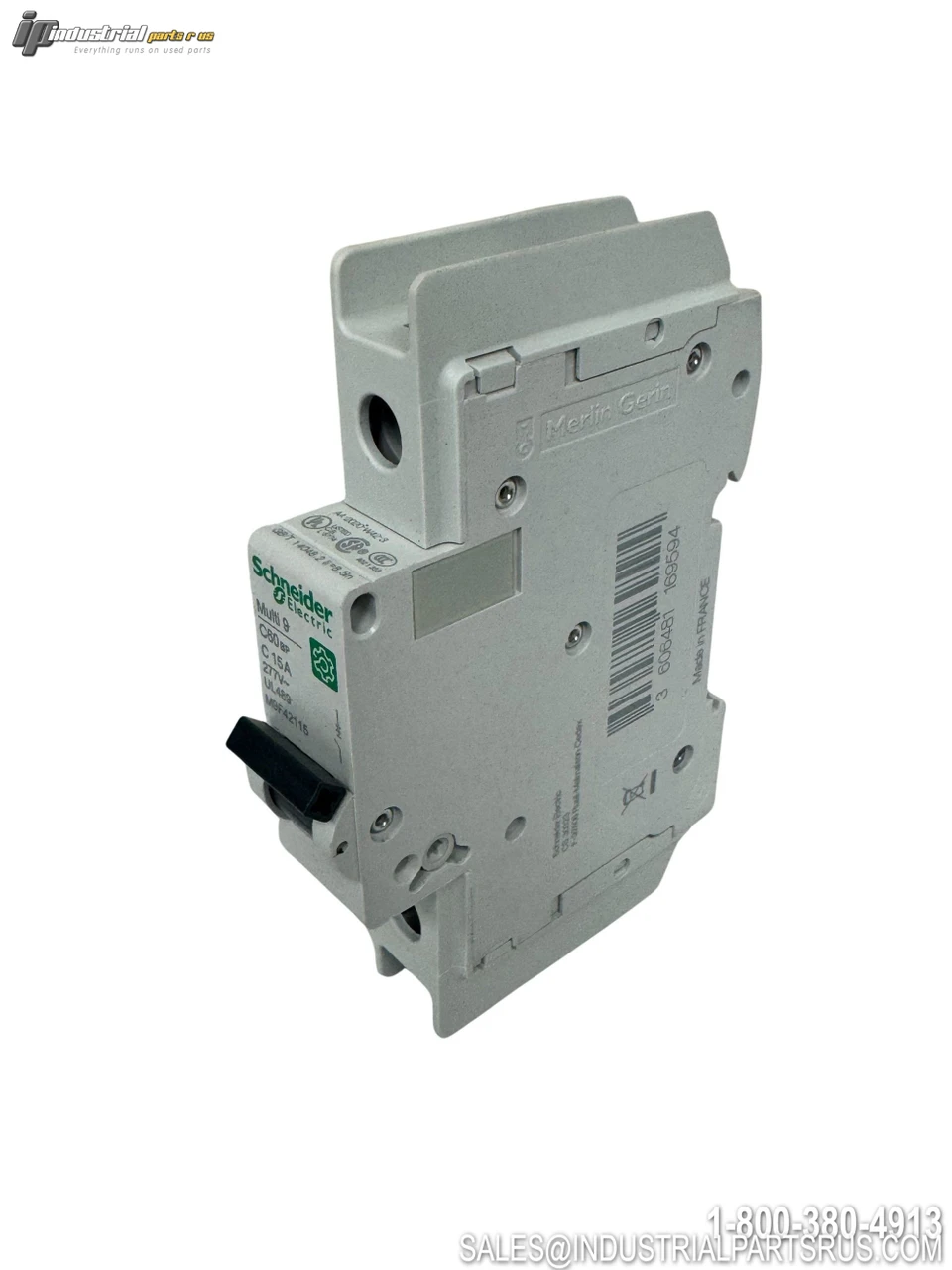

The Schneider Electric Multi 9 C60BP is a low-voltage, multi-standard miniature circuit breaker (MCB) designed for distribution and branch-circuit protection. It is available in 1-pole, 2-pole, and 3-pole configurations with various rated-current and trip-curve options. The C60BP family uses thermal-magnetic trip technology and is available with C, D, and Z tripping curves, depending on the specific catalog number. It is designed for OEM equipment, control panels, machinery, and electrical distribution applications and provides protection against short-circuit and overload currents. Certain configurations also provide protection against earth-leakage faults.</p> <h3><strong>Technical Specifications</strong></h3> <table border="1" cellpadding="8" cellspacing="0" style="border-collapse: collapse; width: 100%; max-width: 700px; margin: 20px 0; border: 1px solid #ccc;"> <thead> <tr style="background-color: #f5f5f5;"> <th style="text-align: left; padding: 10px; border: 1px solid #ccc; font-weight: bold;">Specification</th> <th style="text-align: left; padding: 10px; border: 1px solid #ccc; font-weight: bold;">Value</th> </tr> </thead> <tbody> <tr><td style="padding: 8px; border: 1px solid #ddd;">Brand</td><td style="padding: 8px; border: 1px solid #ddd;">Schneider Electric</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Product Family</td><td style="padding: 8px; border: 1px solid #ddd;">Multi 9</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Product Name</td><td style="padding: 8px; border: 1px solid #ddd;">Multi9 C60</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Device Short Name</td><td style="padding: 8px; border: 1px solid #ddd;">C60BP</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Product Type</td><td style="padding: 8px; border: 1px solid #ddd;">Miniature Circuit Breaker (MCB)</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Protection Technology</td><td style="padding: 8px; border: 1px solid #ddd;">Thermal-Magnetic</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Application</td><td style="padding: 8px; border: 1px solid #ddd;">Distribution, OEM Equipment, Control Panels, Industrial Machinery</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Number of Poles</td><td style="padding: 8px; border: 1px solid #ddd;">1P, 2P, or 3P — depending on catalog number</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Rated Current</td><td style="padding: 8px; border: 1px solid #ddd;">0.5 A to 63 A — depending on catalog number</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Trip Curves</td><td style="padding: 8px; border: 1px solid #ddd;">C, D, or Z — depending on catalog number</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Mounting</td><td style="padding: 8px; border: 1px solid #ddd;">35 mm DIN Rail, Clip-On</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Standards</td><td style="padding: 8px; border: 1px solid #ddd;">UL 489, CSA C22.2 No. 5, IEC/EN 60947-2</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Rated Insulation Voltage (Ui)</td><td style="padding: 8px; border: 1px solid #ddd;">Up to 500 V AC on applicable configurations</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Impulse Withstand Voltage (Uimp)</td><td style="padding: 8px; border: 1px solid #ddd;">6 kV on applicable configurations</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Mechanical Endurance</td><td style="padding: 8px; border: 1px solid #ddd;">Up to 20,000 cycles</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Electrical Endurance</td><td style="padding: 8px; border: 1px solid #ddd;">Up to 10,000 cycles</td></tr> <tr><td style="padding: 8px; border: 1px solid #ddd;">Manufacturer</td><td style="padding: 8px; border: 1px solid #ddd;">Schneider Electric</td></tr> </tbody> </table> <p><strong>Note:</strong> The exact rated current, number of poles, trip curve, operating voltage, and breaking capacity must be verified from the complete Schneider Electric catalog number printed on the breaker. C60BP is a product family designation rather than a complete configuration-specific part number. Schneider lists C60BP versions with different ratings and configurations. {"fallbackMarkdown":"([Schneider Electric](https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":4428,"end_idx":4473,"safe_urls":["https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com"],"refs":[],"alt":"([Schneider Electric](https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","status":"done","error":null,"fallback_items":null,"style":null,"items":[{"title":"M9F42115 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 15A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","attribution":"Schneider Electric","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"M9F43203 - Miniature circuit breaker (MCB), Multi9 C60BP, 2P, 3A, D curve, 10kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Schneider Electric"},{"title":"M9F42303 - Miniature circuit breaker (MCB), Multi9 C60BP, 3P, 3A, C curve, 10kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Schneider Electric"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":0},{"turn_index":0,"ref_type":"search","ref_index":2},{"turn_index":0,"ref_type":"search","ref_index":5}],"hue":null,"attributions":null}]},"showLoginRequiredCard":false}</p> <p>We warranty all items for 30 days from the date of purchase.</p> :::{"fallbackMarkdown":"","reference":{"matched_text":" ","prefix":null,"start_idx":4550,"end_idx":4550,"safe_urls":[],"refs":[],"alt":"","prompt_text":null,"type":"sources_footnote","sources":[{"title":"M9F42115 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 15A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","attribution":"Schneider Electric"}],"has_images":false},"showLoginRequiredCard":false}
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | Multi 9 C60BP |
| Product Range | Multi 9 |
| Product Name | Multi 9 C60 |
| Device Short Name | C60BP |
| Product Type | Miniature Circuit Breaker (MCB) |
| Device Application | Distribution / Branch Circuit Protection |
| Available Poles | 1P, 2P, 3P |
| Trip Unit Technology | Thermal-Magnetic |
| Available Tripping Curves | C, D |
| Network Type | AC |
| Ue Operational Voltage | 240VAC |
| Ui Rated Insulation Voltage | 500VAC |
| Uimp Rated Impulse Withstand Voltage | 6 kV |
| UL 489 Rated Voltage | 277V (1P), 480Y/277V (2P, 3P) |
| Breaking Capacity (Icu) at 415VAC | 10 kA (IEC/EN 60947-2) |
| Breaking Capacity (Icu) at 240VAC | 20 kA |
| AIR at 240VAC (UL 489) | 14 kA |
| AIR at 480Y/277VAC (UL 489) | 10 kA |
| Mounting Type | DIN Rail Clip-On |
| Terminal Type | Tunnel Terminal (Top or Bottom) |
| Wire Range (Rigid) | 1–25 mm² (AWG 18–AWG 8) |
| Wire Range (Flexible with Ferrule) | 1–16 mm² (AWG 18–AWG 8) |
| Dimensions 1P (W x H x D) | 18 mm x 103 mm x 72 mm |
| Dimensions 2P (W x H x D) | 36 mm x 103 mm x 72 mm |
| Dimensions 3P (W x H x D) | 54 mm x 103 mm x 72 mm |
| DIN Rail Width per Pole | 2 pitches of 9 mm per pole |
| IP Rating (Terminals) | IP20 (IEC/EN 60529) |
| Pollution Degree | 3 |
| Color | Light Grey (RAL 7035) |
| Operating Temperature | -30°C to +70°C |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Standards Compliance | UL 489, EN/IEC 60947-2, EN/IEC 60898-1, GB 14048.2 |
| Application | OEM, Control Panel Builders, Distribution |
| Protection Functions | Short Circuit, Overload, Earth Leakage |
