Product Description
The Schneider Electric / Telemecanique LC1-D65008 is an industrial IEC magnetic contactor designed for switching and control applications. This unit is rated for 80A continuous current and up to 600VAC under the UL ratings shown on the unit.
This contactor is equipped with a Telemecanique auxiliary contact block providing 2 normally open (2NO) auxiliary contacts, identified as terminals 53-54 and 63-64. The exact coil/control voltage is not clearly visible in the provided photos and should be verified from the coil markings before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric / Telemecanique |
| Model / Part Number | LC1-D65008 |
| Product Type | IEC Magnetic Contactor |
| Product Family | Telemecanique / Schneider Electric |
| Number of Power Poles | 4 |
| Continuous Current Rating | 80A |
| Maximum UL Voltage | 600VAC |
| Rated Insulation Voltage (Ui) | 1000V |
| 1-Phase Motor Rating | 2 HP @ 240V |
| Auxiliary Contact Block | Telemecanique Add-On Auxiliary Contact Block |
| Auxiliary Contact Configuration | 2 N.O. (Normally Open) |
| Auxiliary Terminals | 53-54 and 63-64 |
| Auxiliary Contact Rating | 10A / Ui 500V |
| Coil / Control Voltage | Not Identified - Verify Coil Markings |
| Terminal Type | Screw Terminals |
| Standards | IEC 60947 / UL Listed |
| Country of Manufacture | France |
| Manufacturer | Schneider Electric / Telemecanique |

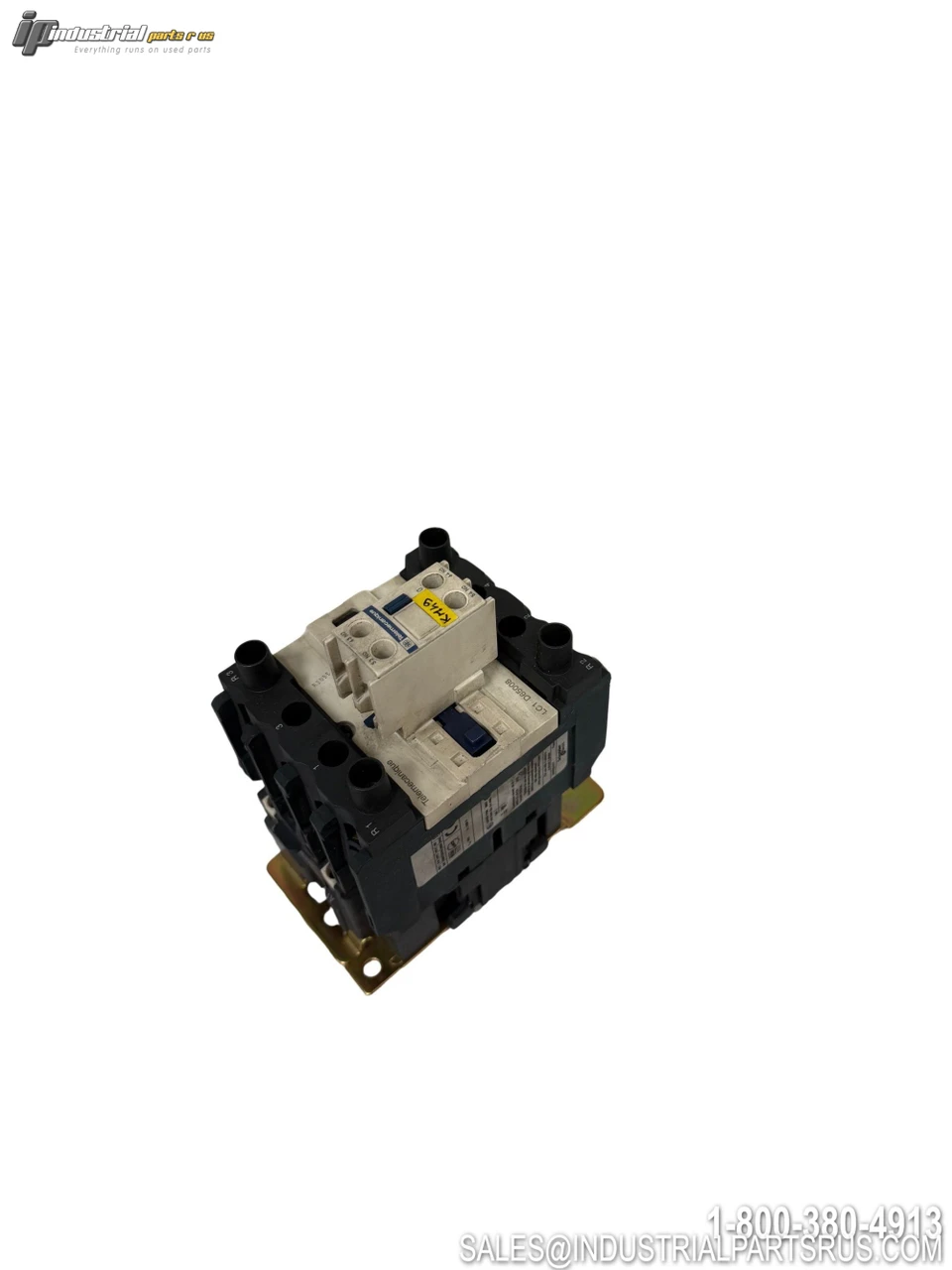

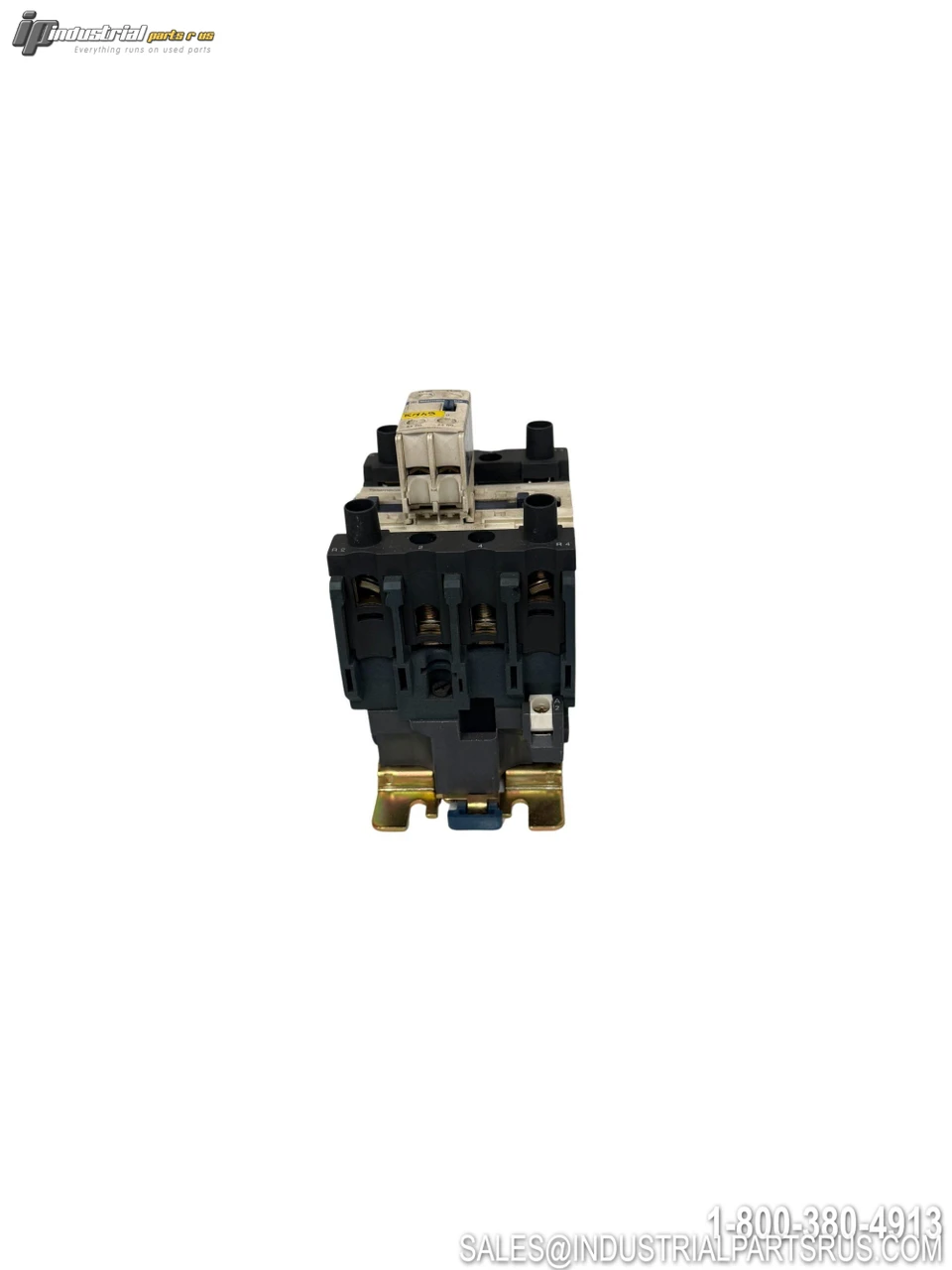

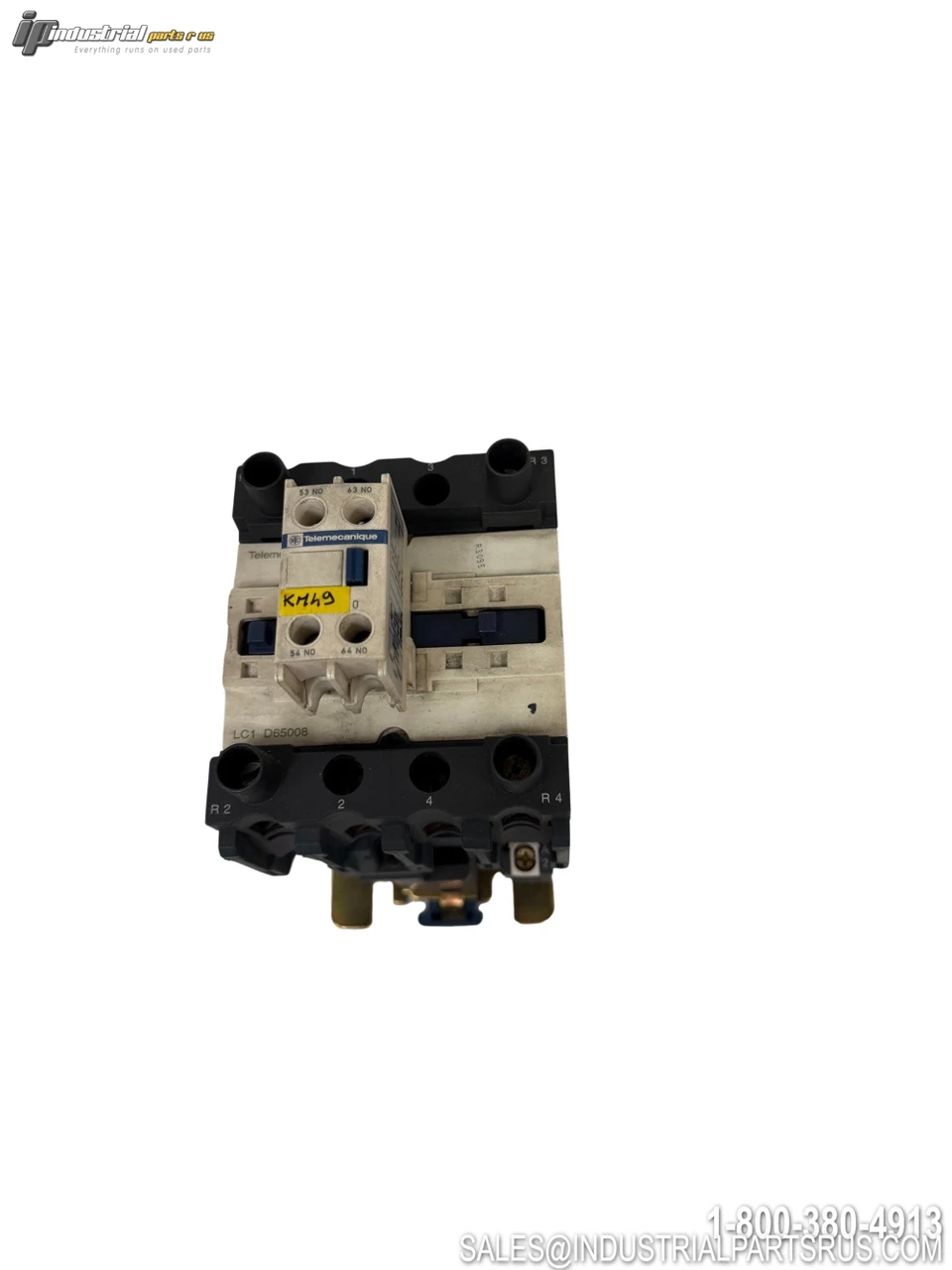

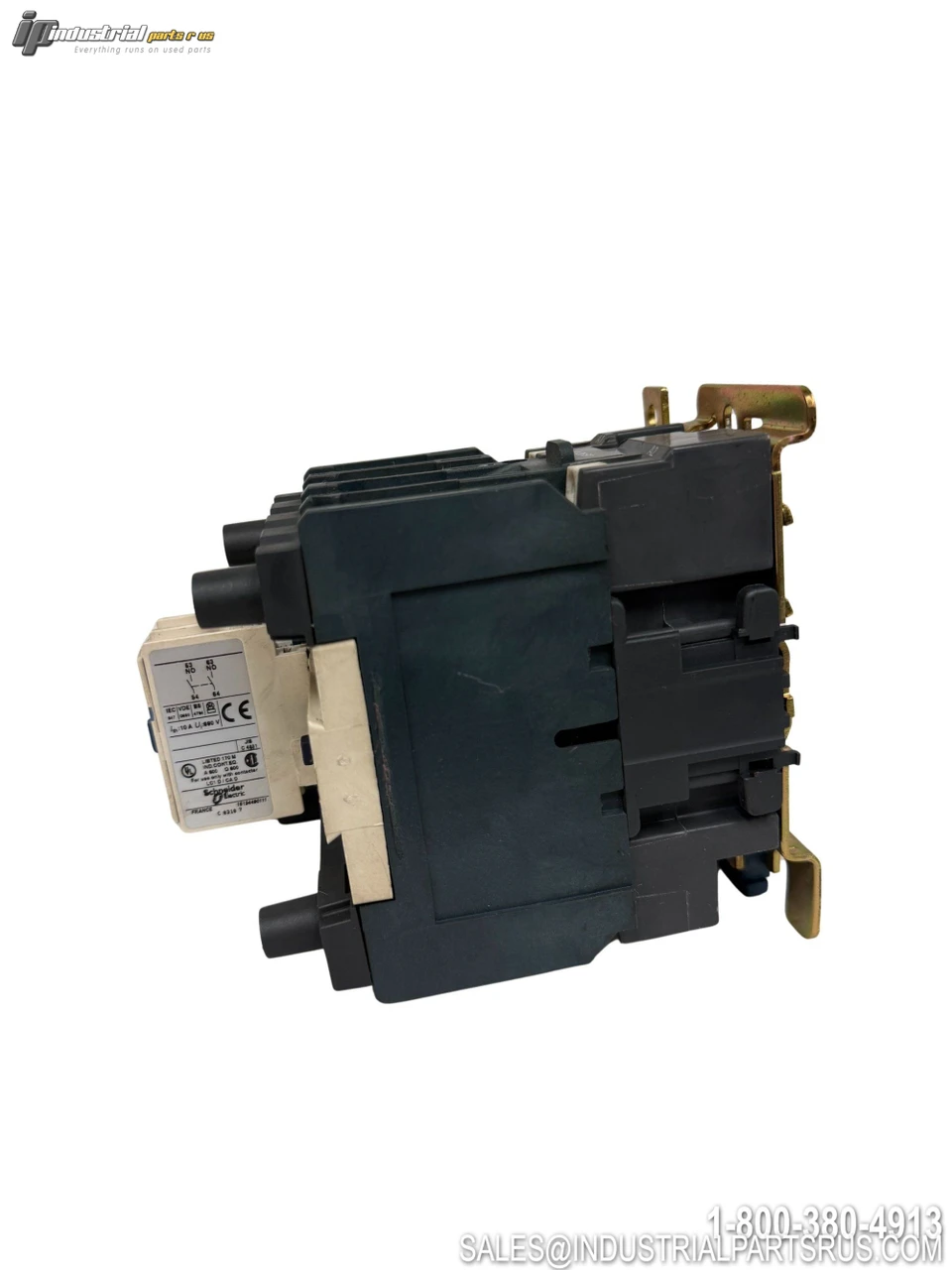

Important: This unit includes the auxiliary contact block shown in the photos with two normally open contacts (53-54 and 63-64). The exact coil/control voltage has not been confirmed from the visible markings. Please review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
