Product Description

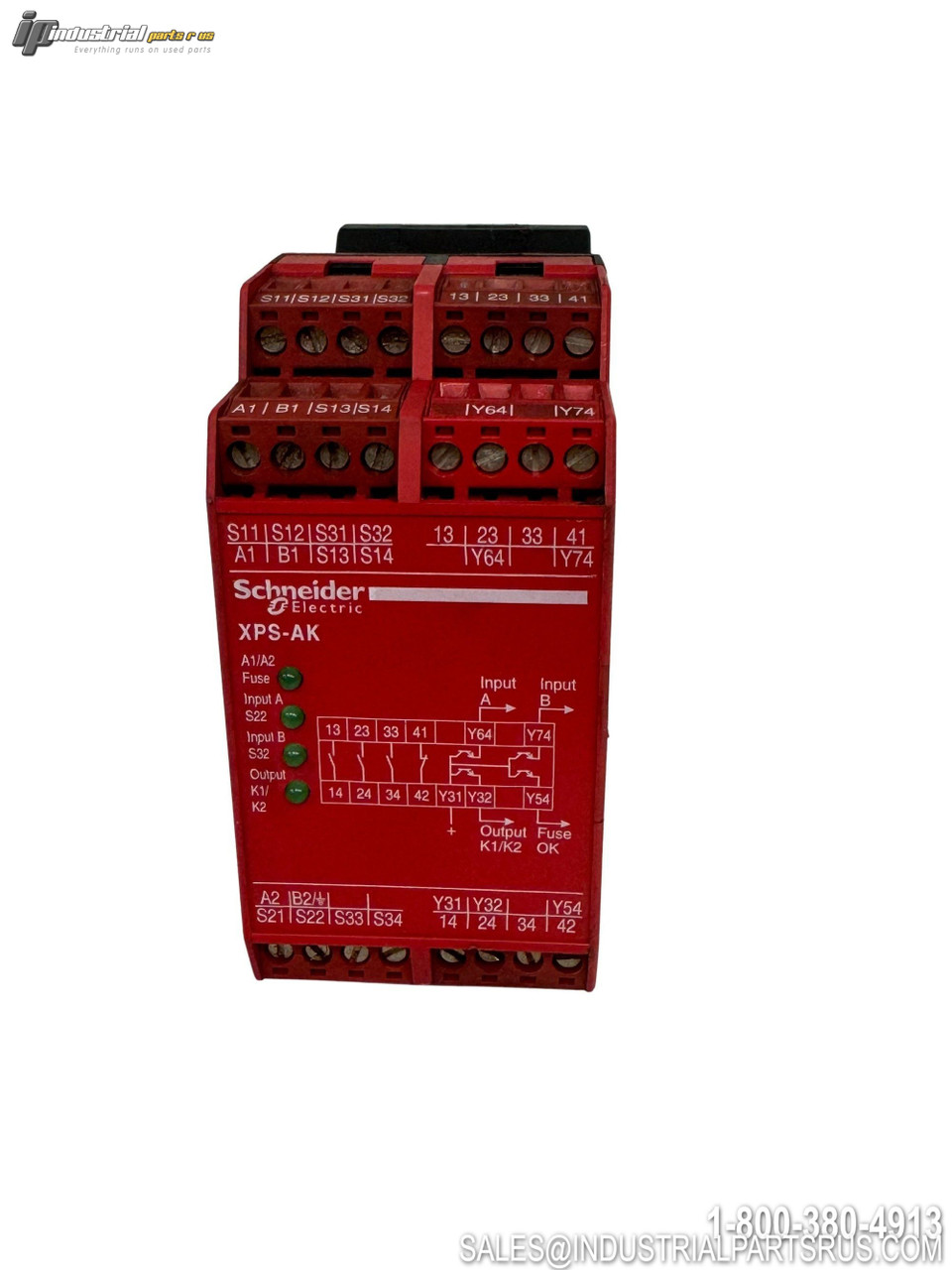

The Schneider XPSAK351144P is a Preventa XPS-AK safety relay module designed for monitoring emergency stop circuits, safety switches, sensing mats/edges, and type-4 light curtains. This safety relay meets Performance Level PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508, providing reliable safety monitoring for industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider |
| Model/Part Number | XPSAK351144P |
| Product Series | XPSAK Preventa |
| Supply Voltage | 120VAC/24VDC |
| Safety Outputs | 3 NO (Normally Open) |
| Auxiliary Outputs | 1 NC Relay, 4 Solid State |
| Contact Current | 1.5A |
| Contact Voltage DC | 24VDC |
| Contact Configuration | 3PST-NO |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminals |
| Dimensions (WxHxD) | 45mm x 99mm x 114mm |
| Operating Temperature | -10°C to 55°C |
| IP Rating | IP20, IP40 |
| Safety Rating | PL e/Category 4 (EN/ISO 13849-1) |
| SIL Rating | SILCL3 (EN/IEC 61508) |
| Reset Type | Automatic/Manual |
| Power Rating | 6VA |
| Frequency | 50/60Hz |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 1.5 A
Country/Region of Manufacture Indonesia
Full Load Amps 1.5A
Manufacturer Schneider
Part Number XPS-AK351144P
Shelf K-57
Model XPS-AK351144P
Coil Voltage 24 VDC
MPN XPS-AK351144P
Type Safety Relay
