Product Description

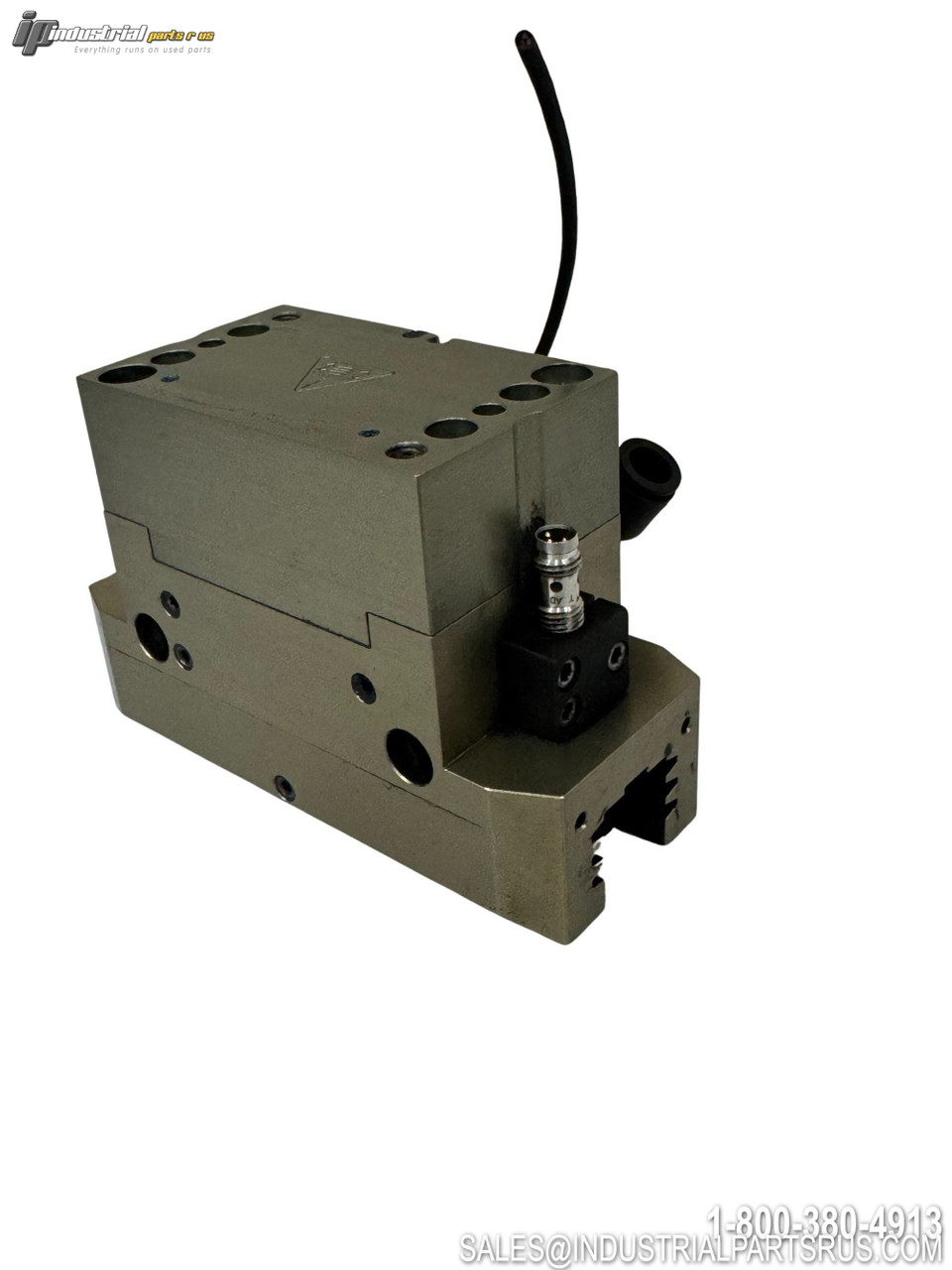

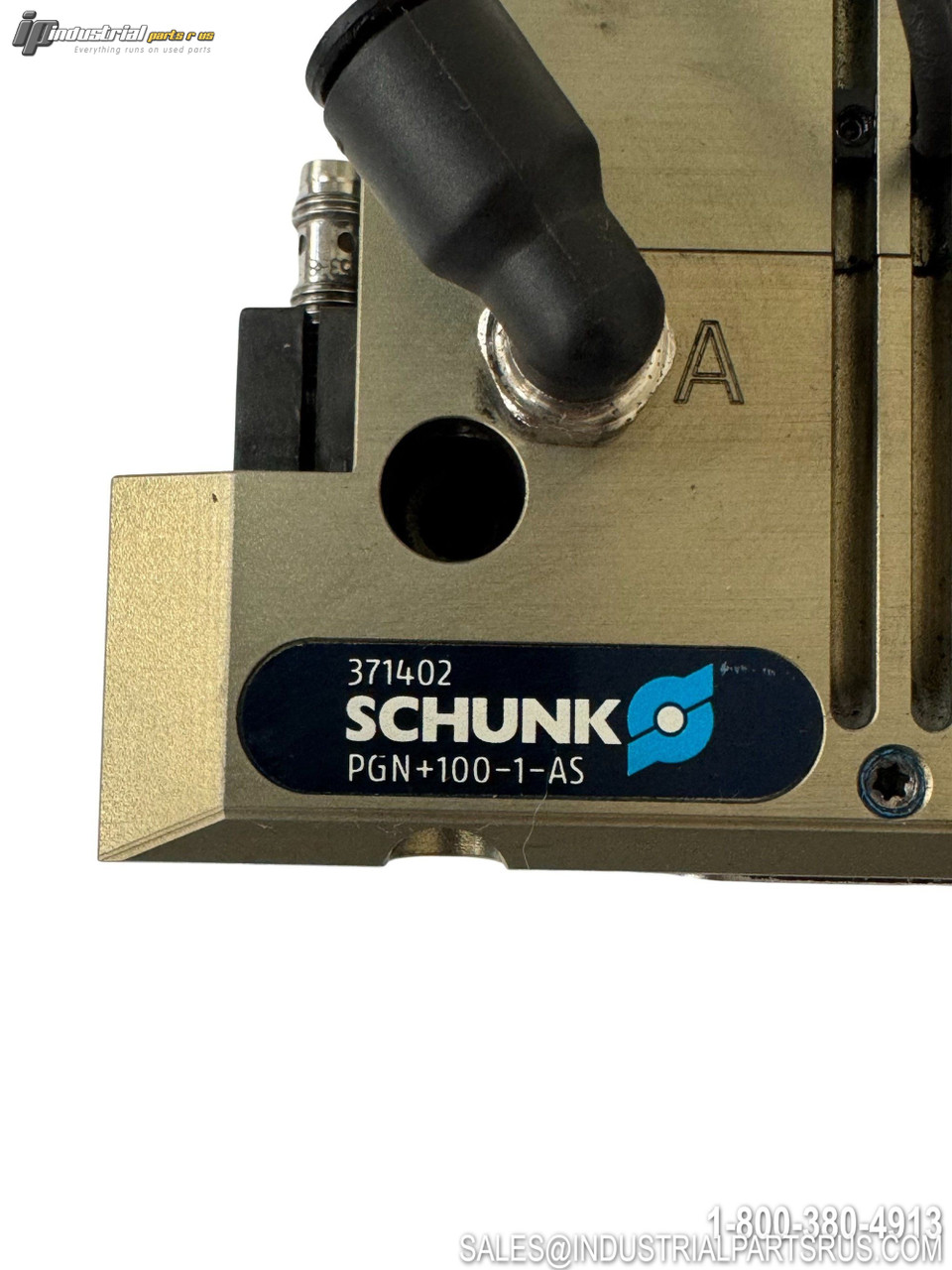

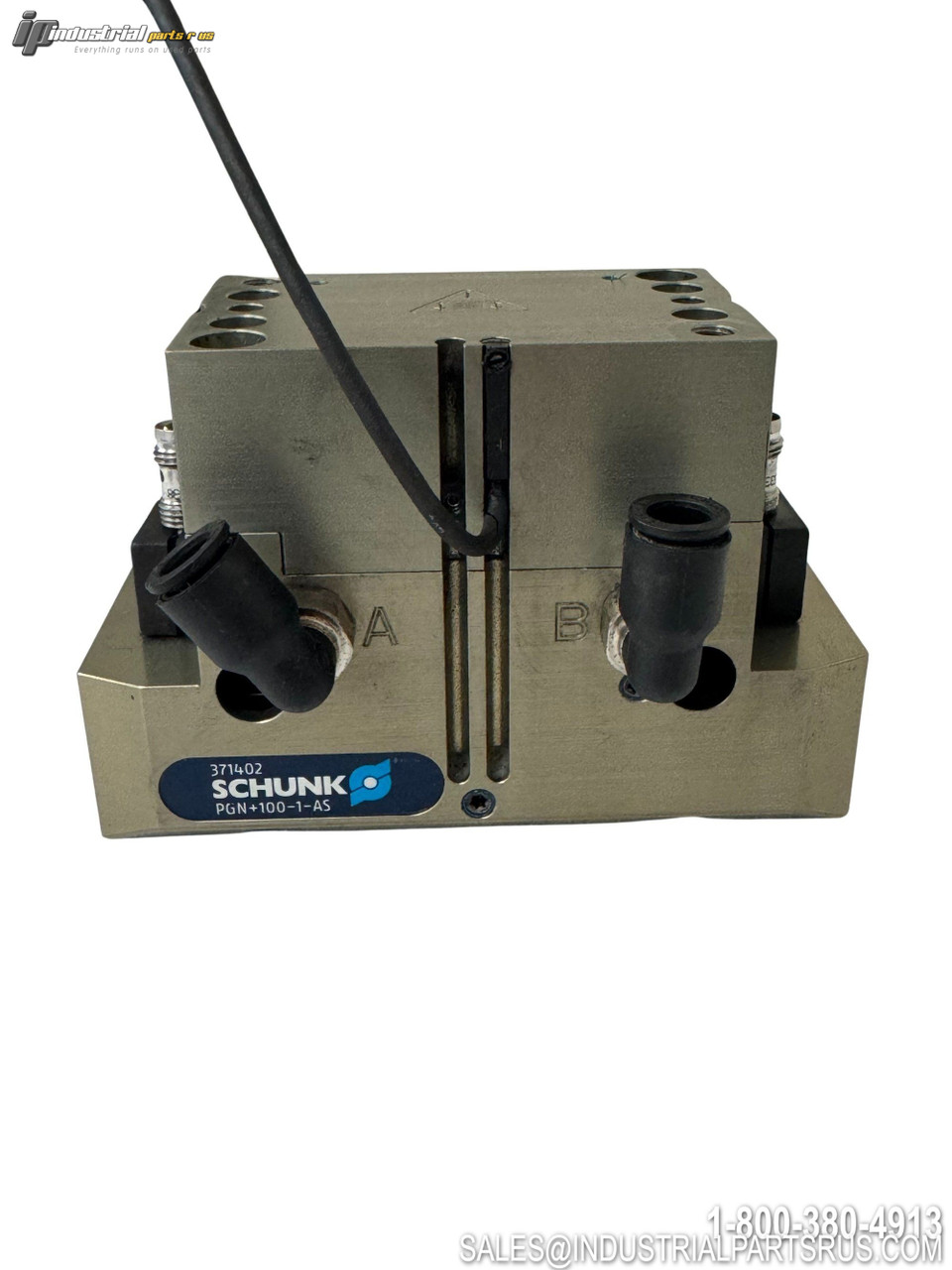

The Schunk PGN-100-1-AS is a universal pneumatic parallel gripper from the PGN-plus series designed for precision handling applications in industrial automation. This size 100 gripper features pneumatic actuation with gripping force maintenance (AS) capability and operates at stroke per jaw of 10mm with 900N closing force. The gripper includes mechanical gripping force maintenance for reliable workpiece retention even during air pressure loss.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schunk |
| Model/Part Number | PGN-100-1-AS |
| Product Type | Pneumatic Gripper |
| Series | PGN-plus |
| Size | 100 |
| Stroke per Jaw | 10 mm |
| Closing Force | 900 N |
| Minimum Spring Force | 240 N |
| Weight | 1 kg |
| Recommended Workpiece Weight | 3.3 kg |
| Fluid Consumption (Double Stroke) | 79 cm³ |
| Minimum Operating Pressure | 4 bar |
| Maximum Operating Pressure | 6.5 bar |
| Nominal Operating Pressure | 6 bar |
| Maximum Ambient Temperature | 90°C |
| Actuation Type | Pneumatic |
| Gripping Force Maintenance | Yes (AS) |
| Air Quality Standard | ISO 8573-1:2010 [7:4:4] |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Schunk
Part Number PGN+100-1-AS
Shelf GS-40
Model PGN+100-1-AS
MPN PGN+100-1-AS
Type Pneumatic Gripper
