Product Description
This listing is for the EMITTER ONLY. The receiver is NOT included.

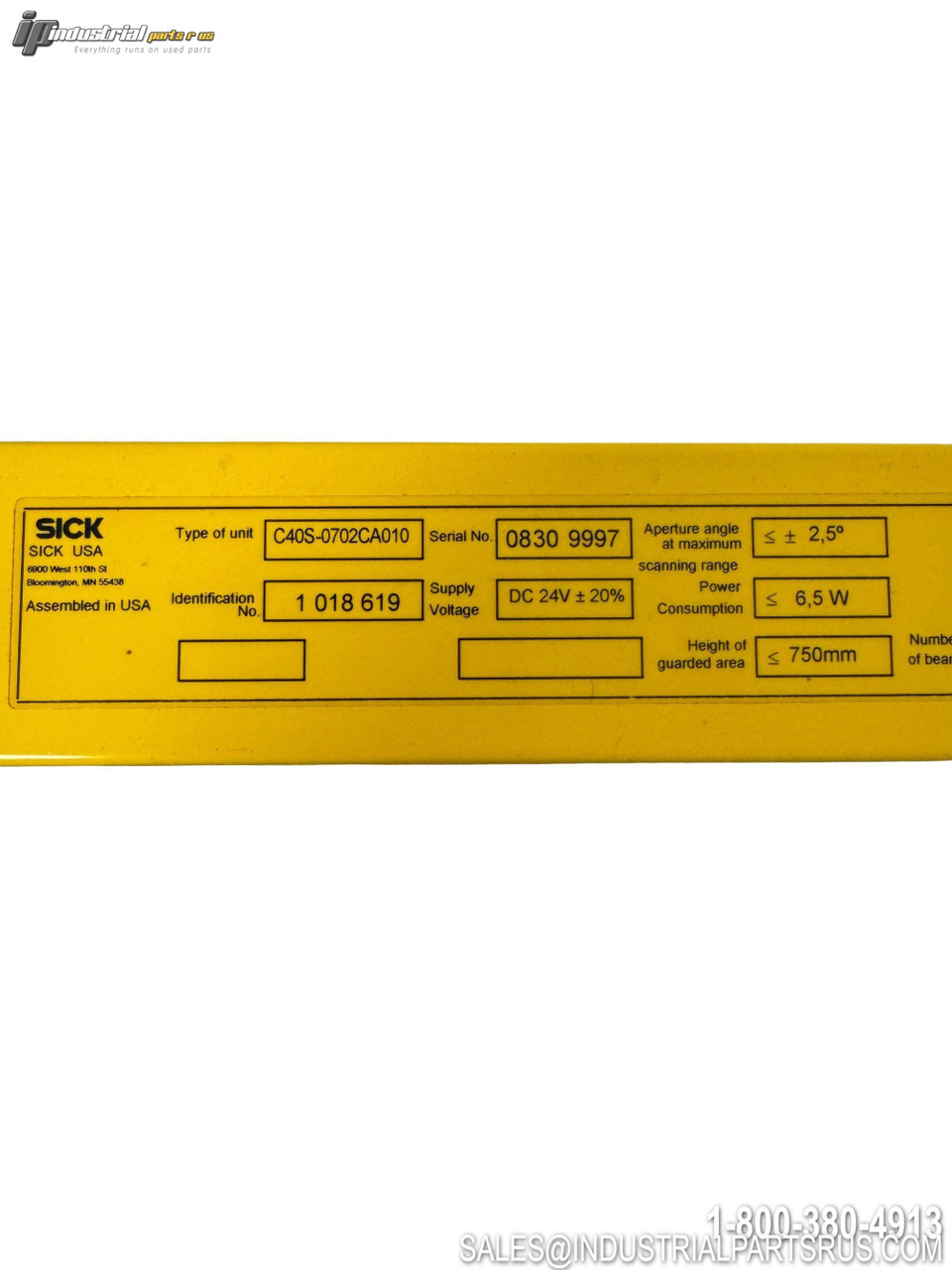

The Sick C40S-0702CA010 is a C4000 Advanced series safety light curtain sender unit designed for industrial safety applications. This electro-sensitive protective equipment (ESPE) provides reliable protection for hazardous points and areas with Type 4 performance level and SIL 3 safety rating. The unit features a 750mm protective field height with 20mm resolution and operates with a maximum scanning range of 21 meters.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model/Part Number | C40S-0702CA010 |
| SICK ID Number | 1018619 |
| Product Series | C4000 Advanced |
| System Part | Sender |
| Protective Field Height | 750mm |
| Resolution | 20mm |
| Typical Scanning Range | 0-21m |
| System Connection | Hirschmann M26 12-pin Male Connector |
| Safety Rating | Type 4 (IEC 61496), SIL 3 (IEC 61508), PL e (EN ISO 13849) |
| Operating Voltage | 24VDC |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SICK
Part Number C40S-0702CA010
Shelf LC Bin
Model C40S-0702CA010
MPN C40S-0702CA010
Type Safety Light Curtain
