Product Description

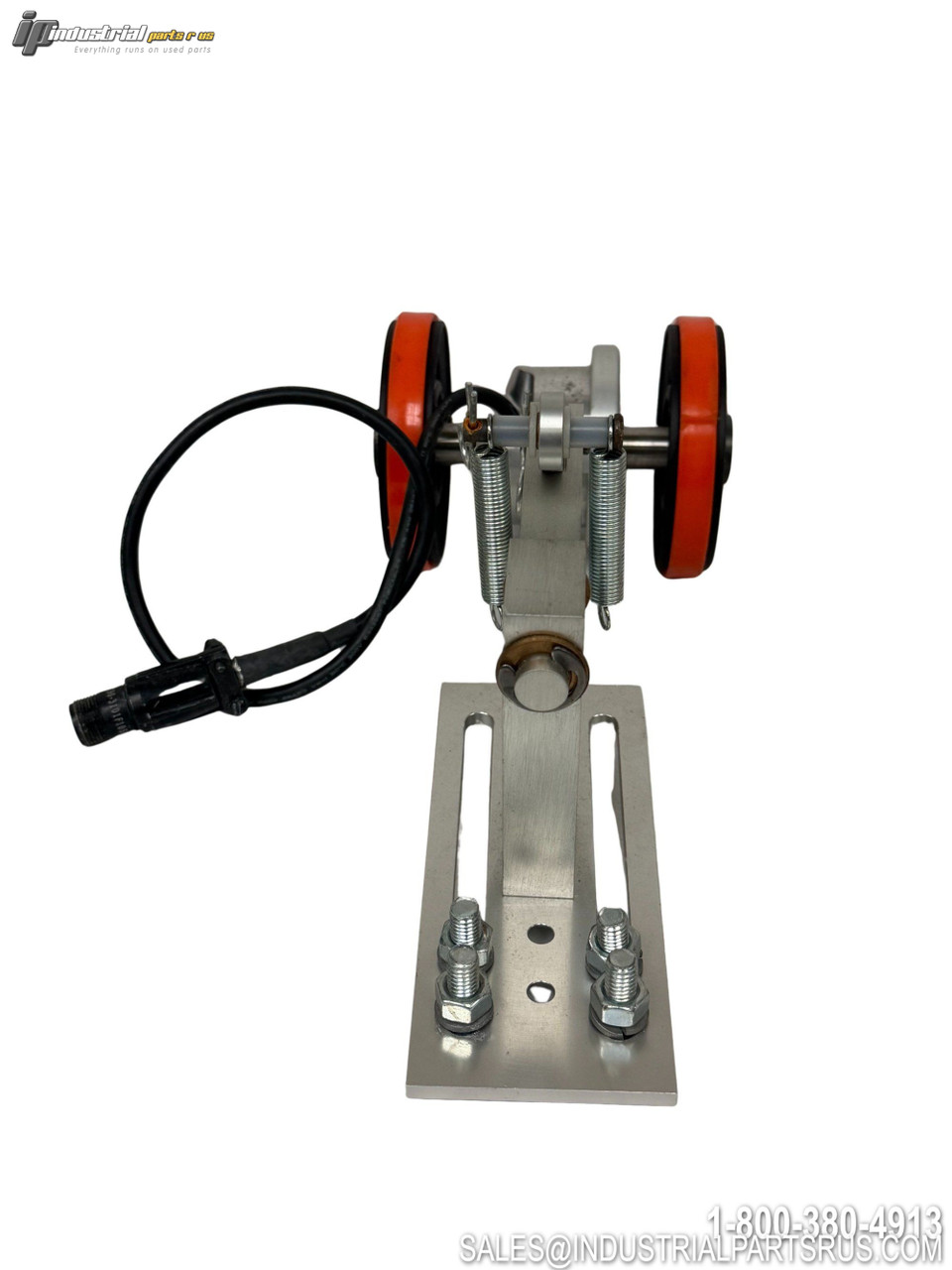

The Sick DUV60E-D4KZHZZAS02 is a special-device incremental measuring wheel encoder from the Sick DUV60 series, designed for conveyor, web, and logistics linear measurement applications. It features DIP switch programmability for output voltage, resolution, and counting direction, eliminating the need for additional programming tools. This unit belongs to the D4KZH family, sharing the 1500 PPR resolution and 300 mm measuring wheel circumference platform with spring-tension under-belt flange mount design.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model / Part Number | DUV60E-D4KZHZZAS02 |
| Product Series | DUV60 |
| Product Type | Incremental Measuring Wheel Encoder |
| Special Device | Yes (AS02 Special Variant) |
| Encoder Technology | Incremental |
| Pulses Per Revolution (PPR) | 1500 PPR |
| Resolution Range | 0.125 mm/pulse to 304.8 mm/pulse |
| Output Signal Type | TTL / HTL (DIP switch selectable) |
| Supply Voltage | 4.75 V – 30 V DC |
| Power Consumption (max, no load) | ≤ 1.25 W |
| Load Current (max, per channel) | ≤ 30 mA |
| Maximum Output Frequency | 60 kHz |
| Reference Signal, Number | 1 |
| Reference Signal, Position | 90°, electric, logically gated with A and B |
| Measuring Wheel Circumference | 300 mm |
| Measuring Wheel Surface | Smooth plastic (urethane) |
| Spring Arm Design | Spring tension, under-belt flange mount |
| Connector Type | Special / Custom (ZZ variant — see label) |
| Configuration Method | DIP switch (resolution, output voltage, counting direction) |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| IP Rating | IP65 |
| Operating Temperature | -30°C to +70°C |
| Mass (approx.) | 0.9 kg |
| Encoder Housing Material (Shaft) | Stainless Steel |
| Encoder Housing Material (Flange) | Aluminum |
| Encoder Housing Material (Body) | Aluminum |
| Spring Arm Material | Spring Steel |
| MTTF (Mean Time to Dangerous Failure) | 275 years (EN ISO 13849-1) |
| Rotational Life Cycles | 3,600,000,000 |
| Maximum Rotational Speed | 1500 RPM |
| Standards / Approvals | CE, RoHS |
| Typical Applications | Conveyor, web, sheet metal, textiles, paper, logistics |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Push-Pull (TTL / HTL, DIP Switch Selectable)
Sensor Type Incremental Rotary Encoder
Full Load Amps ≤ 30 mA per channel
Manufacturer SICK
Enclosure Type IP65
Part Number DUV60E-D4KZHZZAS02
Shelf D-7
Model DUV60E-D4KZHZZAS02
MPN DUV60E-D4KZHZZAS02
Type Incremental Encoder
