Product Description

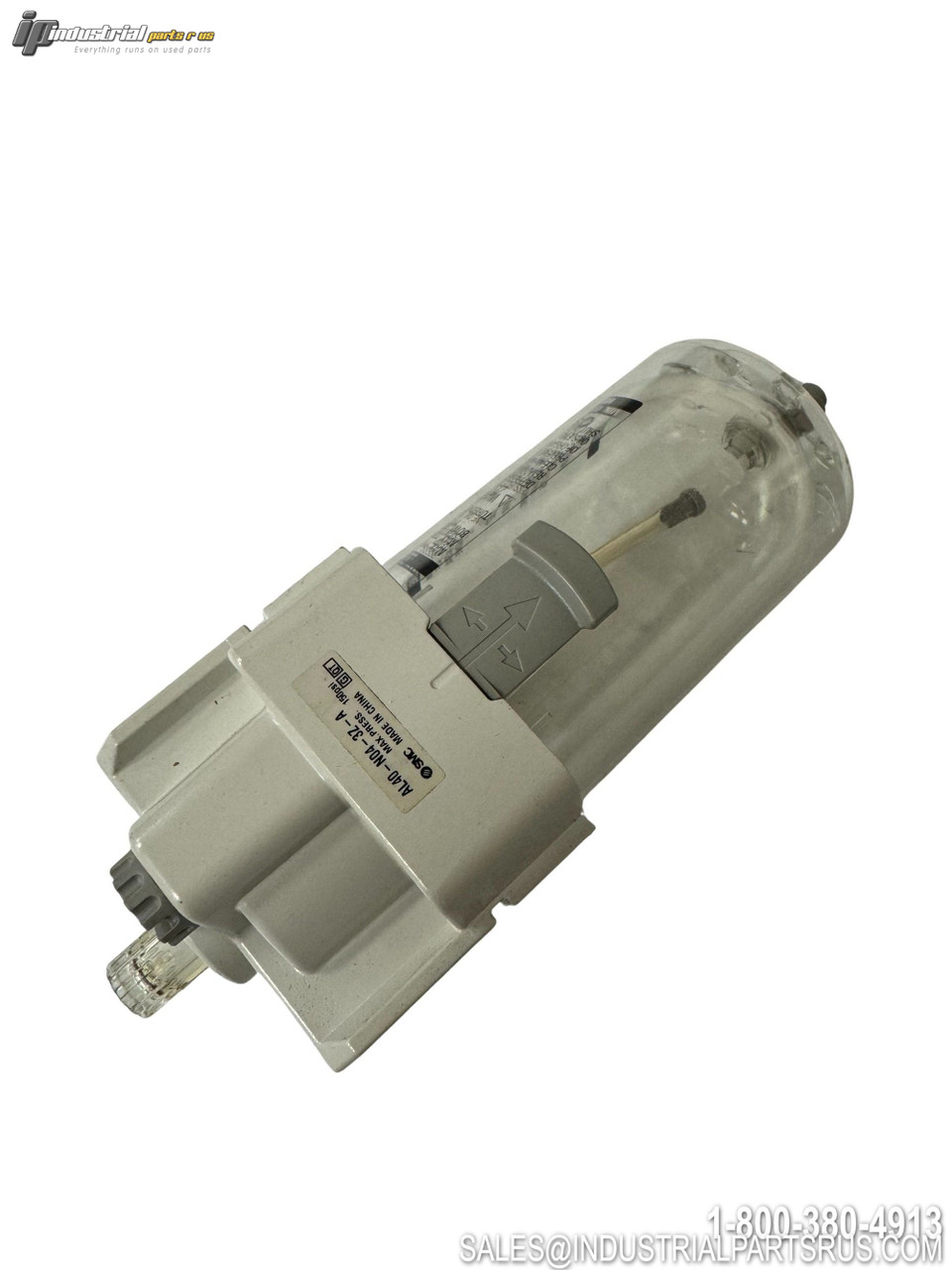

The SMC AL40-N04-3Z-A is a modular pneumatic air lubricator designed to provide accurate lubrication of downstream pneumatic equipment. This size 40 unit features a polycarbonate bowl with transparent bowl guard for 360° monitoring and an adjustable oil drop rate system. The modular design allows seamless integration with other SMC air preparation equipment in pneumatic systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | AL40-N04-3Z-A |
| Product Type | Modular Air Lubricator |
| Body Size | 40 |
| Port Size | 1/2 NPT |
| Thread Type | NPT |
| Maximum Flow Rate | 177 CFM |
| Oil Capacity | 4.56 oz (135 mL) |
| Maximum Operating Pressure | 145 PSI (1.0 MPa) |
| Proof Pressure | 218 PSI (1.5 MPa) |
| Operating Temperature Range | 23°F to 140°F (-5°C to 60°C) |
| Bowl Material | Polycarbonate |
| Bowl Guard | Transparent Bowl Guard |
| Drain Cock | With Drain Lock |
| Operating Medium | Compressed Air |
| Recommended Lubricant | Class 1 Turbine Oil (ISO VG 32) |
| Overall Dimensions | 2.76" L x 2.76" W |
| Series | AL |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number AL40-N04-3Z-A
Shelf A-17
Model AL40-N04-3Z-A
MPN AL40-N04-3Z-A
Type Air Regulator
