Product Description

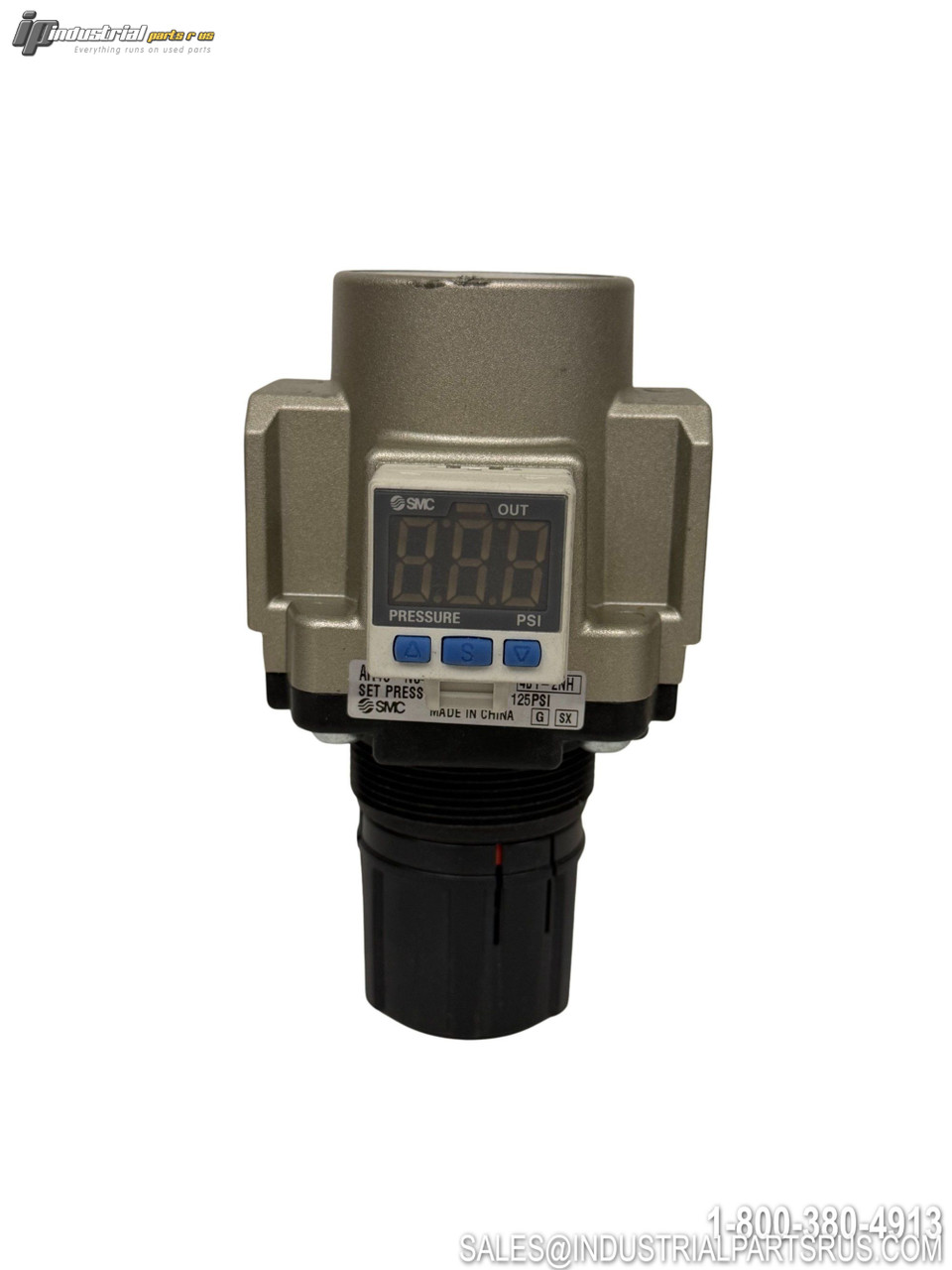

The SMC AR40-N04E3-Z is a modular-type pneumatic air pressure regulator from SMC's AR series, featuring a body size 40 with 1/2" NPT female ports. It includes an embedded square-type pressure gauge with a limit indicator and is configured with imperial unit markings (psi/°F) and a nameplate for North American (overseas) market use via the "Z" semi-standard designation. The relieving-type design rapidly exhausts downstream pressure when the set point is decreased, and the locking adjustment knob prevents accidental setting changes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | AR40-N04E3-Z |
| Series | AR (Modular Regulator) |
| Product Type | Air Regulator, Modular Type |
| Body Size | 40 |
| Port Size | 1/2" (04) |
| Thread Type | NPT (N) |
| Port Gender | Female |
| Pressure Gauge Type | Square Embedded Type with Limit Indicator + Right-Angle Round Gauge (E3 option) |
| Semi-Standard (Z) | Name Plate, Caution Plate, Pressure Gauge in psi / °F (Imperial Units — Overseas Use) |
| Regulator Type | Relieving Type (Internal Pilot) |
| Backflow Function | None (Standard) |
| Set Pressure Range | 0.05 – 0.85 MPa (7.25 – 123 psi) |
| Maximum Set Pressure | 0.85 MPa (123 psi) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (217.6 psi) |
| Operating Temperature Range | -5°C to 60°C (23°F to 140°F), No Freezing |
| Fluid / Media | Compressed Air |
| Flow Direction | Left to Right |
| Knob Type | Downward Locking Knob (HNBR ozone-resistant rubber) |
| Body Material | Aluminium Die-Cast |
| Seal Material | NBR |
| Bonnet Material | Polyacetal |
| Diaphragm Material | HNBR (Ozone Resistant) |
| Max Flow Rate | 1500 L/min (approx. 106 scfm) |
| Overall Length | 128 mm |
| Overall Width | 68 mm |
| Overall Height | 70 mm |
| Modular Design | Yes — connects with other SMC AR series air preparation equipment |
| Panel Mount | Yes — integral panel mount ring; optional bracket and set nuts available |
| Manufacturer | SMC Corporation |
