Product Description

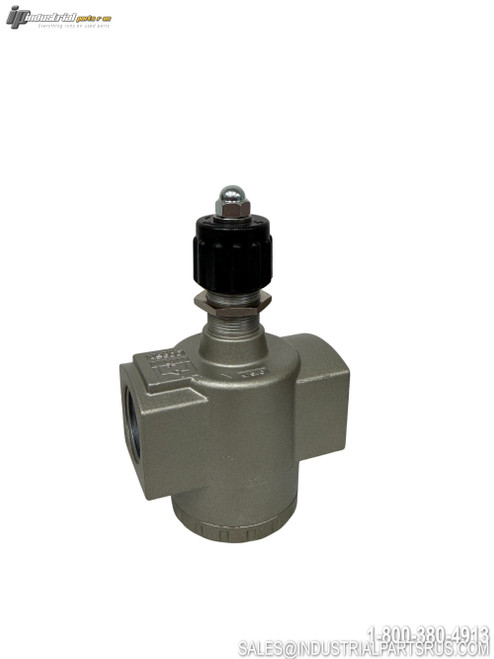

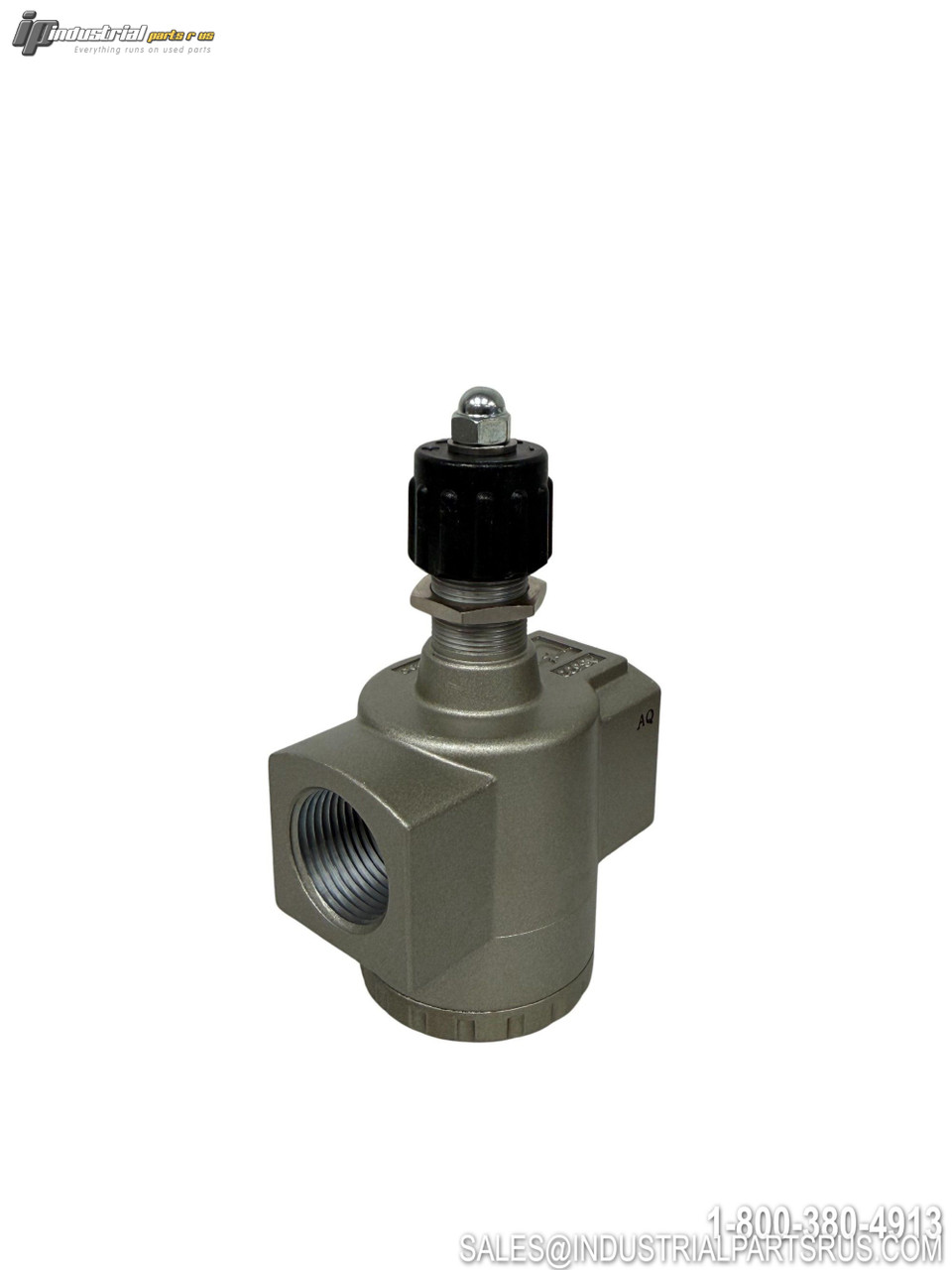

The SMC AS500-N06 is a pneumatic flow control valve/speed controller designed for air applications with meter-out flow control. This inline-type device features an aluminum body with 3/4" NPT threaded connections and needle valve control mechanism for precise speed adjustment. It operates within a pressure range of 0.05 to 1.0 MPa and temperature range of -5 to +60°C.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | AS500-N06 |
| Product Type | Pneumatic Flow Control Valve/Speed Controller |
| Series | AS |
| Construction Type | Inline |
| Body Size | 3/4" |
| Port Size | 3/4" |
| Thread Standard | NPT |
| Connection Type | Female NPT Threaded |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Valve Function | Needle |
| Metering Type | Meter Out |
| Operating Medium | Air |
| Operating Pressure Range | 0.05 to 1.0 MPa |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.05 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -5 to +60°C |
| Flow Coefficient (Controlled Flow) | 123 mm² |
| Flow Coefficient (Free Flow) | 154 mm² |
| Overall Length | 74 mm |
| Overall Width | 50 mm |
| Overall Height | 115 mm |
| Standards Compliance | JIS |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686284
Manufacturer SMC
Part Number AS500-N06
Shelf A-6
Model AS500-N06
MPN AS500-N06
Type Pneumatic Valve
