Product Description

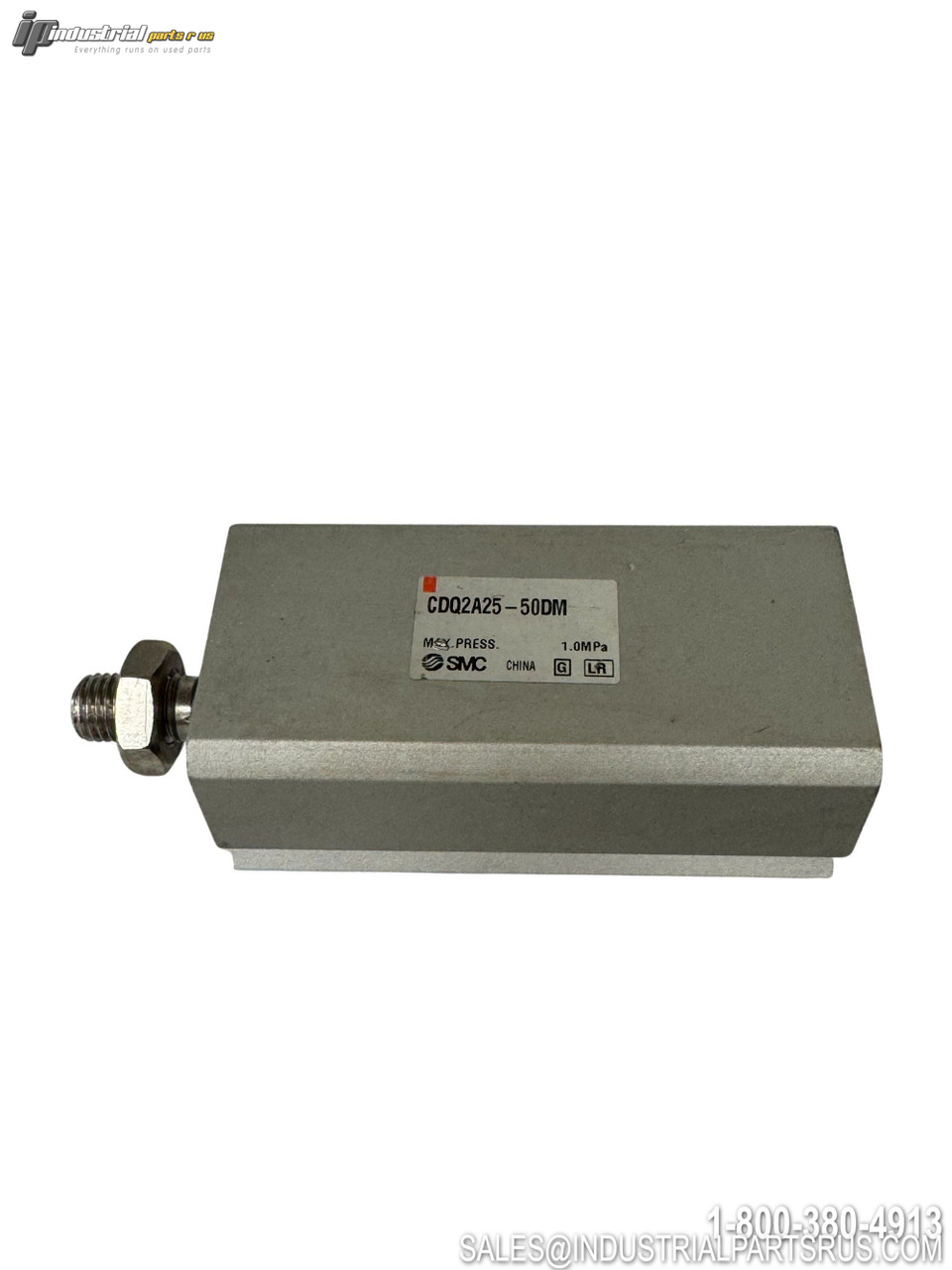

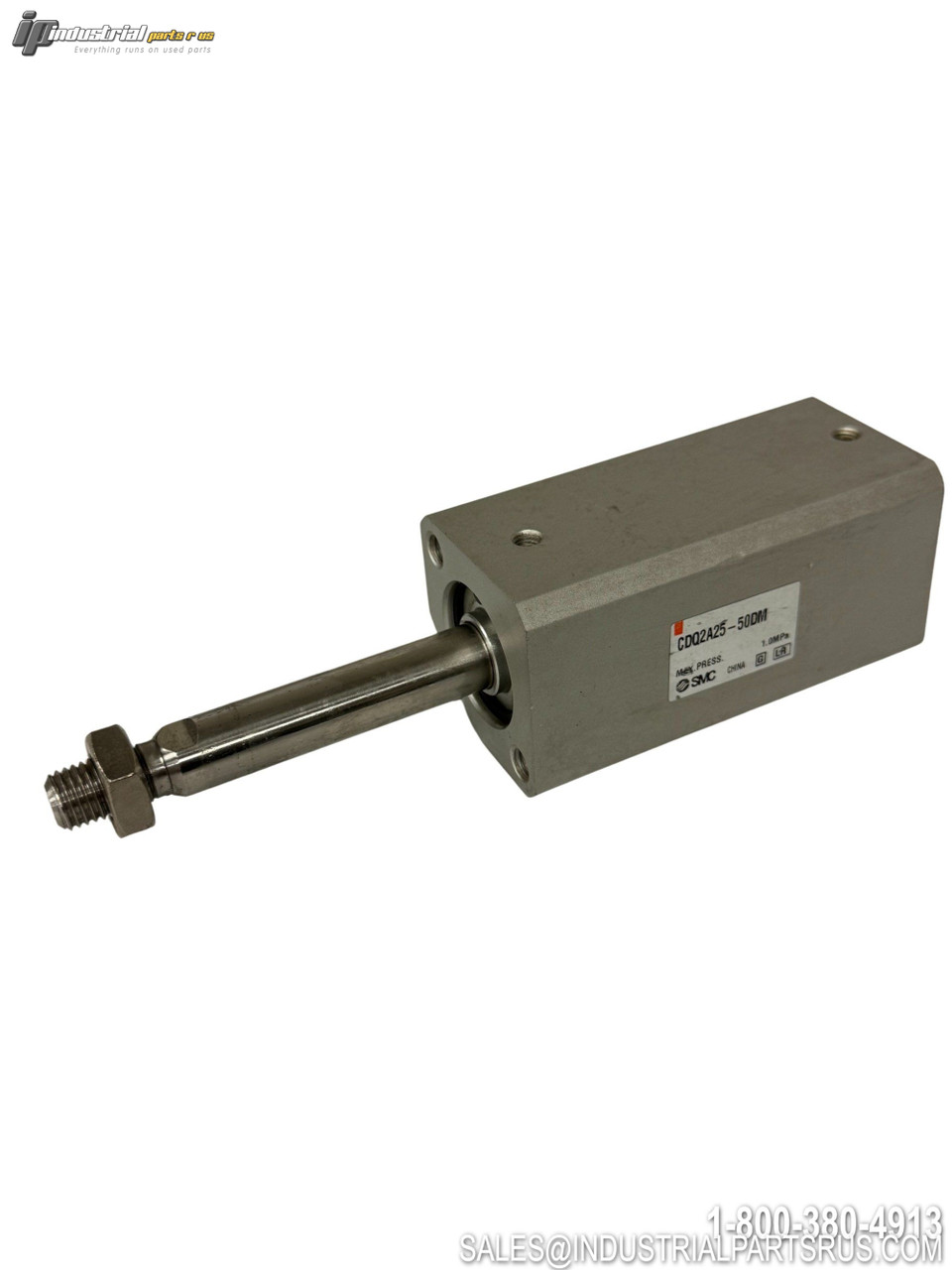

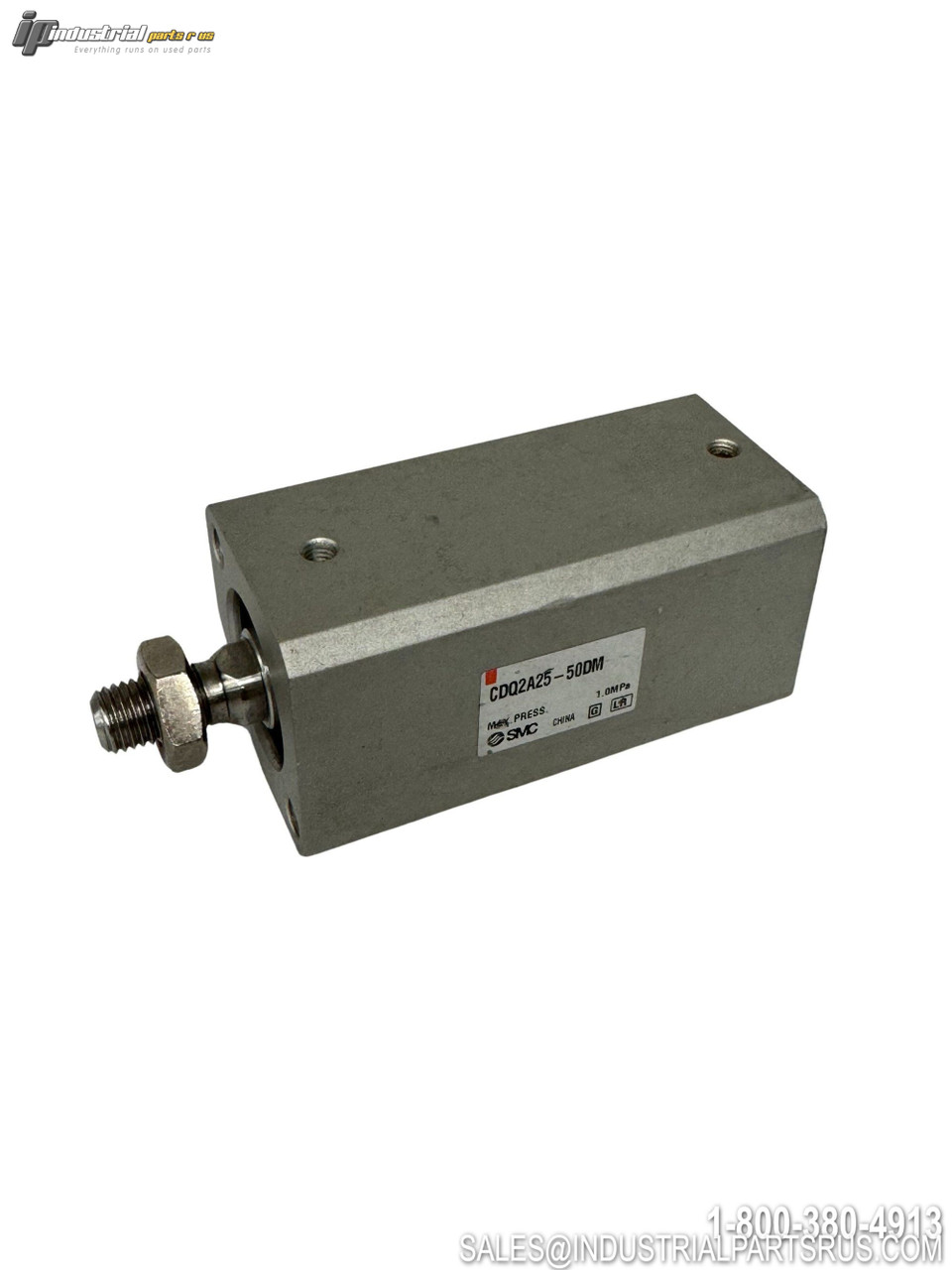

The SMC CDQ2A25-50DM is a compact pneumatic cylinder from SMC's world-renowned CQ2 series. This double-acting, single-rod cylinder features a space-saving design with 25mm bore diameter and 50mm stroke length. The CQ2 series is designed with a compact body to help make various jigs and equipment more compact, with auto switch mounting capability on multiple surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2A25-50DM |
| Series | CQ2 |
| Cylinder Type | Compact Cylinder |
| Action | Double Acting |
| Bore Diameter | 25mm |
| Stroke Length | 50mm |
| Maximum Operating Pressure | 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -10°C to +70°C |
| Mounting Style | Both Ends Tapped |
| Built-in Magnet | Yes |
| Rod End | Male Thread |
| Auto Switch Mounting | 2 Surfaces (12-25mm bore) |
| Medium | Compressed Air |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2A25-50DM
Shelf B-15
Bore Diameter 25 mm
Model CDQ2A25-50DM
MPN CDQ2A25-50DM
Type Compact Cylinder
