Product Description

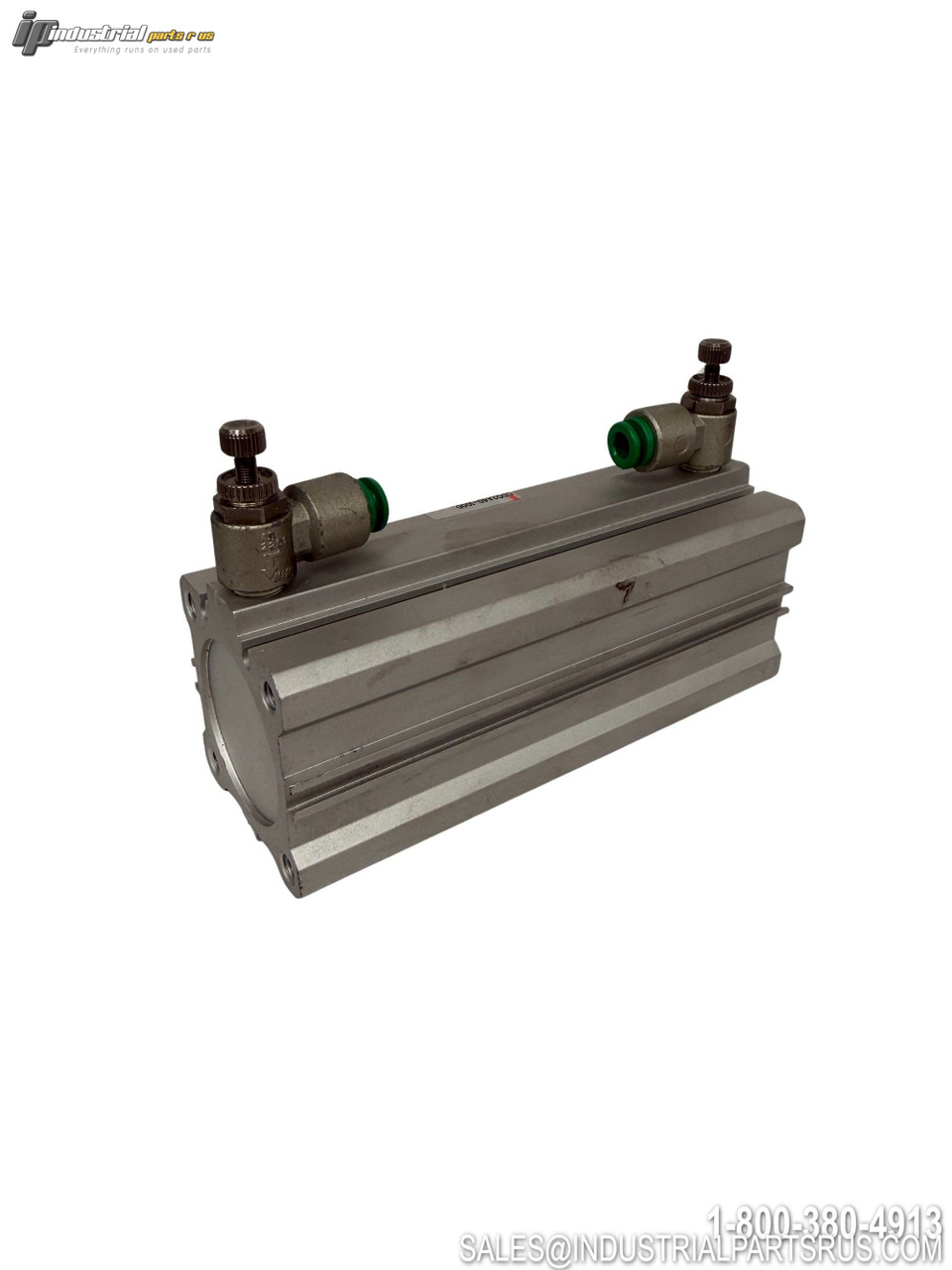

The SMC CDQ2A40-100D-F7BVL-X838 is a compact pneumatic cylinder from SMC's CQ2 series, designed for double acting operation with a 40mm bore diameter and 100mm stroke length. This is part of the CQ2 compact cylinder series which is available in bore sizes from 12mm to 100mm and strokes up to 300mm, featuring male or female piston rod threads. The CQ2 series allows mounting of auto switches on any of the 4 surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2A40-100D-F7BVL-X838 |
| Series | CQ2 |
| Cylinder Type | Compact Pneumatic Cylinder |
| Bore Diameter | 40mm |
| Stroke Length | 100mm |
| Action | Double Acting |
| Rod Type | Single Rod |
| Suitable Media | Air |
| Max Operating Pressure | 1.0 MPa |
| Auto Switch Mounting | 4 Surfaces |
| Construction | Compact Body Design |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2A40-100D-F7BVL-X838
Shelf B-11
Bore Diameter 40 mm
Model CDQ2A40-100D-F7BVL-X838
MPN CDQ2A40-100D-F7BVL-X838
Type Pneumatic Cylinder
