Product Description

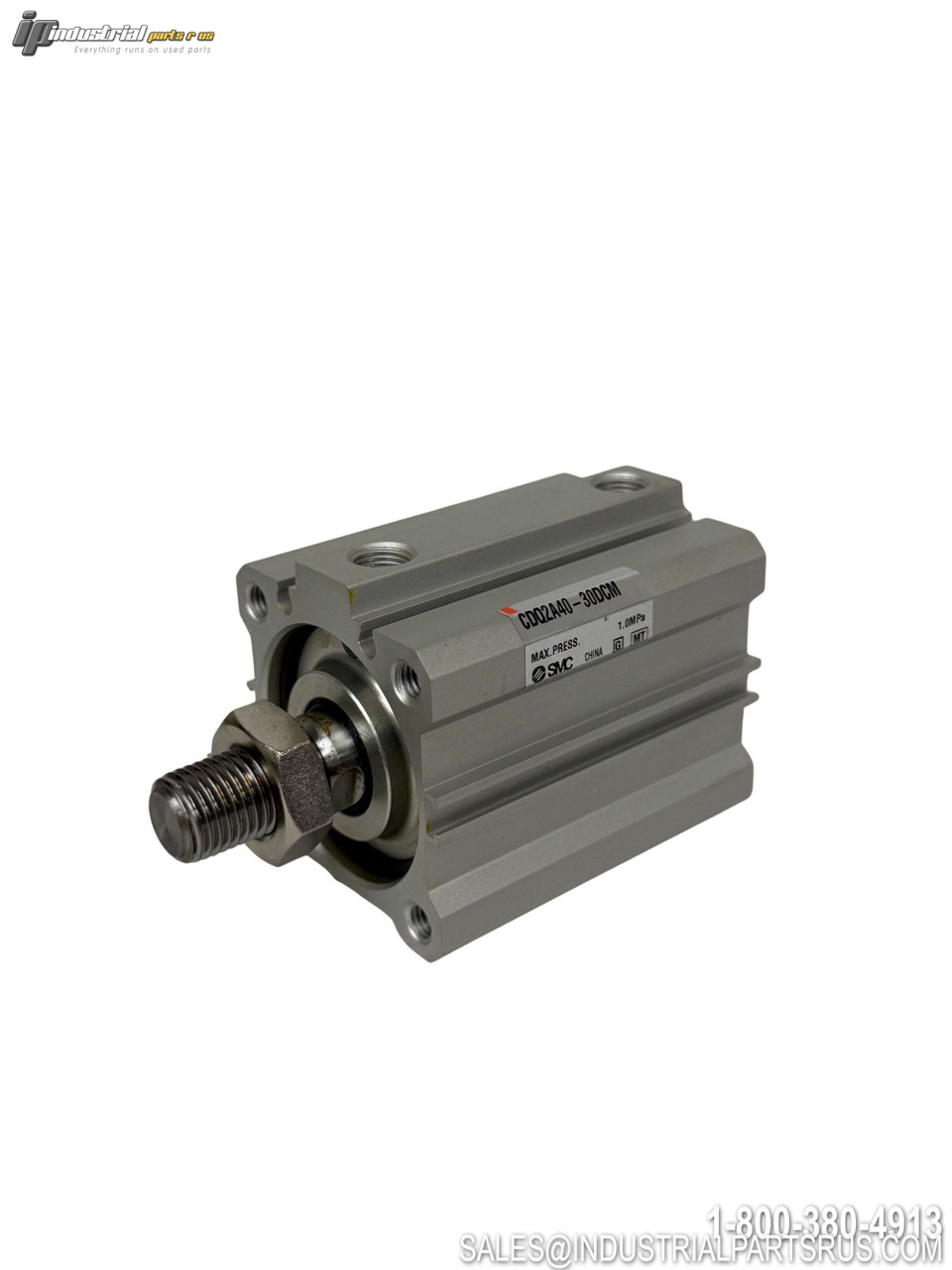

The SMC CDQ2A40-30DCM is a CQ2 series compact pneumatic cylinder designed for space-saving applications. This double acting cylinder features a 40mm bore diameter with a 30mm stroke length and built-in magnet for sensor mounting. The compact design makes it ideal for various jigs and equipment where space is limited.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2A40-30DCM |
| Series | CQ2 |
| Cylinder Type | Compact Cylinder |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Bore Diameter | 40 mm |
| Stroke Length | 30 mm |
| Mounting Type | Threaded Mount |
| Built-in Magnet | Yes |
| Support Bracket | Both Ends Tapped |
| Port Thread Type | Rc/M Thread |
| Rod End | Male Thread |
| Operating Pressure | 1 to 1.5 MPa |
| Operating Temperature | -10 to 60°C |
| Auto Switch Mounting | 4 Surfaces (32-100mm bore) |
| Product Status | Obsolete |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2A40-30DCM
Shelf A-11
Bore Diameter 40 mm
Model CDQ2A40-30DCM
MPN CDQ2A40-30DCM
Type Pneumatic Cylinder
