Product Description

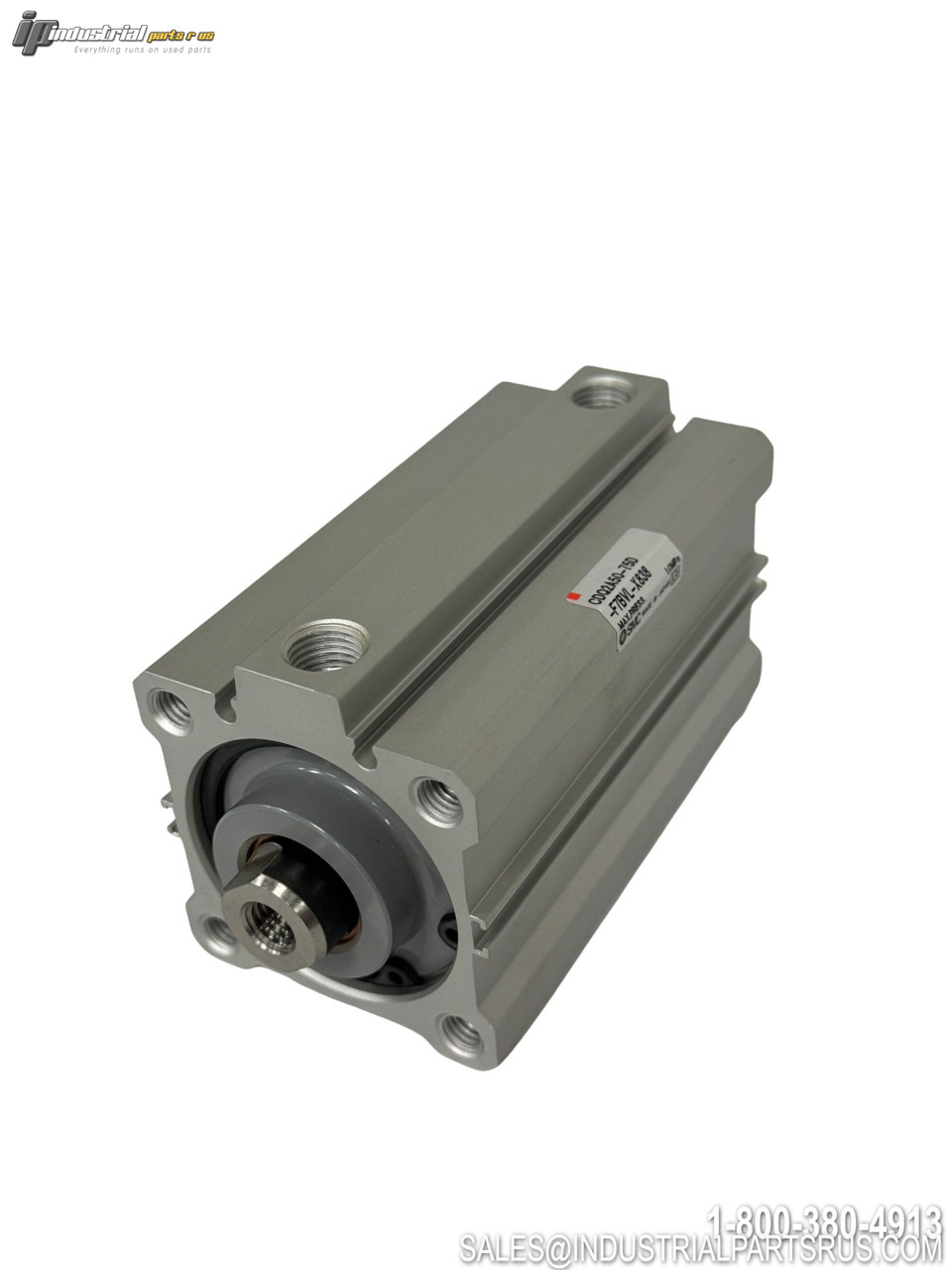

This SMC CDQ2A50-75D-F7BVL-X838 is a compact pneumatic cylinder from SMC's CQ2 series. This double acting, single rod cylinder is designed for space-saving applications and features both ends tapped mounting with auto switch mounting grooves on four surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2A50-75D-F7BVL-X838 |
| Type | Pneumatic Cylinder |
| Series | CQ2 |
| Bore Diameter | 50mm |
| Stroke Length | 75mm |
| Cylinder Type | Compact Cylinder |
| Action | Double Acting |
| Rod Configuration | Single Rod |
| Mounting | Both Ends Tapped |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Port Thread | M Thread |
| Auto Switch Capability | Yes - 4 Surface Mounting |
| Built-in Magnet | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SMC
Part Number CDQ2A50-75D-F7BVL-X838
Shelf B-10
Bore Diameter 50 mm
Model CDQ2A50-75D-F7BVL-X838
MPN CDQ2A50-75D-F7BVL-X838
Type Pneumatic Cylinder
