Product Description

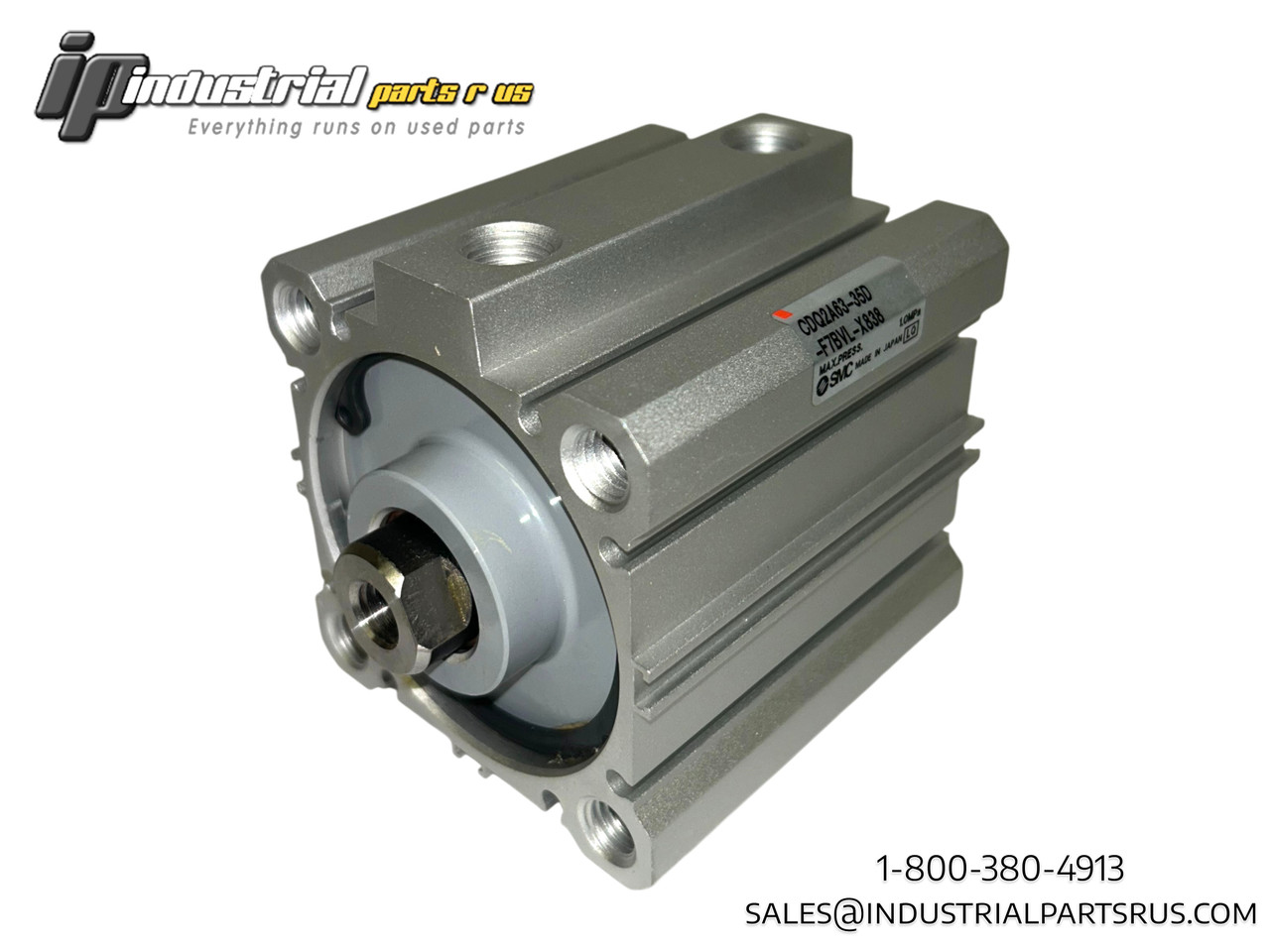

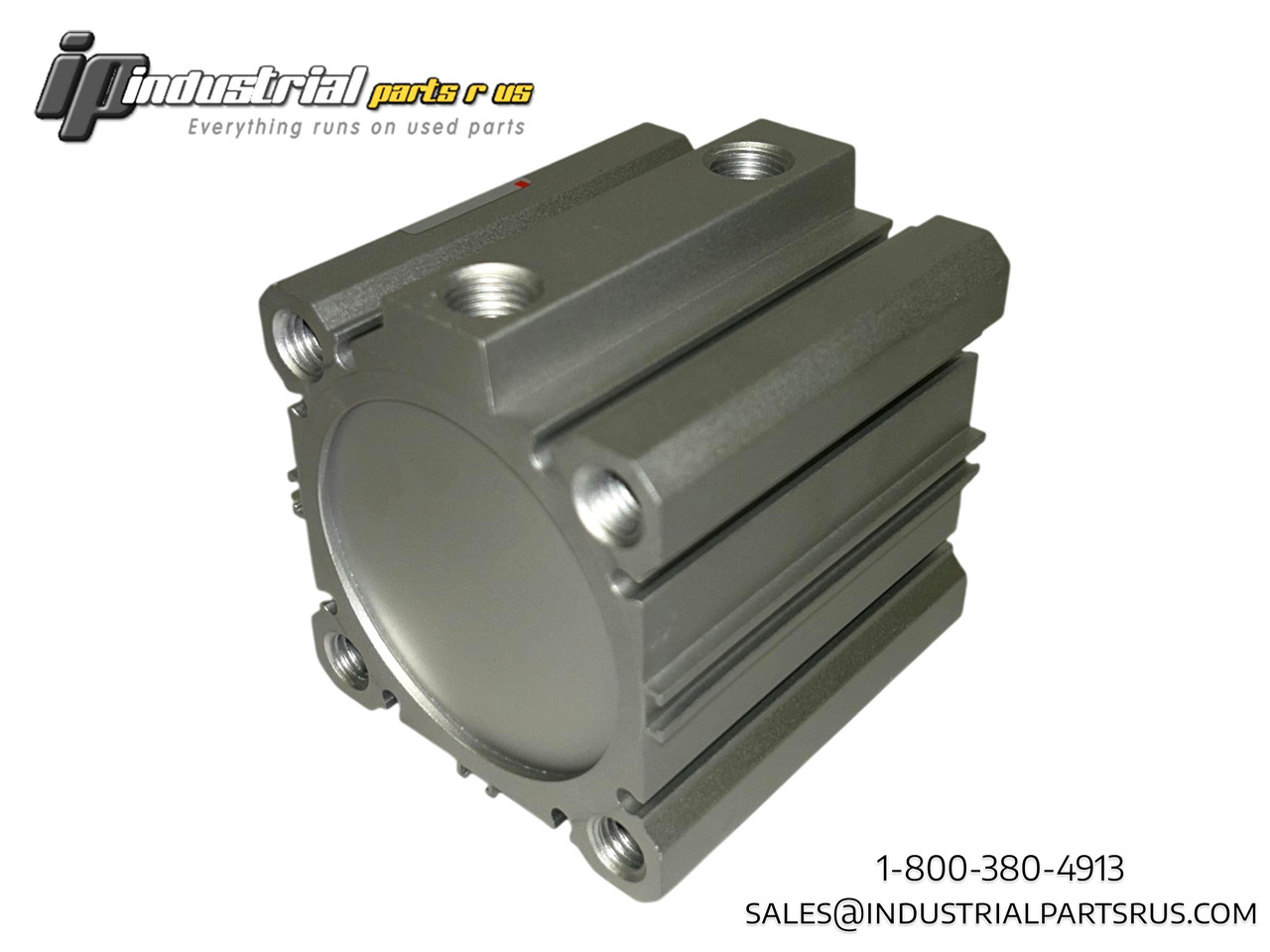

The SMC CDQ2A63-35D-F7BVL-X838 is a compact double-acting pneumatic cylinder from the world-renowned CQ2 series, featuring a 63mm bore diameter and 35mm stroke length. This space-saving cylinder includes a built-in magnet for auto switch compatibility, metric mounting threads, and offers mounting flexibility on multiple surfaces. Designed for industrial automation applications, it delivers reliable performance with maximum operating pressure of 1.0 MPa.
Specifications
- Series: CQ2A Compact Cylinder
- Bore Size: 63mm
- Stroke Length: 35mm
- Action Type: Double Acting, Single Rod
- Maximum Operating Pressure: 1.0 MPa (145 psi)
- Proof Pressure: 1.5 MPa (218 psi)
- Minimum Operating Pressure: 0.05 MPa (7.3 psi)
- Piston Speed: 50-500 mm/s
- Operating Temperature: -10°C to +60°C
- Built-in Magnet: Yes
- Auto Switch Mounting: Grooves for 4-surface mounting
- Port Thread Type: Rc3/8 inch pneumatic threaded ports (x2)
- Mounting Type: Threaded mount configuration
- Rod End Thread: Female thread
- Special Features: F7BVL option code, X838 custom specification
- Country of Manufacture: Japan
Other Details
New Item. Surplus Inventory. 30 Day Warranty!Product Videos
Custom Field
GTIN 721814247947
Country/Region of Manufacture Japan
Max. Mpa 1.0 MPa
Max. PSI 145 PSI
Max. Operating Pressure 1.0 MPa
Useraction Double Acting
Manufacturer SMC
Max. Pressure 1.0 MPa
Part Number CDQ2A63-35D-F7BVL-X838
Shelf B-10
Stroke 35mm
Bore Diameter 63mm
Model CDQ2A63-35D-F7BVL-X838
MPN CDQ2A63-35D-F7BVL-X838
Type Compact Pneumatic Cylinder
