Product Description

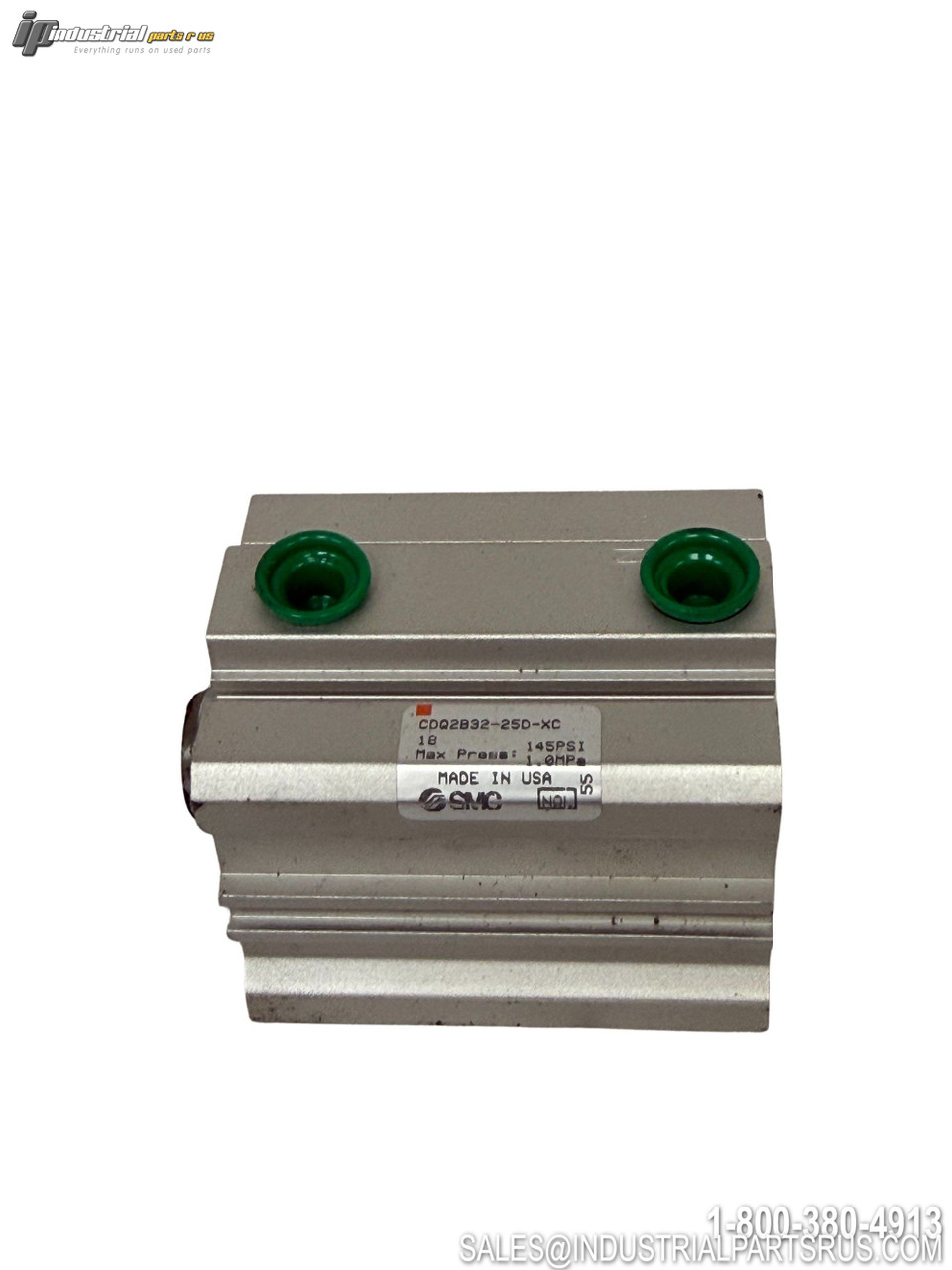

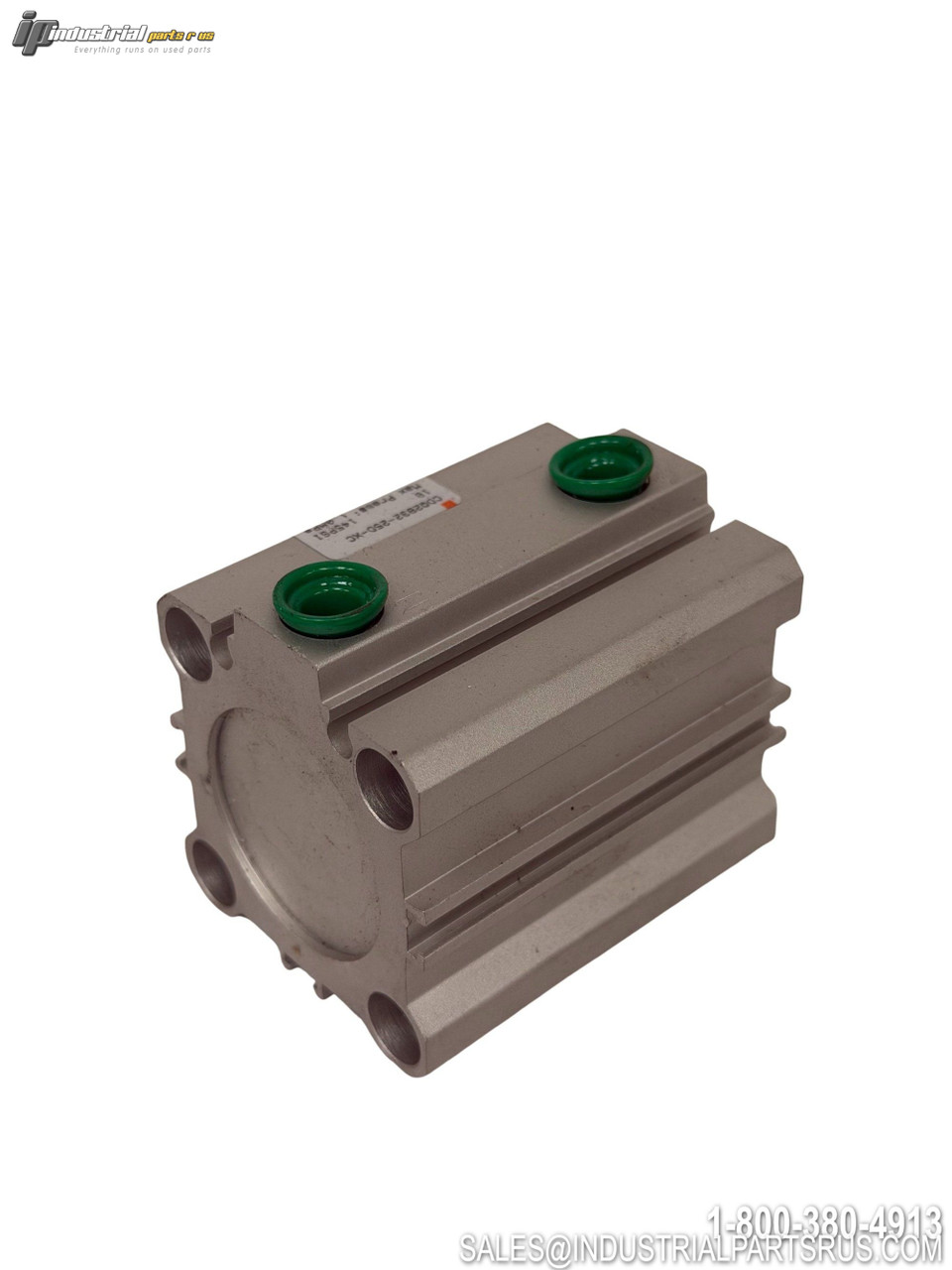

The SMC CDQ2B32-25D-XC18 is a compact pneumatic cylinder from SMC's CQ2 series featuring a 32mm bore diameter and 25mm stroke length. This double acting, single rod, compact cylinder is part of SMC's redesigned CQ2 series with auto switch mounting capabilities. The CQ2 series has been redesigned with a new body, making it possible to mount auto switches on any of the 4 surfaces, with auto switch mounting grooves replacing the mounting rails to prevent projection and improve ease and safety of work.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B32-25D-XC18 |
| Type | Pneumatic Cylinder |
| Series | CQ2 |
| Bore Diameter | 32mm |
| Stroke Length | 25mm |
| Cylinder Type | Compact Cylinder |
| Action | Double Acting |
| Rod Configuration | Single Rod |
| Auto Switch Mounting | 4 Surfaces (2 surfaces for 12-25mm bore) |
| Port Thread | M, RC, NPT or G thread options |
| Operating Pressure | 0.1-1.0 MPa |
| Mounting Bolt Size | M5 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B32-25D-XC18
Shelf K-65 Tub 2
Bore Diameter 32 mm
Model CDQ2B32-25D-XC18
MPN CDQ2B32-25D-XC18
Type Pneumatic Cylinder
