Product Description

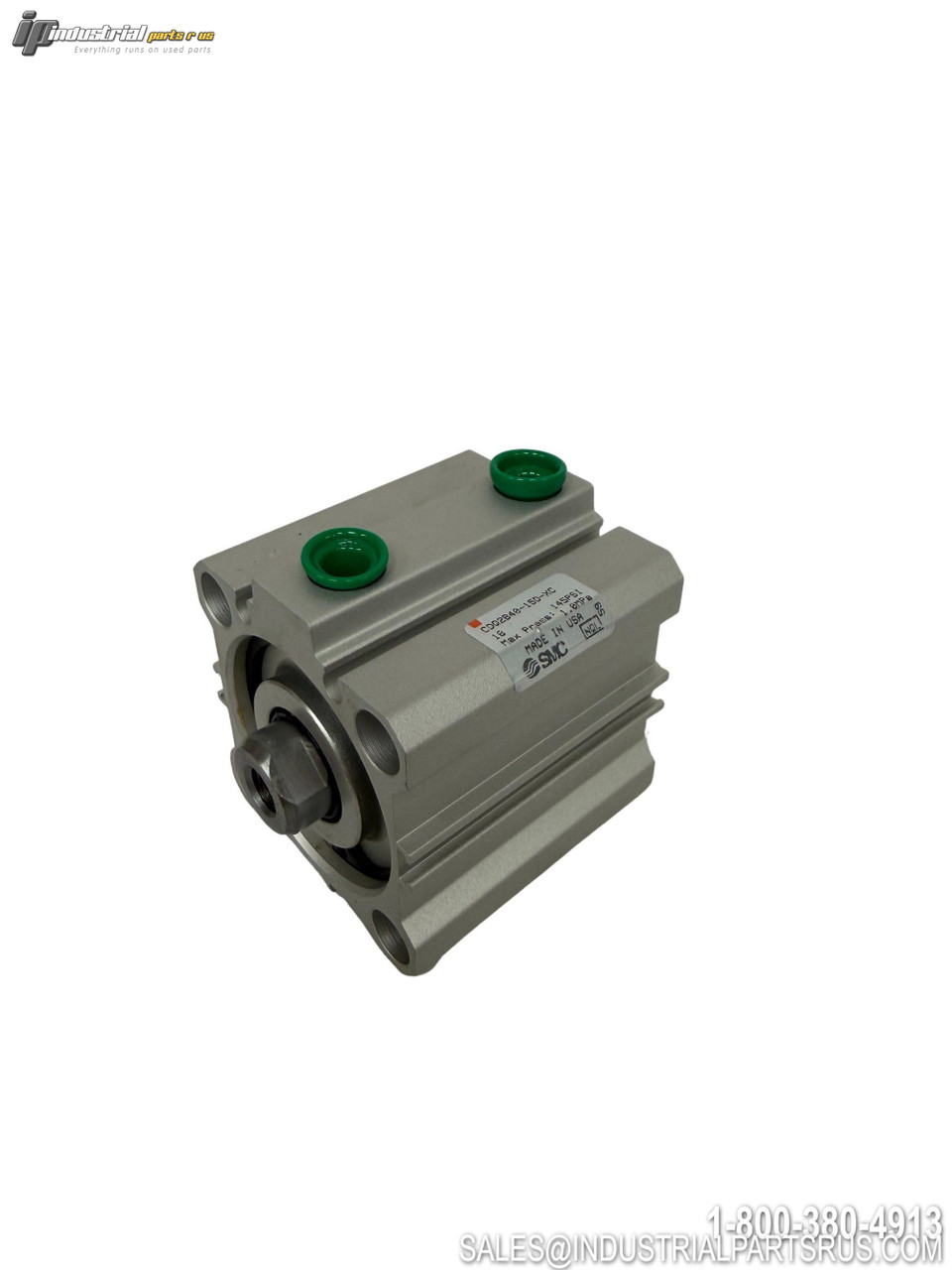

The SMC CDQ2B40-15D-XC18 is a compact pneumatic cylinder from SMC's CQ2 series, featuring a 40mm bore diameter and 15mm stroke length. This double-acting cylinder operates at pressures up to 145 PSI (1.0 MPa) maximum operating pressure, with through-hole mounting capability and built-in magnet for auto switch mounting grooves. The compact design is optimized for efficient operation in tight spaces while maintaining smooth and reliable performance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B40-15D-XC18 |
| Series | CQ2 |
| Bore Diameter | 40mm |
| Stroke Length | 15mm |
| Cylinder Type | Compact Double-Acting |
| Maximum Operating Pressure | 145 PSI (1.0 MPa) |
| Minimum Operating Pressure | 7.3 PSI (0.05 MPa) |
| Mounting Type | Through-hole mounting |
| Port Size | Rc3/8" threaded ports |
| Piston Speed | 50-500mm/s |
| Auto Switch Compatible | Yes (Built-in magnet) |
| Construction | Single rod, compact design |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQ2B40-15D-XC18
Shelf K-65 tub-2
Bore Diameter 40 mm
Model CDQ2B40-15D-XC18
MPN CDQ2B40-15D-XC18
Type Compact Cylinder
