Product Description

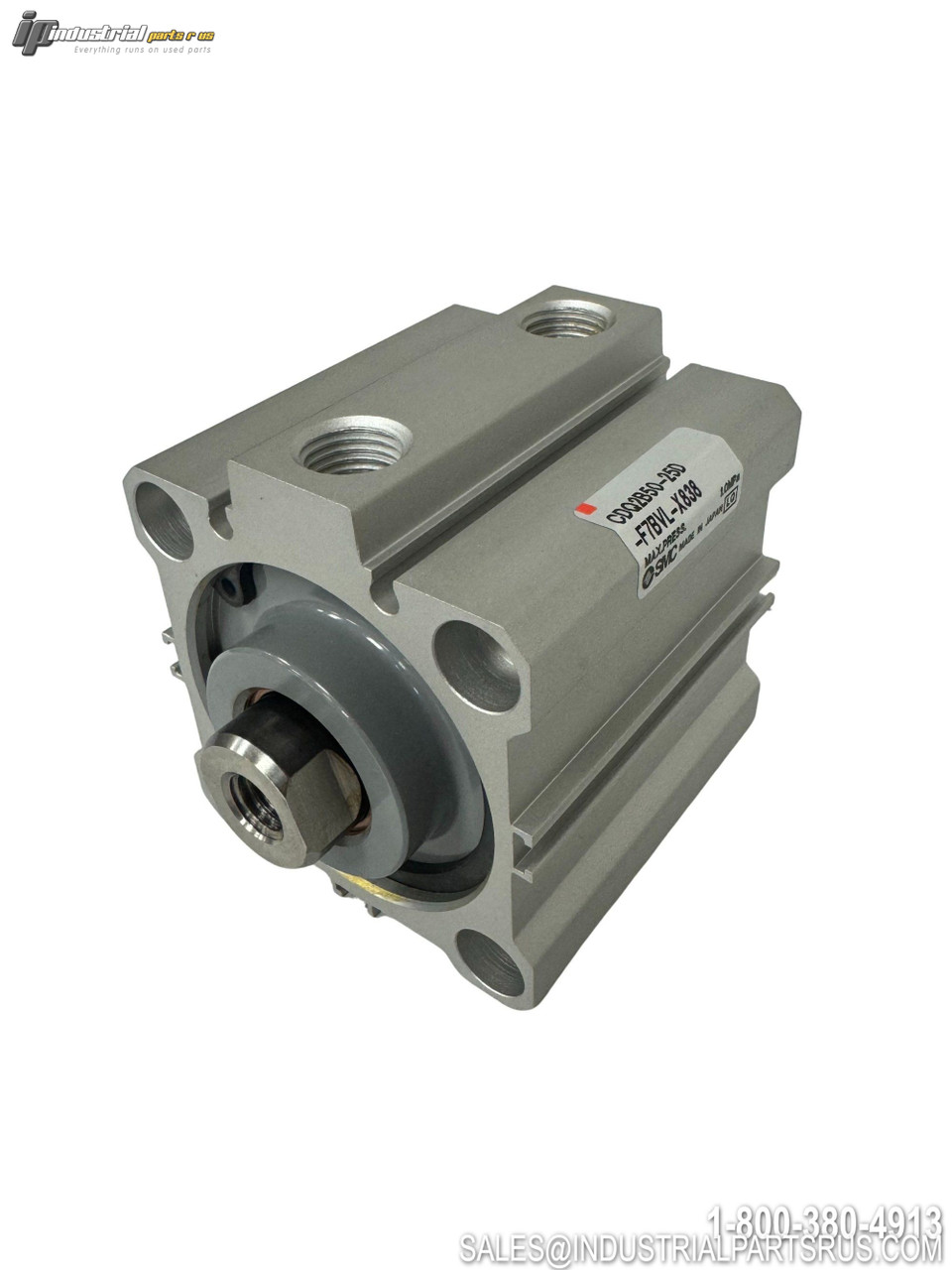

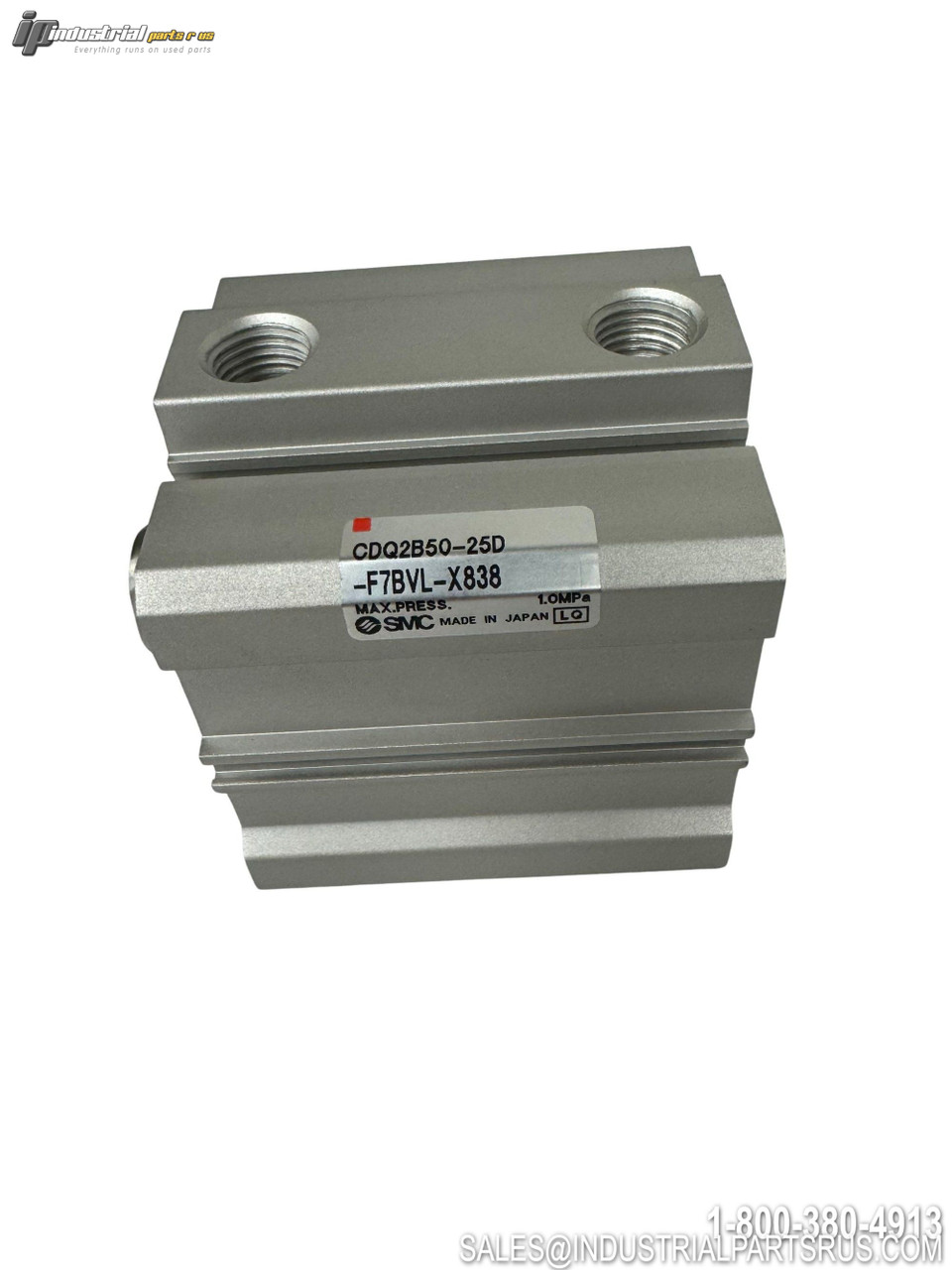

The SMC CDQ2B50-25D-F7BVL-X838 is a compact pneumatic cylinder from SMC's CQ2B series, featuring a space-saving design ideal for applications where installation space is limited. This double acting single rod cylinder includes an integrated auto switch (F7BVL-X838) for position feedback and comes with a built-in magnet for sensor detection.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B50-25D-F7BVL-X838 |
| Type | Pneumatic Cylinder |
| Series | CQ2B |
| Bore Diameter | 50mm |
| Stroke Length | 25mm |
| Cylinder Action | Double Acting |
| Rod Type | Single Rod |
| Mounting Style | Through-hole |
| Auto Switch | F7BVL-X838 |
| Built-in Magnet | Yes |
| Max Operating Pressure | 1.0 MPa (145 PSI) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Manufacturer SMC
Part Number CDQ2B50-25D-F7BVL-X838
Shelf B-10
Bore Diameter 50 mm
Model CDQ2B50-25D-F7BVL-X838
MPN CDQ2B50-25D-F7BVL-X838
Type Pneumatic Cylinder
