Product Description

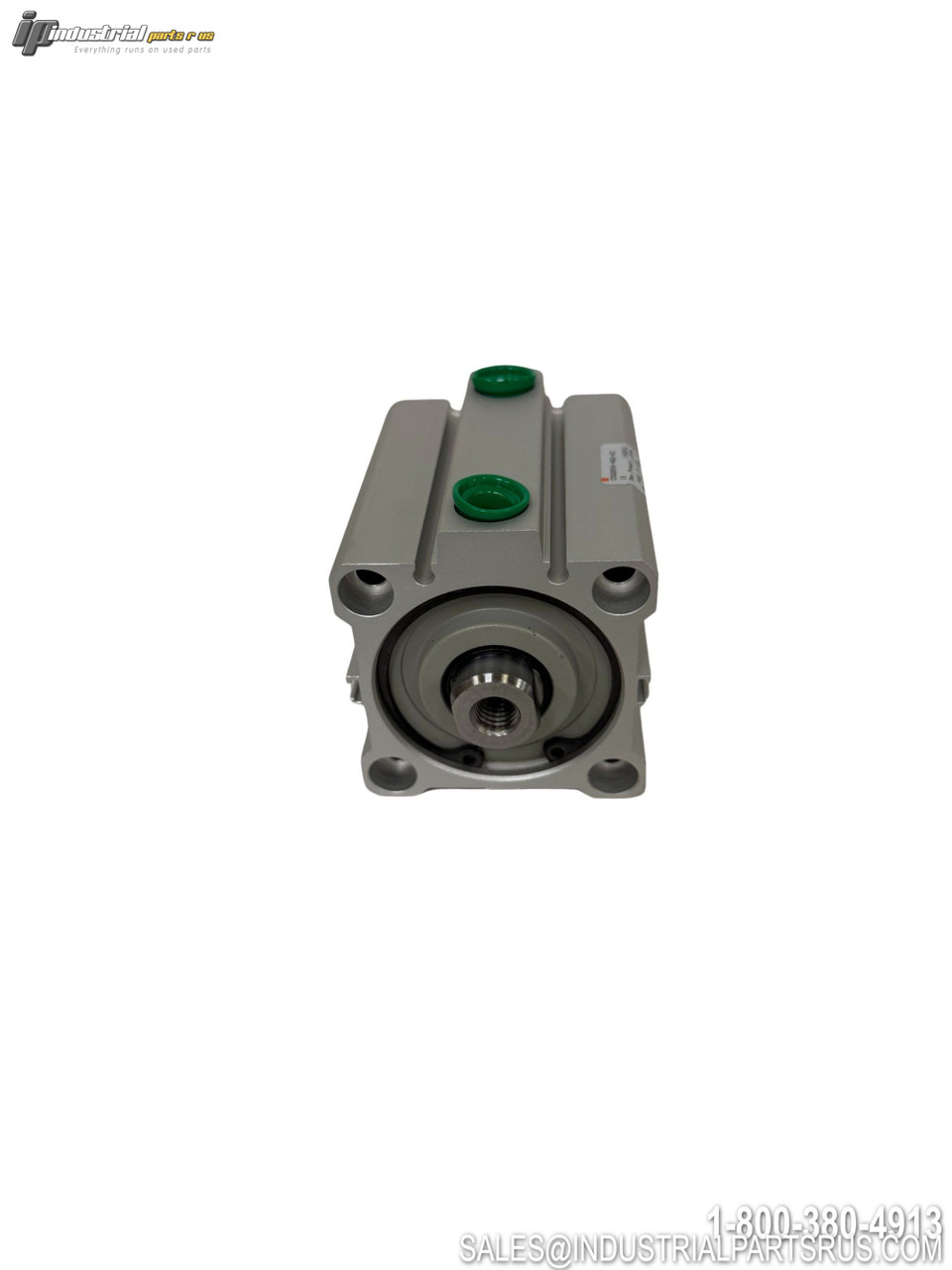

The SMC CDQ2B50-40D-XC is a compact double-acting pneumatic cylinder from SMC's CQ2/CDQ2 series. This cylinder features a 50mm bore diameter with 40mm stroke length and is part of the -XC special variant series. The compact design makes it ideal for space-constrained applications requiring reliable pneumatic actuation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B50-40D-XC |
| Cylinder Type | Compact Pneumatic Cylinder |
| Action | Double Acting |
| Bore Diameter | 50mm |
| Stroke Length | 40mm |
| Series | CQ2/CDQ2 |
| Mounting Style | Through-hole (B-type) |
| Maximum Operating Pressure | 145 PSI (1.0 MPa) |
| Minimum Operating Pressure | 19 PSI (0.13 MPa) |
| Magnet | Built-in (D-type) |
| Rod Configuration | Single Rod |
| Working Fluid | Air |
| Material | Aluminum Alloy |
| Variant | -XC Special Type |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SMC
Part Number CDQ2B50-40D-XC
Shelf B-15
Bore Diameter 50 mm
Model CDQ2B50-40D-XC
MPN CDQ2B50-40D-XC
Type Pneumatic Cylinder
