Product Description

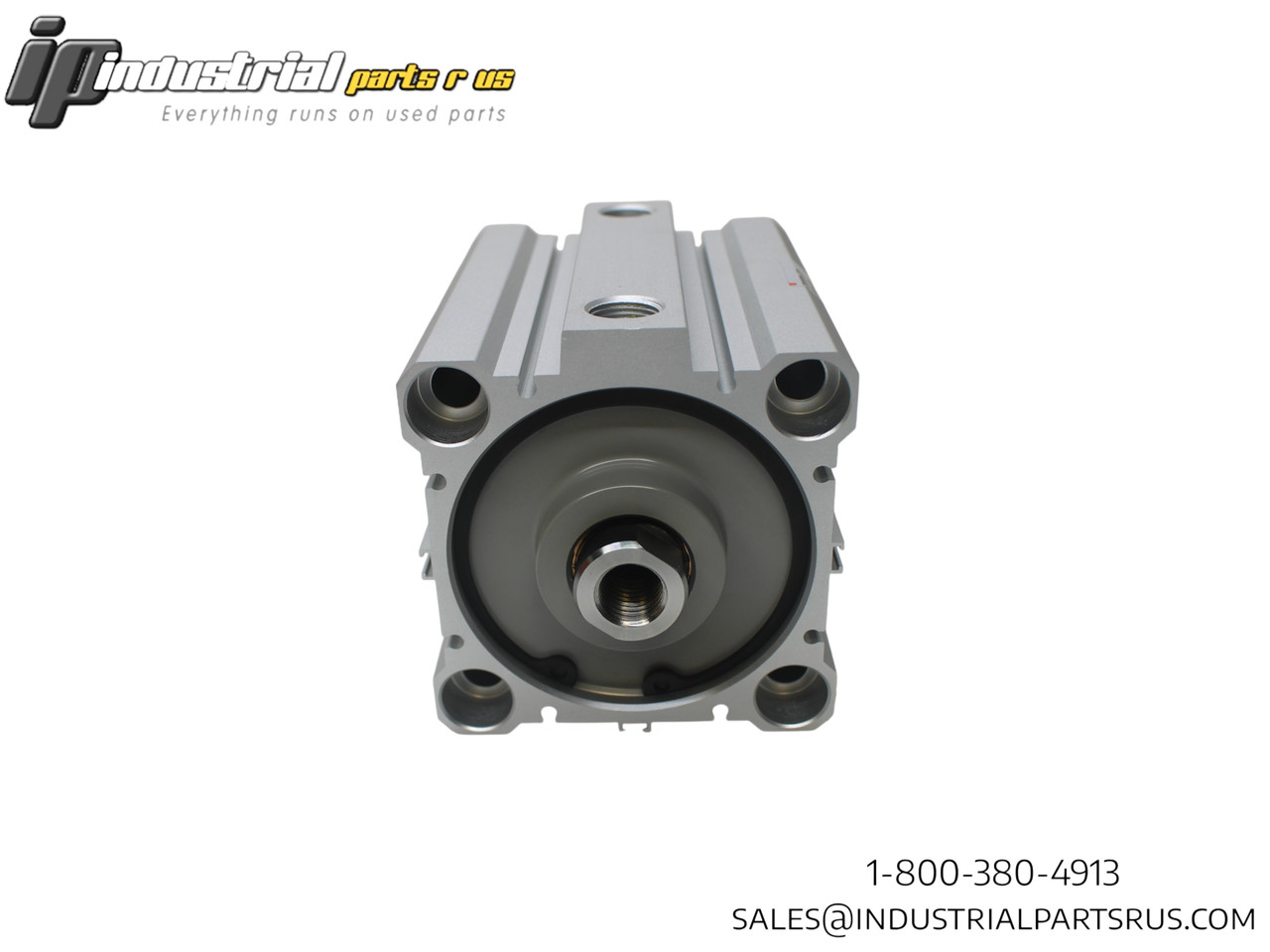

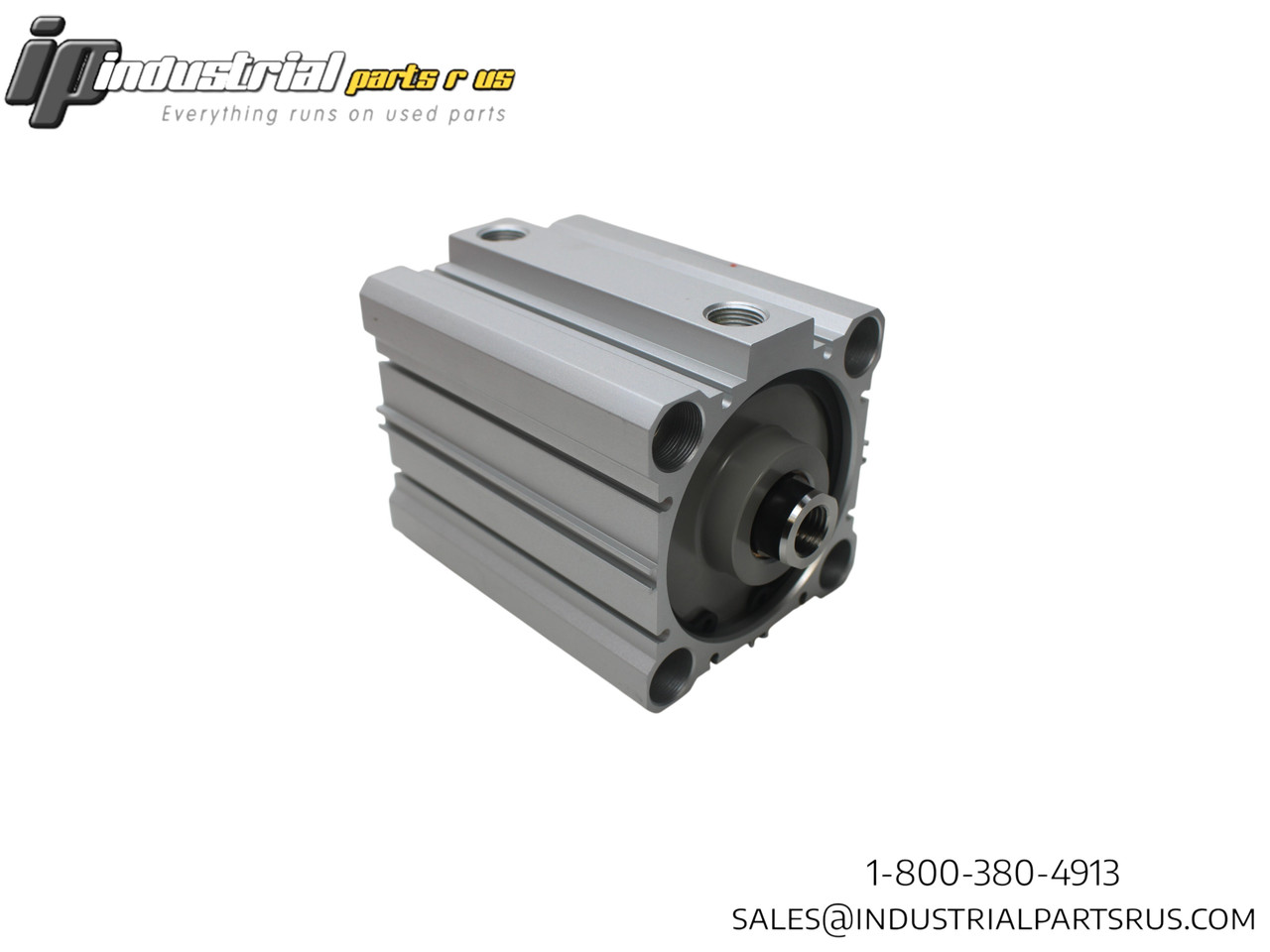

SMC CDQ2B80-75D-F7BVL-X838 is a CQ2 series compact pneumatic cylinder designed for space-saving industrial automation applications. This double-acting, single rod cylinder features an 80mm bore diameter and 75mm stroke length with built-in magnet and auto switch mounting grooves on four surfaces. The unit comes equipped with two solid-state auto switches with grommet lead wire termination, indicator lights, and 2-wire configuration for position detection.- Bore Size: 80mm
- Stroke Length: 75mm
- Action Type: Double Acting, Single Rod
- Maximum Operating Pressure: 1.0 MPa (145 PSI)
- Proof Pressure: 1.5 MPa (218 PSI)
- Minimum Operating Pressure: 0.05 MPa
- Port Thread Type: Rc/M Thread
- Mounting Style: Through-hole (Standard)
- Built-in Magnet: Yes
- Auto Switch Type: Solid State with Indicator Light
- Number of Auto Switches: 2 pieces
- Auto Switch Configuration: 2-wire, Perpendicular, Grommet
- Lead Wire Length: 3m
- Operating Voltage: DC24V (DC10-28V)
- Auto Switch Mounting: 4 Surfaces (32-100mm bore sizes)
- Operating Temperature: -10°C to +60°C (with auto switch)
- Lubrication: Not Required (Non-lube)
- Manufacturer: SMC Corporation
Other Details
New Item, New Condition, Surplus Inventory, 30 Day WarrantyProduct Videos
Custom Field
GTIN 721814247978
Country/Region of Manufacture Japan
Max. Mpa 1.0MPa
Max. PSI 145PSI
Max. Operating Pressure 1.0 MPa (145PSI)
Useraction Double Acting
Manufacturer SMC
Bore 80mm
Max. Pressure 1.0 MPa (145PSI)
Part Number CDQ2B80-75D-F7BVL-X838
Shelf B-12
Stroke 75mm
Bore Diameter 80mm
Model CDQ2B80-75D-F7BVL-X838
MPN CDQ2B80-75D-F7BVL-X838
