Product Description

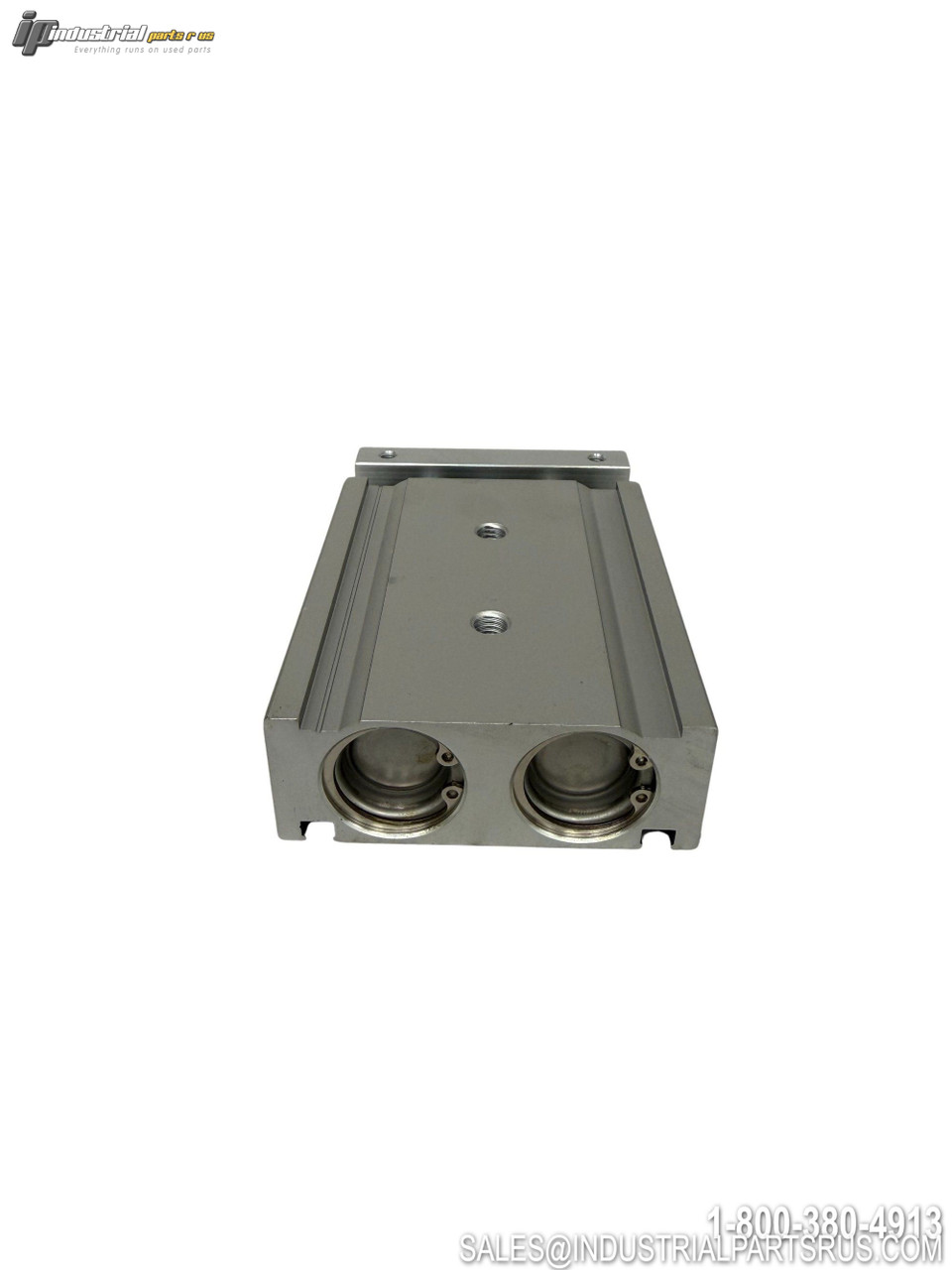

The SMC CXSM25-30 is a dual rod pneumatic cylinder from SMC's CXS series with 25mm bore and 30mm stroke. This compact cylinder features high-precision guide function specifically designed for pick & place applications. The CXS series is very compact and has a very accurate non-rotating specification, making it suited for accurate pick-and-place applications or light duty material handling.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CXSM25-30 |
| Product Series | CXS Series |
| Cylinder Type | Dual Rod Guided Cylinder |
| Bore Diameter | 25mm |
| Stroke Length | 30mm |
| Bearing Type | Slide Bearing |
| Port Thread Type | Rc 1/8 |
| Action Type | Double Acting |
| Auto Switch | Without Auto Switch (With Built-in Magnet) |
| Cushion Type | Rubber Bumper |
| Application | Pick & Place Applications |
| Mounting Type | 3-Direction Mounting Capable |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CXSM25-30
Shelf B-10
Bore Diameter 25 mm
Model CXSM25-30
MPN CXSM25-30
Type Pneumatic Cylinder
