Product Description

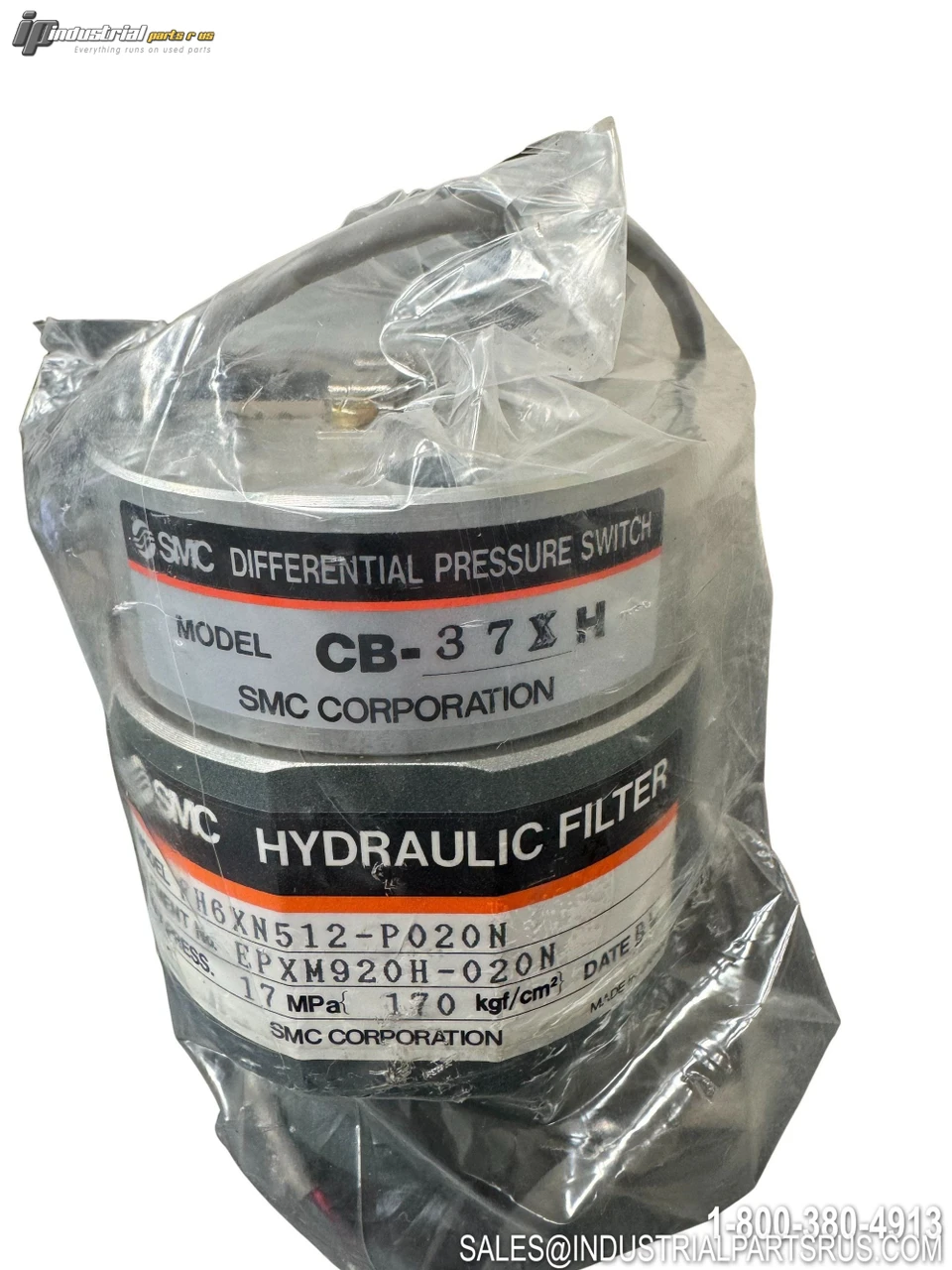

The SMC FH6XN512-P020N is a special configuration hydraulic filter from SMC's FH Series, designed for use in hydraulic fluid circuits to protect system components from contamination. It features a compact, lightweight aluminum die-cast housing with a 20-micron nominal paper filtration element suitable for petroleum-based and phosphoric ester hydraulic fluids, with NBR O-ring seals. The unit is equipped with a differential pressure indicator (option code 512) that visually signals when the element requires replacement, facilitating maintenance and helping prevent pump cavitation damage. Element replacement is performed via a cover-open design — no pipe disconnection required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | FH6XN512-P020N |
| Series | FH Series (Special / SPL) |
| Product Type | Hydraulic Filter |
| Filter Configuration | Special (SPL) — Custom/Made-to-Order |
| Element Type | Paper Element |
| Filtration Rating (Nominal) | 20 µm |
| O-Ring / Seal Material | NBR (N suffix) |
| Compatible Hydraulic Fluid | Petroleum, Phosphoric Ester |
| Housing Material | Aluminum (Die Cast) |
| Differential Pressure Indicator | Yes (Option Code 512) |
| Max Operating Pressure | 3.5 MPa (FH suction series standard) |
| Element Replacement | Cover-open type — no pipe disconnection required |
| Drain Outlet | M16 large drain exhaust outlet |
| RoHS Compliant | Yes |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number FH6XN512-P020N
Shelf K-10
Model FH6XN512-P020N
MPN FH6XN512-P020N
Type Hydraulic Filter
