Product Description

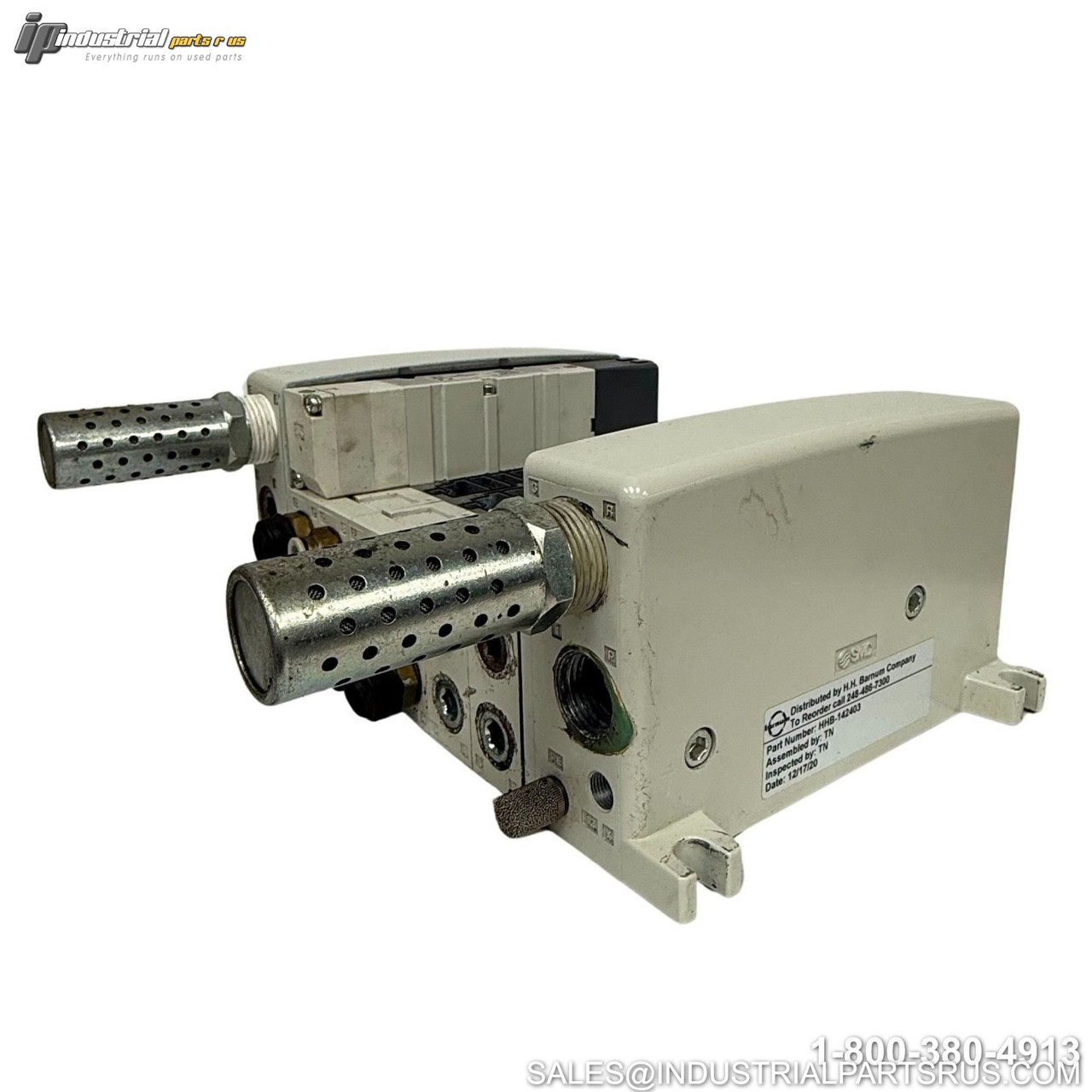

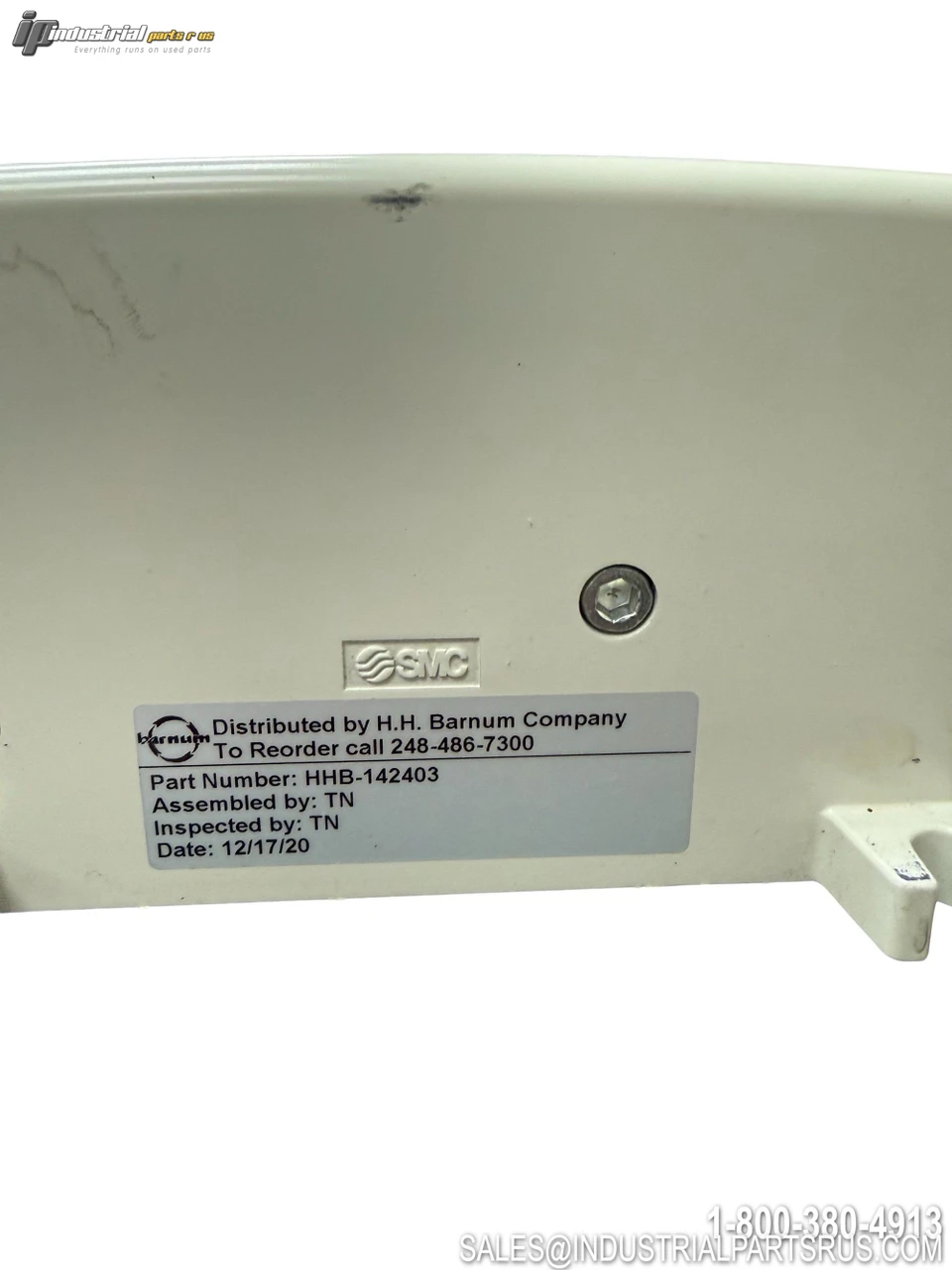

The SMC HHB-142403 is a pneumatic valve manifold assembly produced under the SMC Barnum custom assembly program, in which H.H. Barnum — an authorized SMC distributor — configures manifold valve blocks using genuine SMC components. These assemblies are used for organized air supply routing and control across multiple pneumatic actuators in industrial automation systems. The HHB series encompasses a range of custom-built manifold configurations, and the exact station count, valve series, port sizes, and electrical specifications of HHB-142403 are unique to its build configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | HHB-142403 |
| Manufacturer | SMC Corporation / H.H. Barnum Company |
| Product Type | Pneumatic Valve Manifold Assembly |
| Series | HHB (SMC Barnum Custom Assembly) |
| Assembly Type | Custom-Configured Manifold Valve Block |
| Operation | Solenoid |
| Valve Ways & Position | 5/2 |
| Application | Pneumatic air distribution and valve control in industrial automation |
| Body Material | Aluminum (typical for SMC manifold assemblies — confirm on label) |
| Number of Stations | See unit / build documentation |
| Valve Series | See unit / build documentation |
| Port Size | See unit / build documentation |
| Coil Voltage | See unit label |
| Compatible With | SMC pneumatic solenoid valve systems |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Manufacturer SMC
Part Number HHB-142403
Series HHB
Shelf A-9
Model HHB-142403
Port Size See unit documentation
Coil Voltage See unit label
MPN HHB-142403
Type Manifold
