Product Description

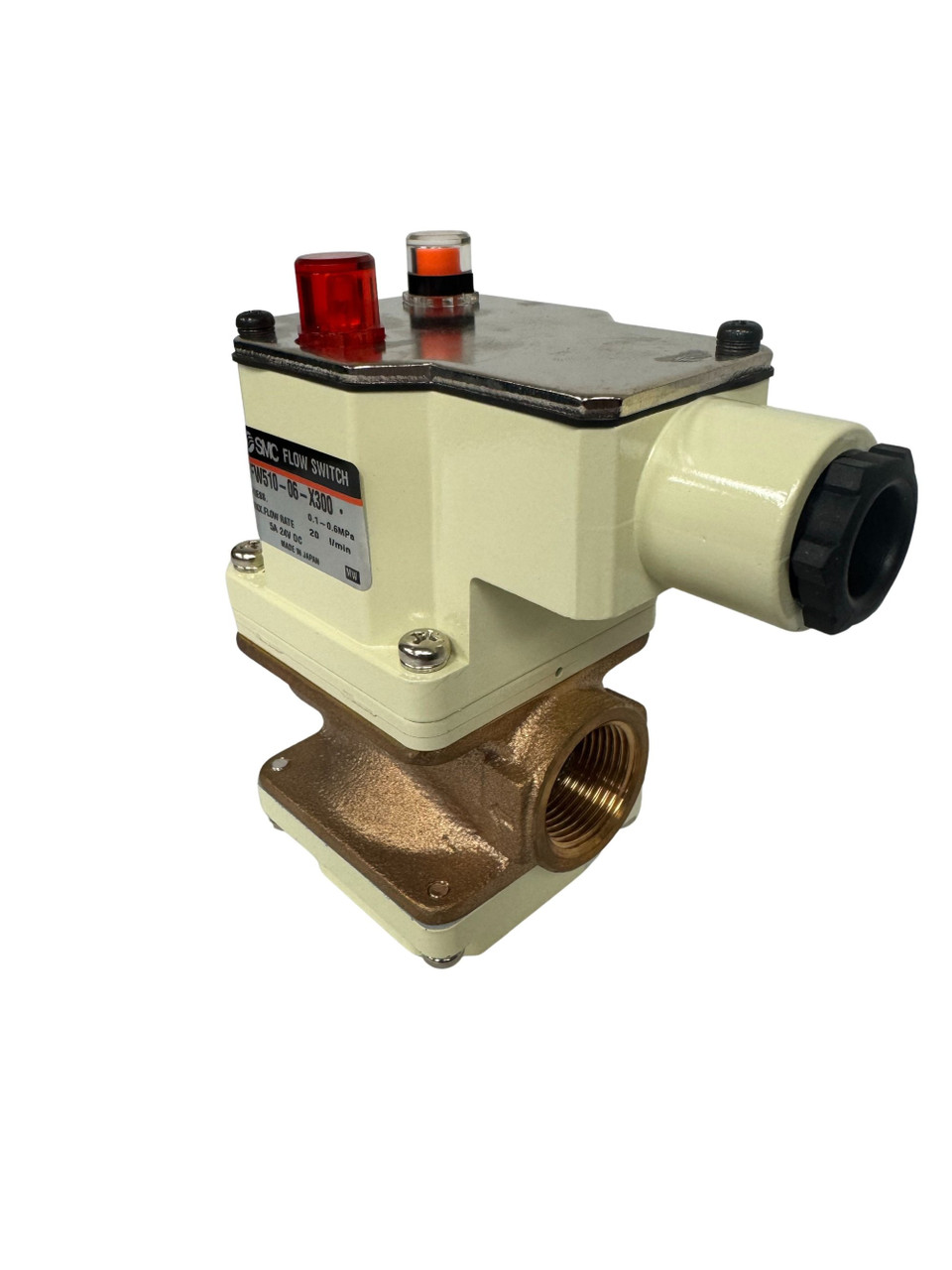

The SMC IFW510-06-X300 is a digital flow switch from the IFW series that detects and confirms liquid flow. It is applicable to general industrial machines and various other applications, and will detect the flow of water and other non-corrosive fluids. The flow body houses a diaphragm responsive to flow rate, with a connected rod and lever mechanism that triggers a micro switch at a manually adjustable set point.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | IFW510-06-X300 |
| Series | IFW5 |
| Sensor Type | Diaphragm Flow Switch |
| Application | Non-Corrosive Liquids |
| Flow Detection Range | 1-50 L/min (Series Range) |
| Port Sizes Available | 3/8, 1/2, 3/4 inch |
| Thread Types Available | Rc(PT), NPT, G(PF) |
| Operating Pressure Range | 0.1 to 0.6 MPa |
| Temperature Rating | -5 to 60°C |
| Withstand Voltage | 1500 VAC (One Minute) |
| Flow Setting | External Screwdriver Adjustment |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Sensor Type Diaphragm Flow Switch
Manufacturer SMC
Part Number IFW510-06-X300
Shelf A-16
Model IFW510-06-X300
MPN IFW510-06-X300
Type Flow Sensor
