Product Description

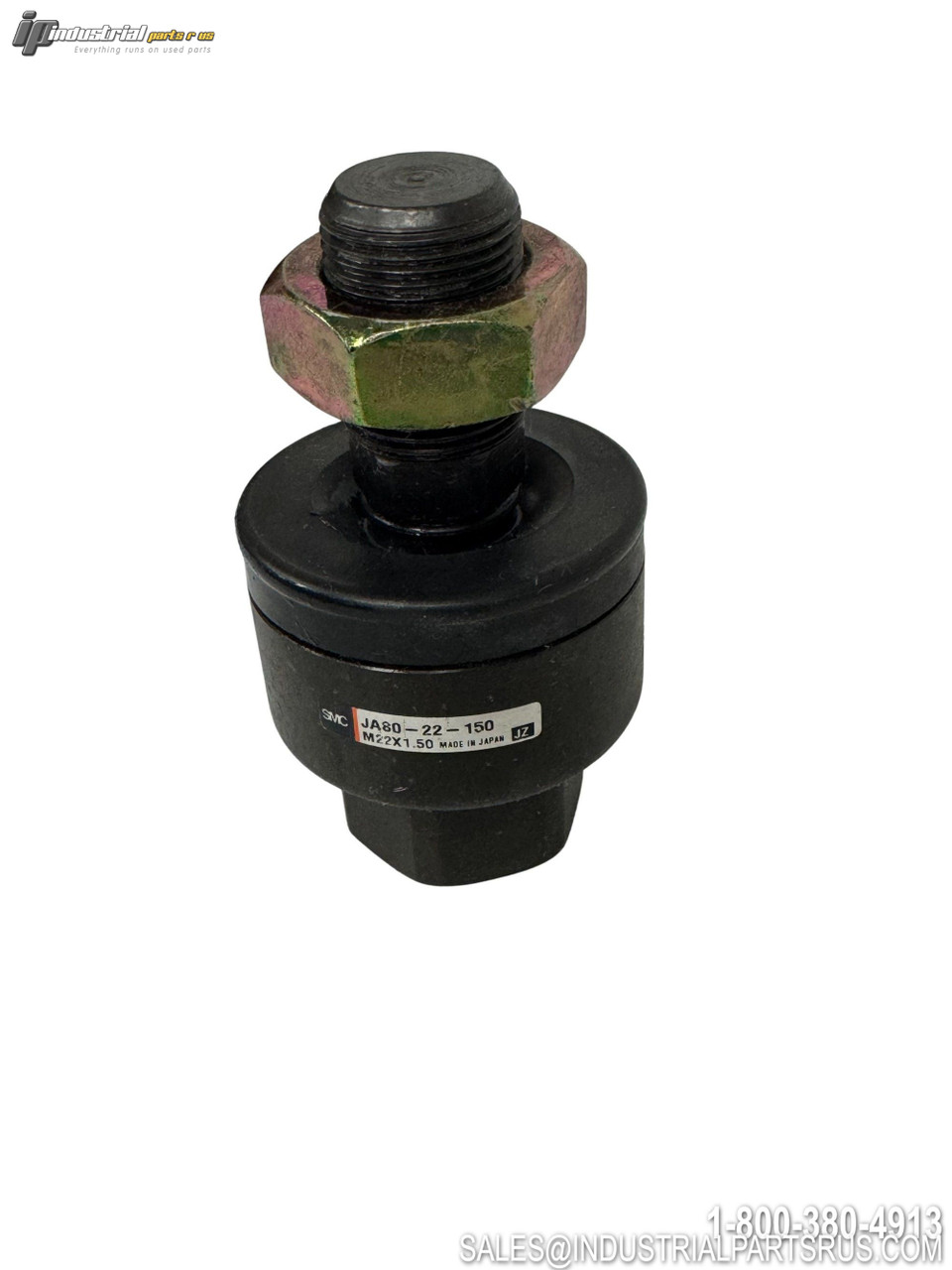

The SMC JA80-22-150 is a standard type floating joint designed for pneumatic cylinder applications. This basic mount floating joint accommodates 80mm bore cylinders and features M22x1.5 thread connections, providing reliable misalignment compensation in pneumatic automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | JA80-22-150 |
| Series | JA |
| Product Type | Floating Joint |
| Mounting Style | Basic Style |
| Applicable Cylinder Bore Size | 80mm |
| Thread Nominal Size | M22x1.5 |
| Rotation Angle | ±5° |
| Material | Carbon Steel |
| Weight | 1.279 lb |
| Application | Pneumatic Cylinders |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number JA80-22-150
Shelf A-6
Model JA80-22-150
MPN JA80-22-150
Type Pneumatic Fitting & Accessories
