Product Description

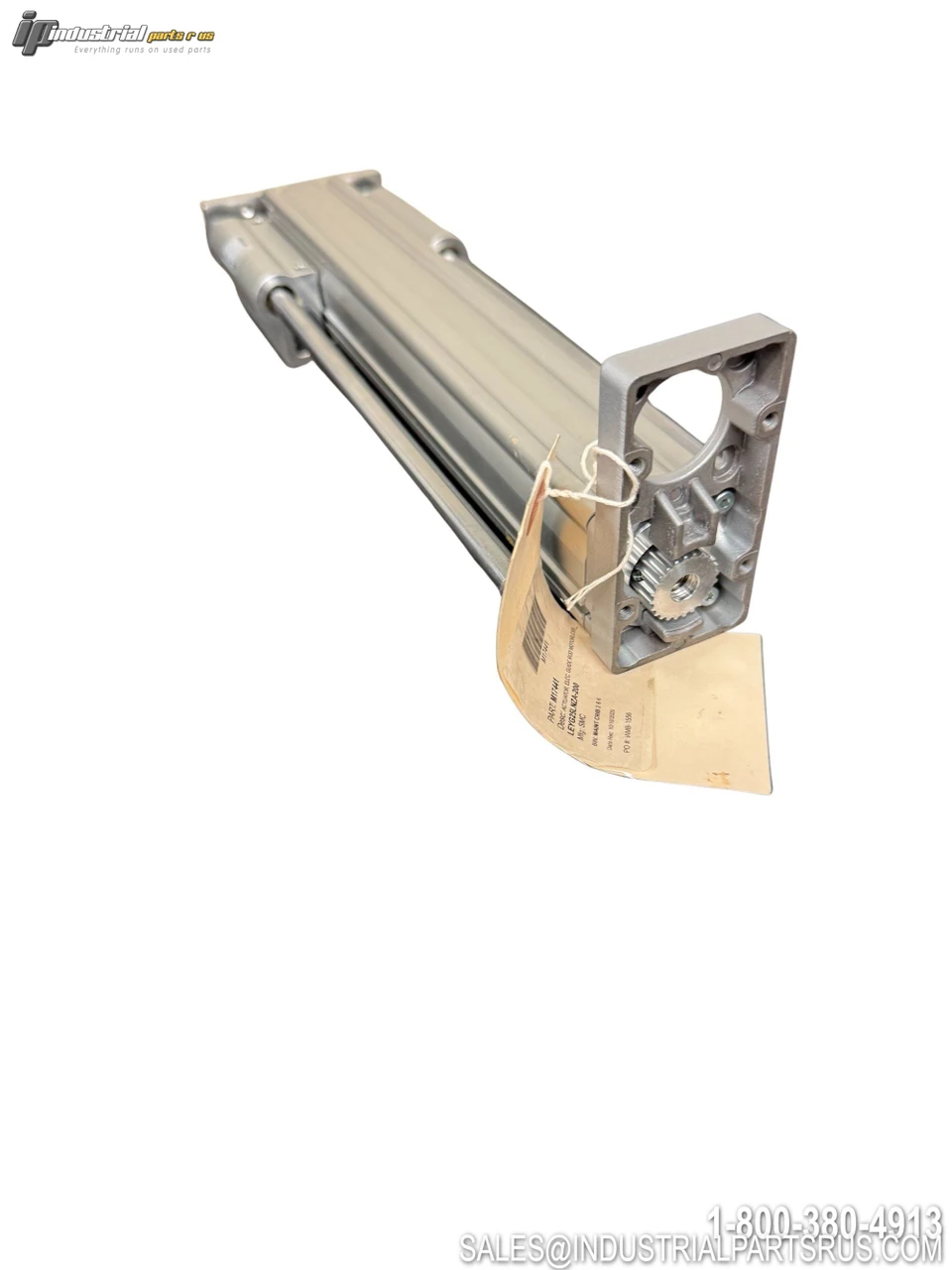

The SMC LEYG25LNZA-200 is a Size 25 motorless guide rod type electric actuator from SMC's LEYG series. It features a ball screw drive mechanism paired with a bolt-on bearing block with double guide rods that resist rotational and lateral loads. The motorless (N) configuration accepts a wide variety of third-party AC servo motors via Mounting Type Z (NZ) brackets, making it highly flexible for custom motion system designs.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |

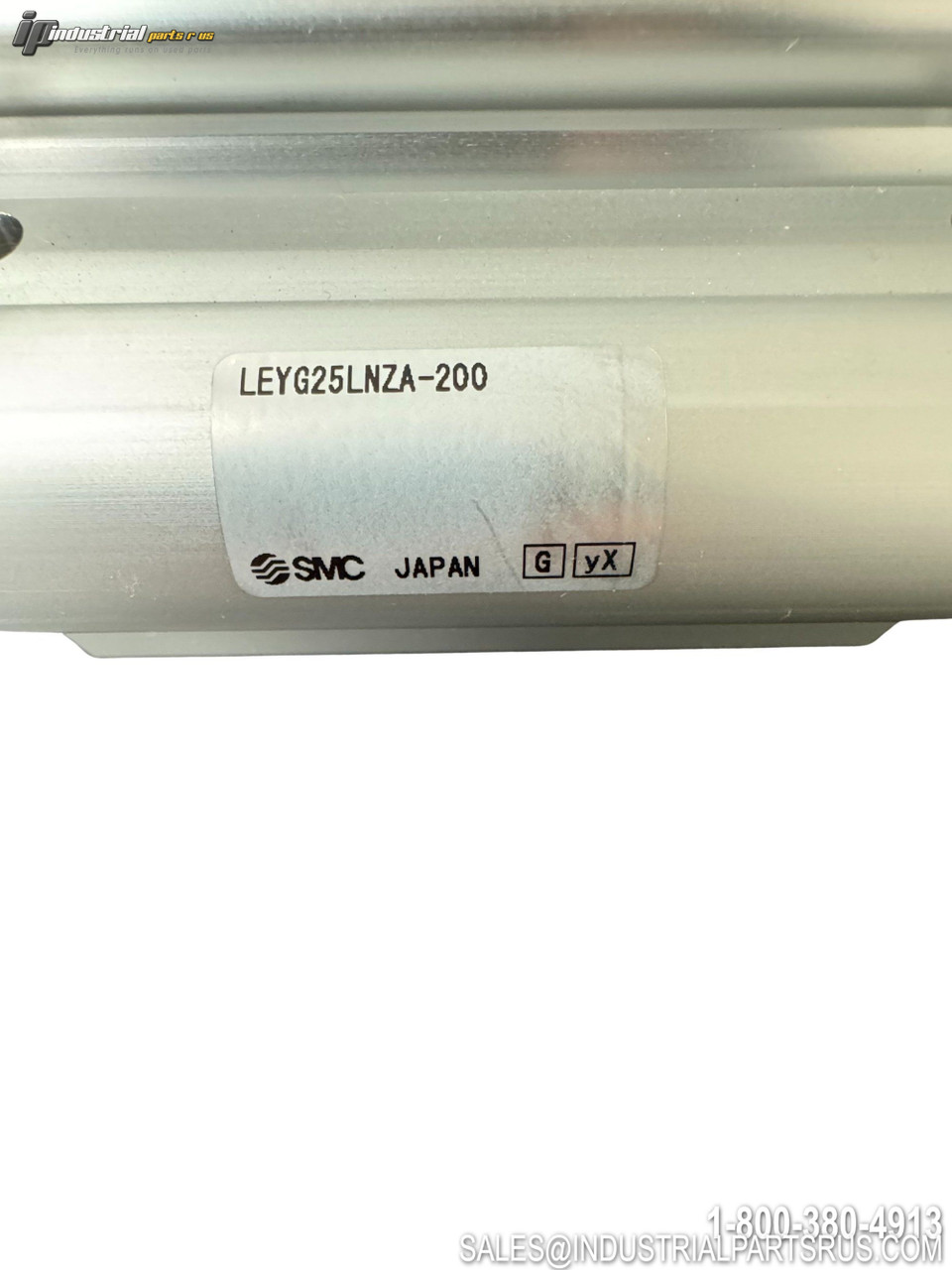

| Model / Part Number | LEYG25LNZA-200 |
| Series | LEYG |
| Product Type | Electric Actuator / Guide Rod Type / Motorless |
| Body Size | 25 |
| Stroke | 200 mm |
| Lead (Screw) | 12 mm (Lead Symbol A) |
| Bearing Type | Ball Bushing Bearing |
| Motor Mounting Position | Top Mounting |
| Motor Configuration | Motorless (N) — Motor Not Included |
| Motor Mounting Type | Type Z (NZ) |
| Drive Method | Ball Screw + Belt |
| Maximum Pushing Force | 485 N |
| Maximum Speed | 900 mm/s |
| Maximum Acceleration | 5,000 mm/s² |
| Maximum Work Load (Horizontal) | 60 kg |
| Maximum Work Load (Vertical) | 44 kg |
| Positioning Repeatability | ±0.02 mm |
| Non-Rotating Accuracy of Plate | ±0.05° (ball bushing bearing) |
| Stroke Range Available | 30 to 300 mm |
| Operating Temperature Range | 5 to 40°C |
| Compatible Motor Types | AC Servo (Mitsubishi, Yaskawa, Sanyo Denki, Omron, Panasonic, FANUC, Rockwell Automation, and others) |
| Compatible Drivers | LECSS-T, LECY□ (when motor is installed) |
| Body Material | Aluminum Alloy |
| Approx. Weight (200mm stroke, Ball Bushing) | ~2.90 kg (without lock) |
| Accuracy Class | Basic |
| Impact Resistance | 50 m/s² |
| Vibration Resistance | 20 m/s² |
| RoHS Compliant | Yes |
