Product Description

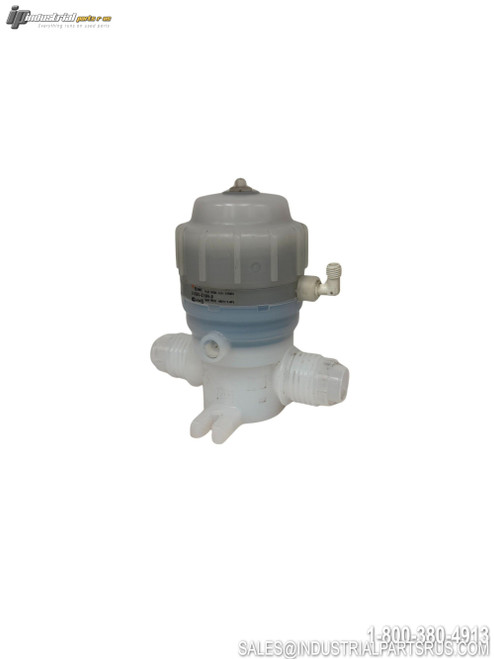

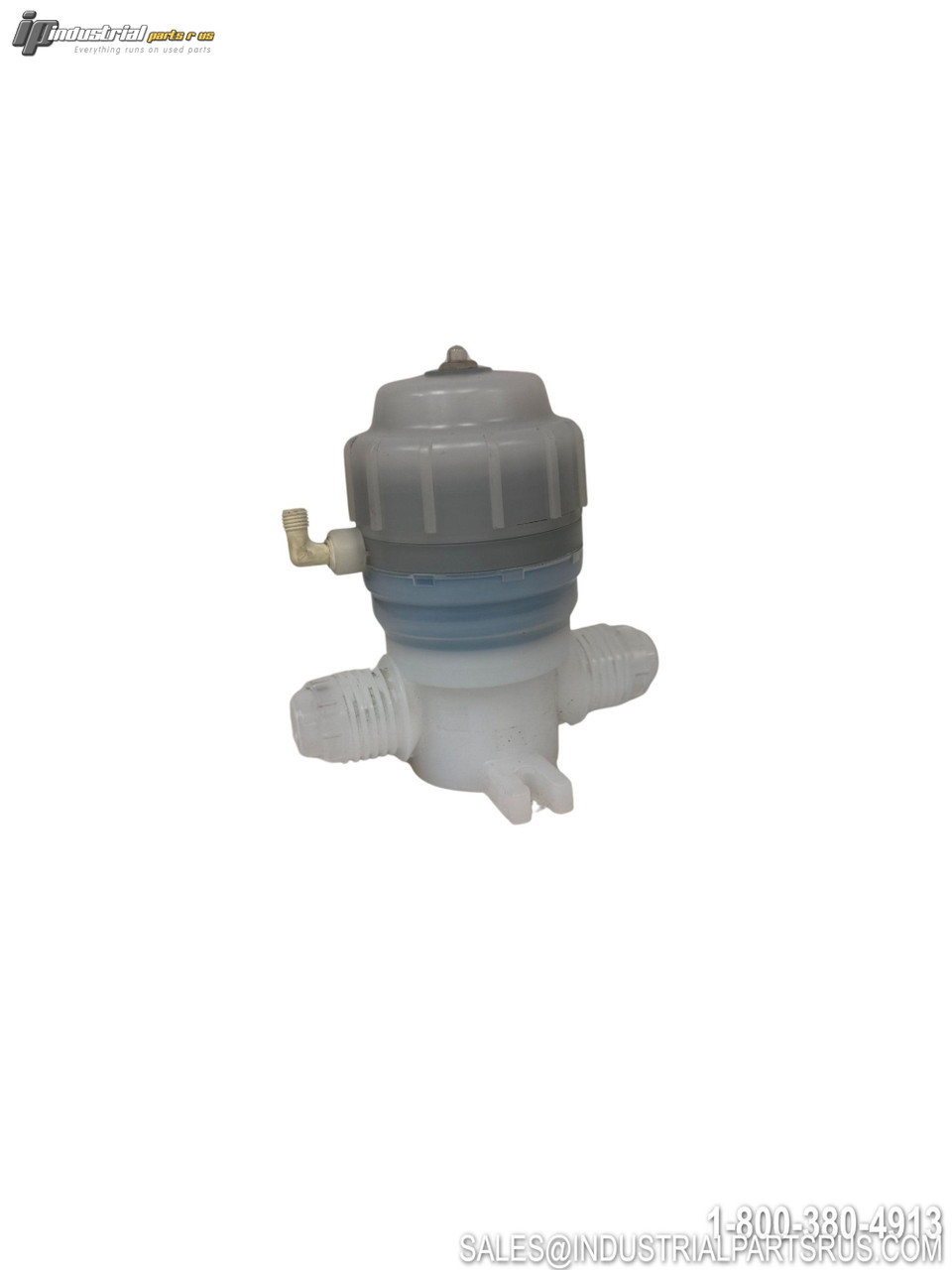

The SMC LVQ50-Z19N-9 is a 2-port, 2-way, 2-position, air-operated, normally closed (N.C.) high purity chemical valve from the LVQ-Z (Viper) series, featuring a non-metallic exterior construction with a high-density PVDF body and PTFE diaphragm. It uses the LQ3 Flare Integral Fitting (Hyper Fitting) for 3/4" (19mm) tube O.D. connections with triple sealing, and includes a 1/8 NPT pilot port. The LVQ guide ring eliminates lateral poppet motion to reduce internal leakage, and the piston damper minimizes impact-induced particle generation — making this valve ideal for semiconductor, pharmaceutical, and high-purity chemical processing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | LVQ50-Z19N-9 |
| Series | LVQ-Z (Viper Valve — Flare Integral Fitting Type) |
| Product Type | 2-Port High Purity Chemical Valve, Air Operated |
| Valve Configuration | Normally Closed (N.C.) |
| Fitting Type | LQ3 Flare Integral Fitting (Hyper Fitting) |
| Tube O.D. (Inch) | 3/4" |
| Tube O.D. (Metric) | 19 mm |
| Orifice Diameter | ø16 mm |
| Flow Characteristics (Cv) | 5.0 |
| Flow Characteristics (Av) | 120 × 10⁻⁶ m² |
| Pilot Port Thread Type | NPT 1/8 |
| Operating Pressure (Standard) | -98 kPa to 0.3 MPa |
| Withstand Pressure | 0.5 MPa |
| Pilot Air Pressure | 0.3 to 0.5 MPa |
| Body Material | PVDF (High Density Polyvinylidene Fluoride) |
| Diaphragm Material | PTFE |
| Actuator Construction | Non-metallic exterior (no metal screws on actuator body) |
| Sealing Construction | Triple sealing (LQ3 Flare Integral Fitting) |
| Body Class | 5 (LVQ50) |
| Suitable Media | High purity chemicals, acids, bases, de-ionized water |
| Application | Semiconductor, pharmaceutical, high-purity chemical processing |
