Product Description

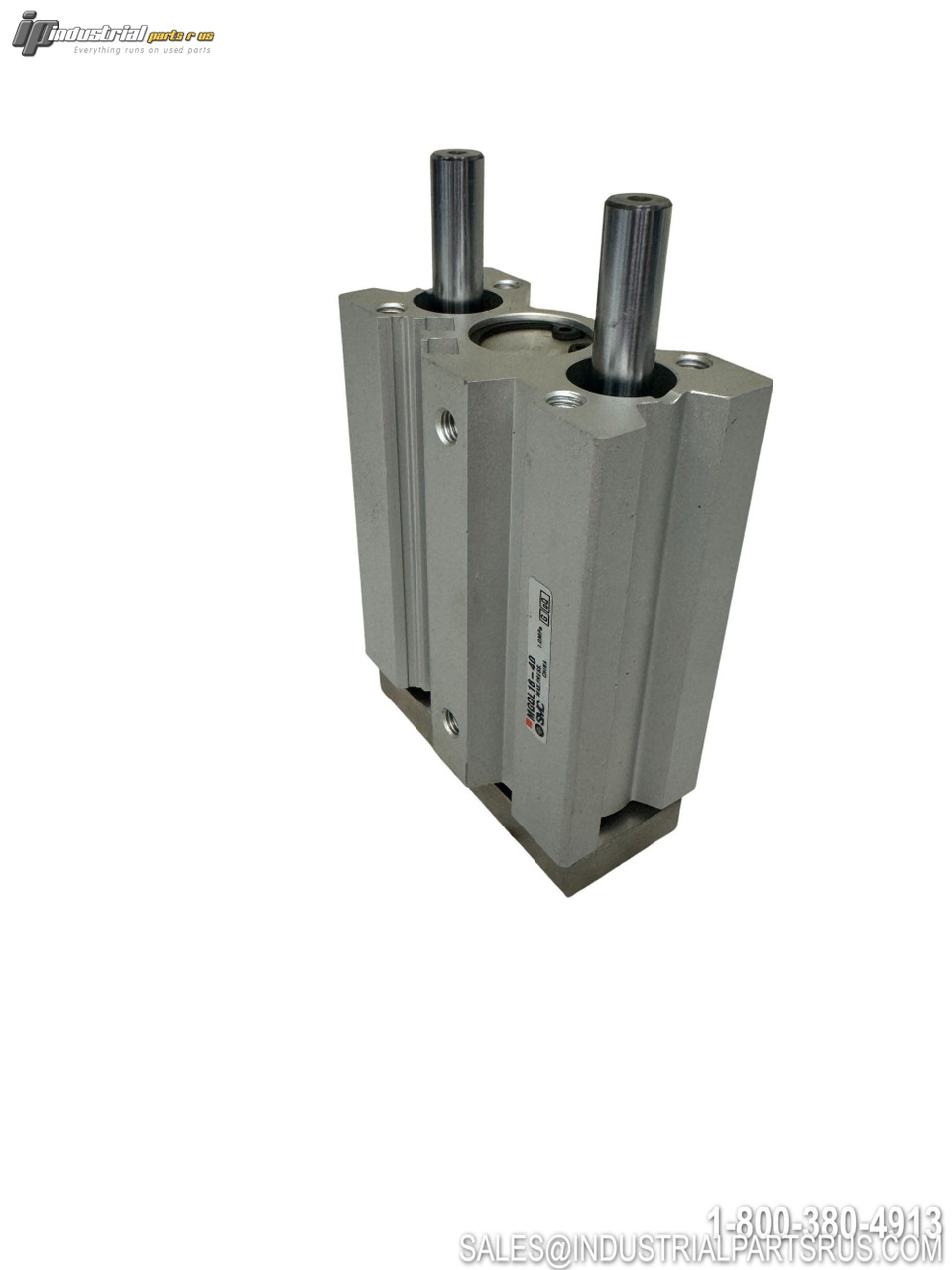

The SMC MGOL16-40 is a compact pneumatic guided cylinder featuring a 16 mm bore and 40 mm stroke length. Based on SMC's guided cylinder naming conventions, the "L" designation indicates a high-precision ball bushing bearing type, which provides smooth, stable travel resistance suitable for pushing and lifting applications. The integrated guide shaft design isolates load bearing from the actuator rod and seals, delivering high non-rotating accuracy in a space-saving form factor.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGOL16-40 |
| Product Type | Compact Guided Cylinder |
| Series | MGO |
| Bore Diameter | 16 mm |
| Stroke Length | 40 mm |
| Bearing Type | Ball Bushing (High Precision) |
| Cylinder Action | Double Acting |
| Fluid / Medium | Air |
| Port Size | M5 x 0.8 (typical for 16mm bore SMC guided cylinders) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) — see label |
| Minimum Operating Pressure | 0.12 MPa (17 psi) — see label |
| Non-Rotating Accuracy | ±0.10° (typical for 16mm bore ball bushing SMC guided cylinders) |
| Ambient / Fluid Temperature | -10 to 60°C (14 to 140°F) — see label |
| Cushion Type | Rubber Bumper (standard) |
| Auto Switch Compatibility | Built-in magnet; auto switch mountable |
| Body Material | Aluminum Alloy (typical) |
| Manufacturer | SMC Corporation |
Note: Specifications marked "see label" or "typical" are inferred from SMC's guided cylinder series naming conventions and closely related confirmed models (MGQL16-40, MGPL16-40Z). The exact MGOL series was not found in publicly available English-language SMC catalogs. Please verify all specifications against the physical product label or SMC documentation before use.
We warranty all items for 30 days from date of purchase.
