Product Description

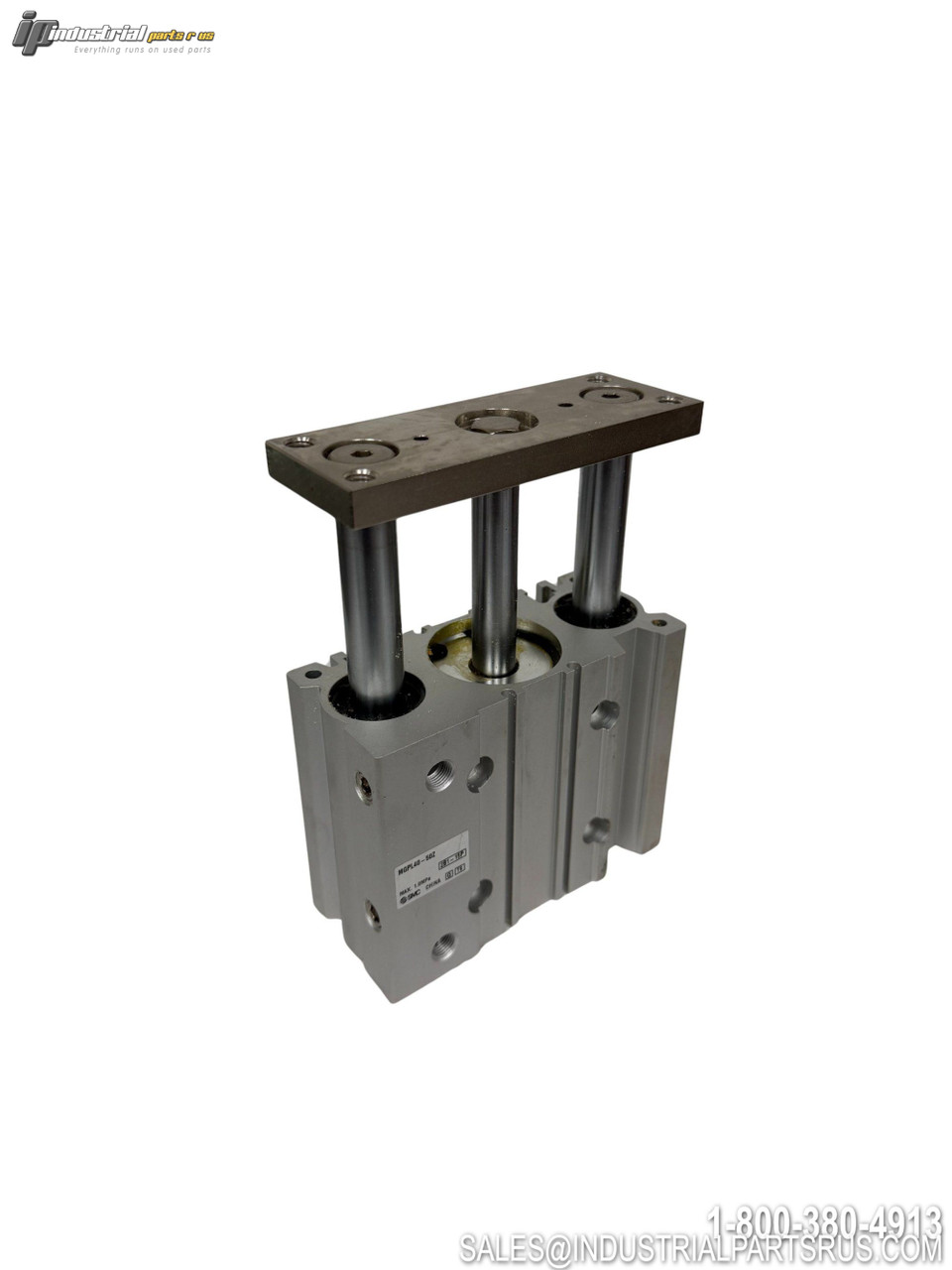

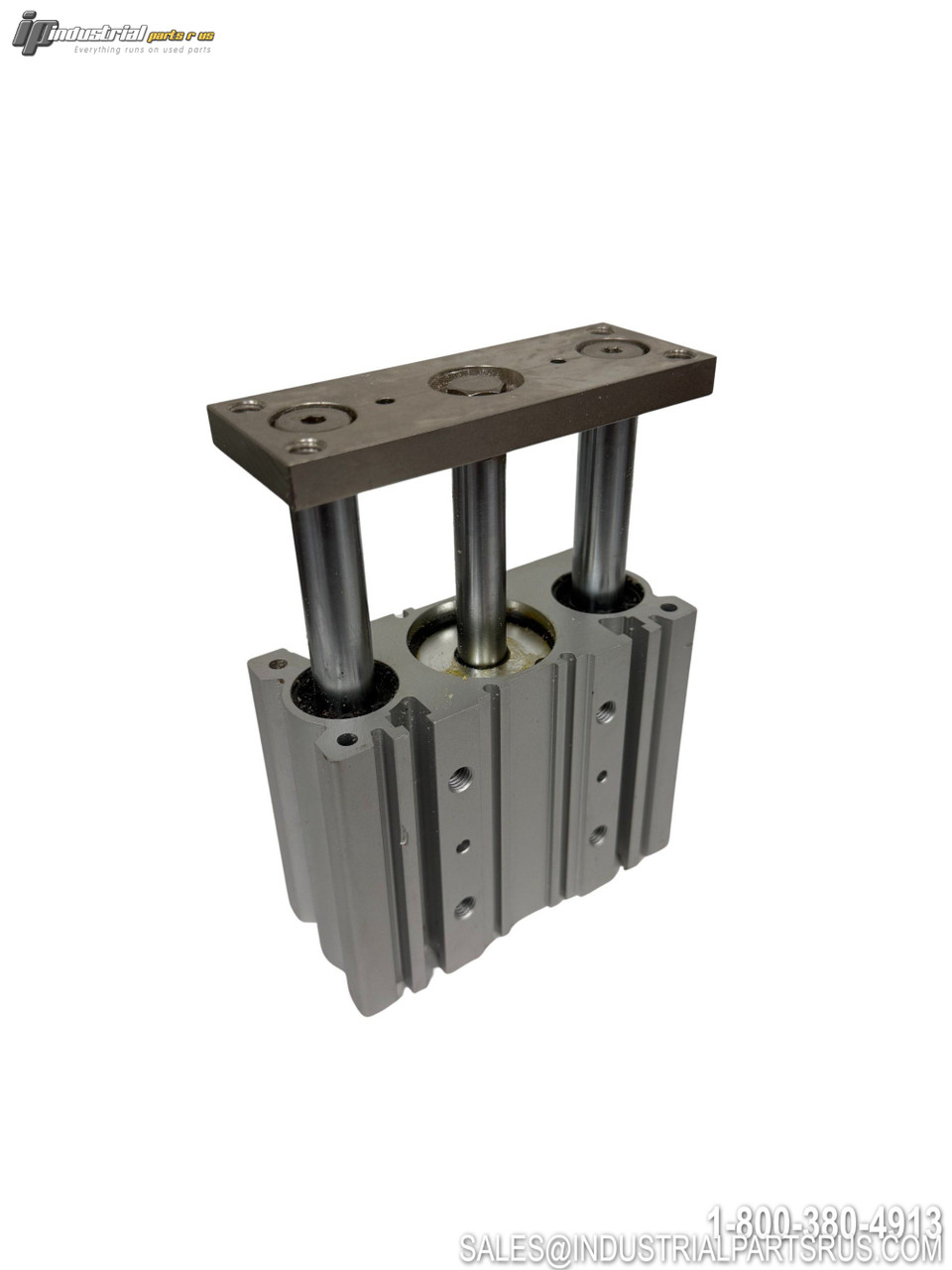

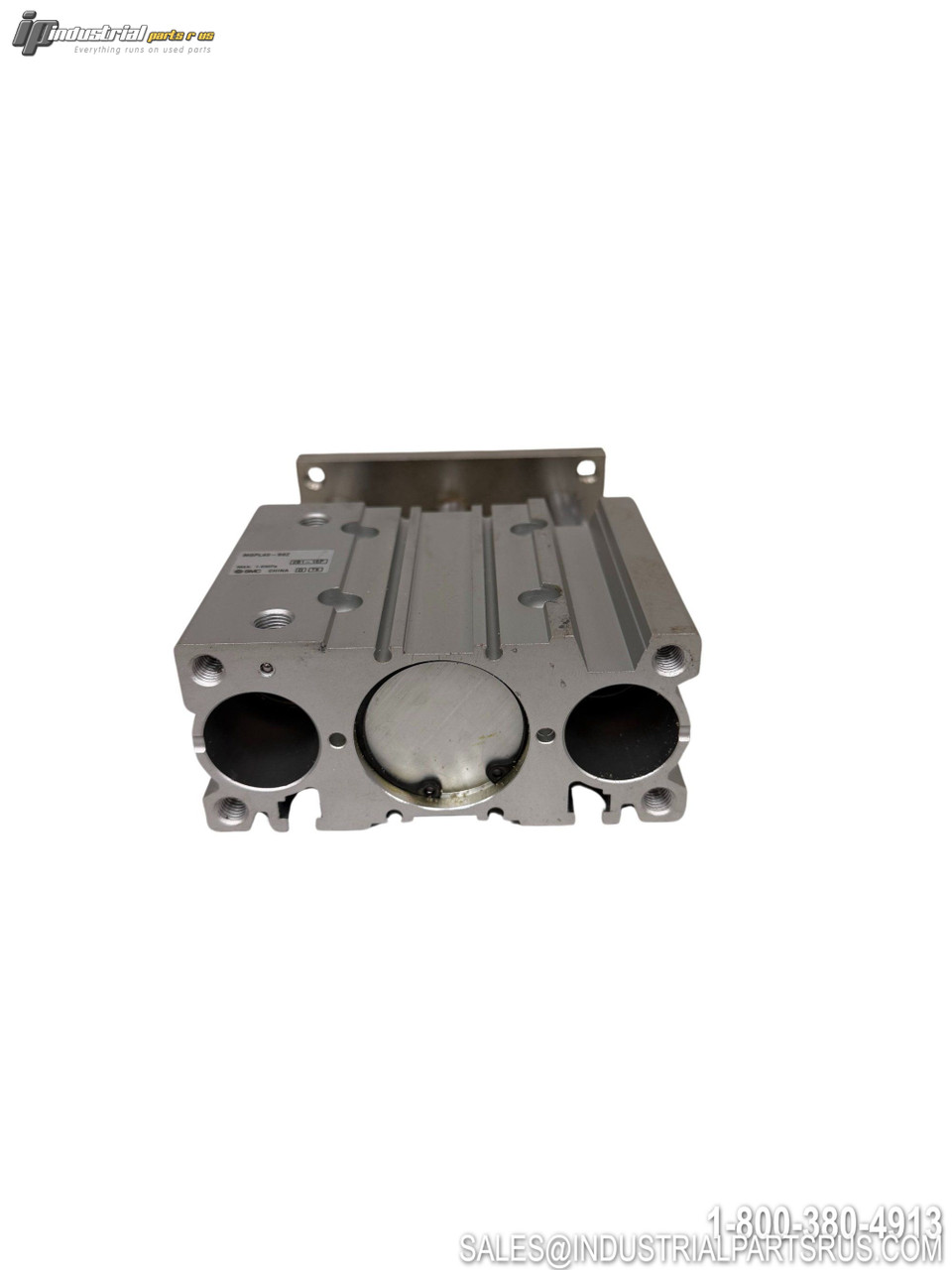

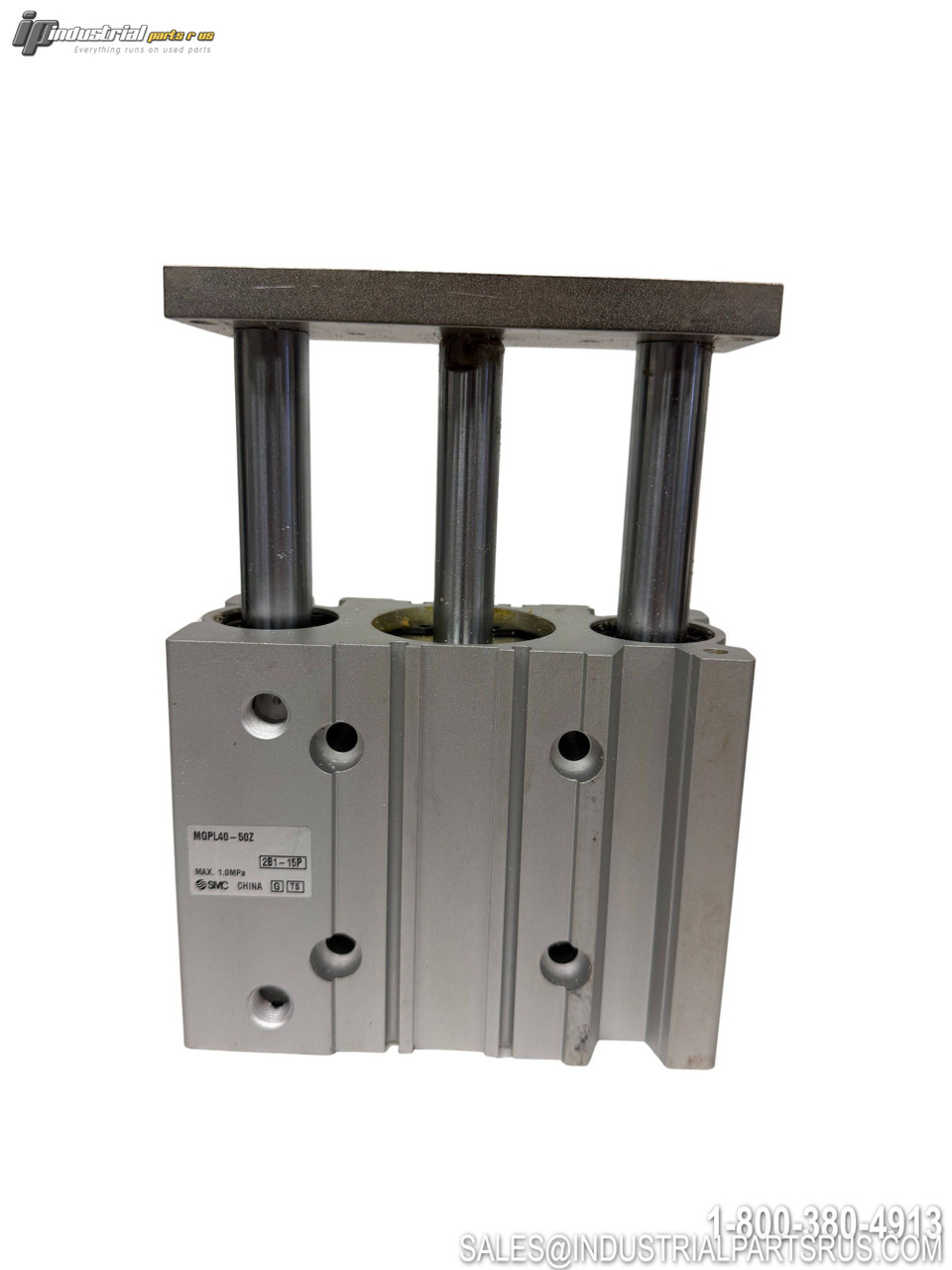

The SMC MGPL40-50Z is a compact guided cylinder from the MGP-Z series featuring a 40mm bore and 50mm stroke. It incorporates internal guide shafts with high-precision ball bushing bearings to isolate load bearing from the actuator rod and seals, delivering smooth, stable travel resistance ideal for pushing and lifting applications. The ultra-compact design integrates the cylinder body as part of the guide body, and the shorter guide rod and thinner plate reduce overall weight by up to 17% compared to the original MGP series.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGPL40-50Z |
| Series | MGP-Z |
| Product Type | Compact Guided Cylinder |
| Bore Diameter | 40 mm |
| Stroke Length | 50 mm |
| Bearing Type | Ball Bushing Bearing (Type L) |
| Cylinder Action | Double Acting |
| Port Thread Type | Rc (BSPT) |
| Number of Pneumatic Connections | 4 |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Minimum Operating Pressure | 0.1 MPa (14.5 PSI) |
| Proof Pressure | 1.5 MPa |
| Pressure Medium | Compressed Air |
| Maximum Piston Speed | 500 mm/s |
| Theoretical Force – Advance Stroke (at 0.5 MPa) | 628 N |
| Theoretical Force – Return Stroke (at 0.5 MPa) | 551 N |
| Cushion Type | Rubber Bumper (Both Ends) |
| Non-Rotating Accuracy of Plate | ±0.06° |
| Maximum Ambient Temperature | 60°C (140°F) |
| Minimum Ambient Temperature | -10°C (14°F) – No Freezing |
| Auto Switch | Without Auto Switch (With Built-In Magnet) |
| Auto Switch Mounting Surfaces | 2 Surfaces |
| Mounting Types | Top, Side, Bottom, T-Slot Side (4 Types) |
| Lubrication | Without Stable Lubrication Function (Standard) |
| Weight | 0.97 kg |
| Manufacturer | SMC Corporation |
