Product Description

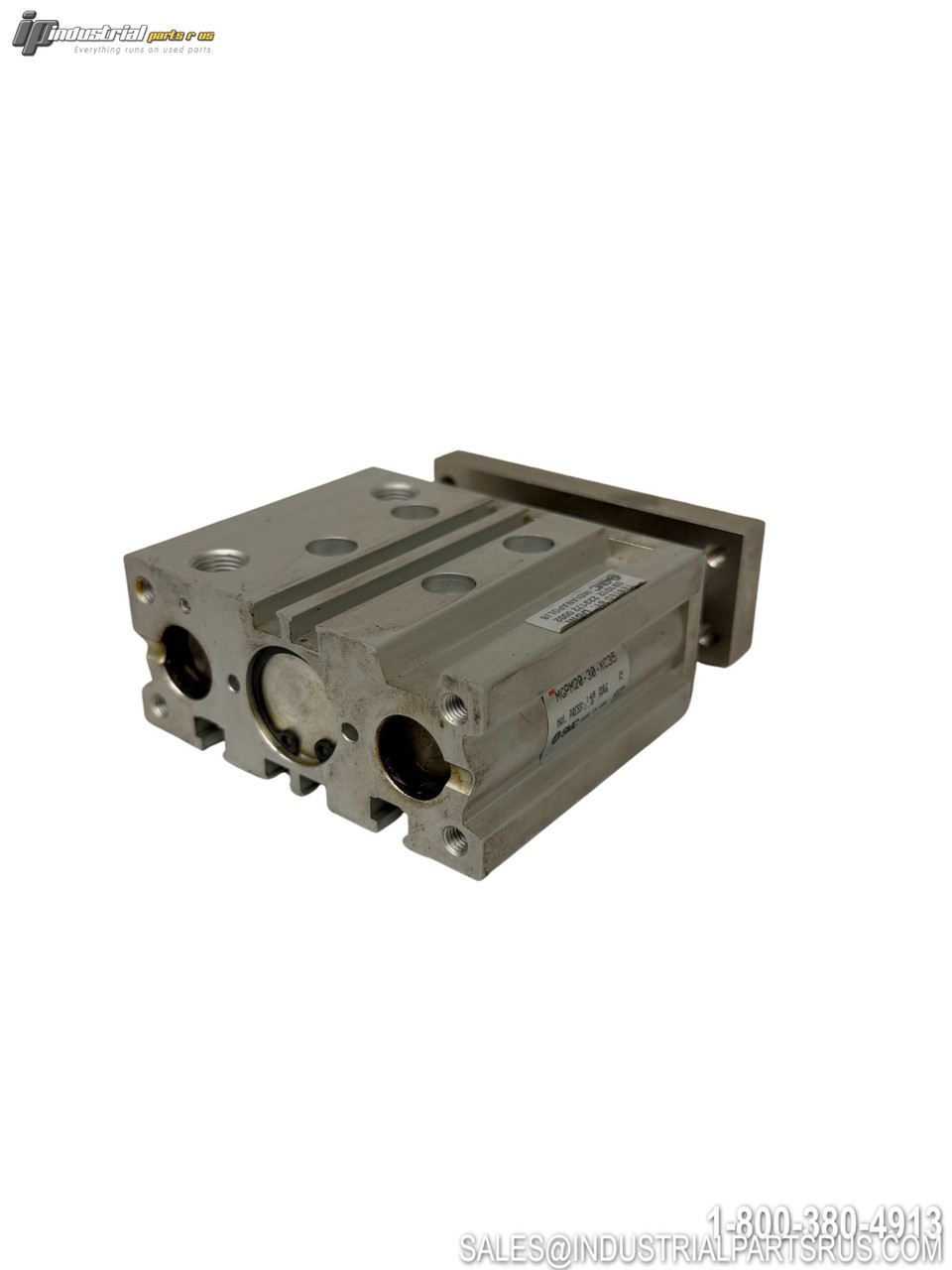

The SMC MGPM20-30-XC35 is a compact guide cylinder from SMC's MGP series featuring a 20mm bore diameter and 30mm stroke length. This model includes the XC35 option which adds a coil scraper for protection against welding spatter, making it ideal for use in machine tool environments exposed to coolants and welding operations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM20-30-XC35 |
| Manufacturer | SMC Corporation |
| Series | MGP |
| Cylinder Type | Compact Guide Cylinder |
| Bore Diameter | 20mm |
| Stroke Length | 30mm |
| Action Type | Double Acting |
| Bearing Type | Slide Bearing |
| Maximum Operating Pressure | 1.0 MPa |
| Operating Temperature | -10°C to +60°C |
| Cushion Type | Rubber Cushion |
| Port Thread Type | Rc (R taper thread) |
| Body Material | Aluminum Alloy |
| Non-Rotating Accuracy | ±0.07° |
| Special Option | XC35 - With Coil Scraper |
| Fluid | Compressed Air |
| Switch Capability | Auto Switch Mountable |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer SMC
Part Number MGPM20-30-XC35
Shelf B-19
Bore Diameter 20 mm
Model MGPM20-30-XC35
MPN MGPM20-30-XC35
Type Pneumatic Cylinder
