Product Description

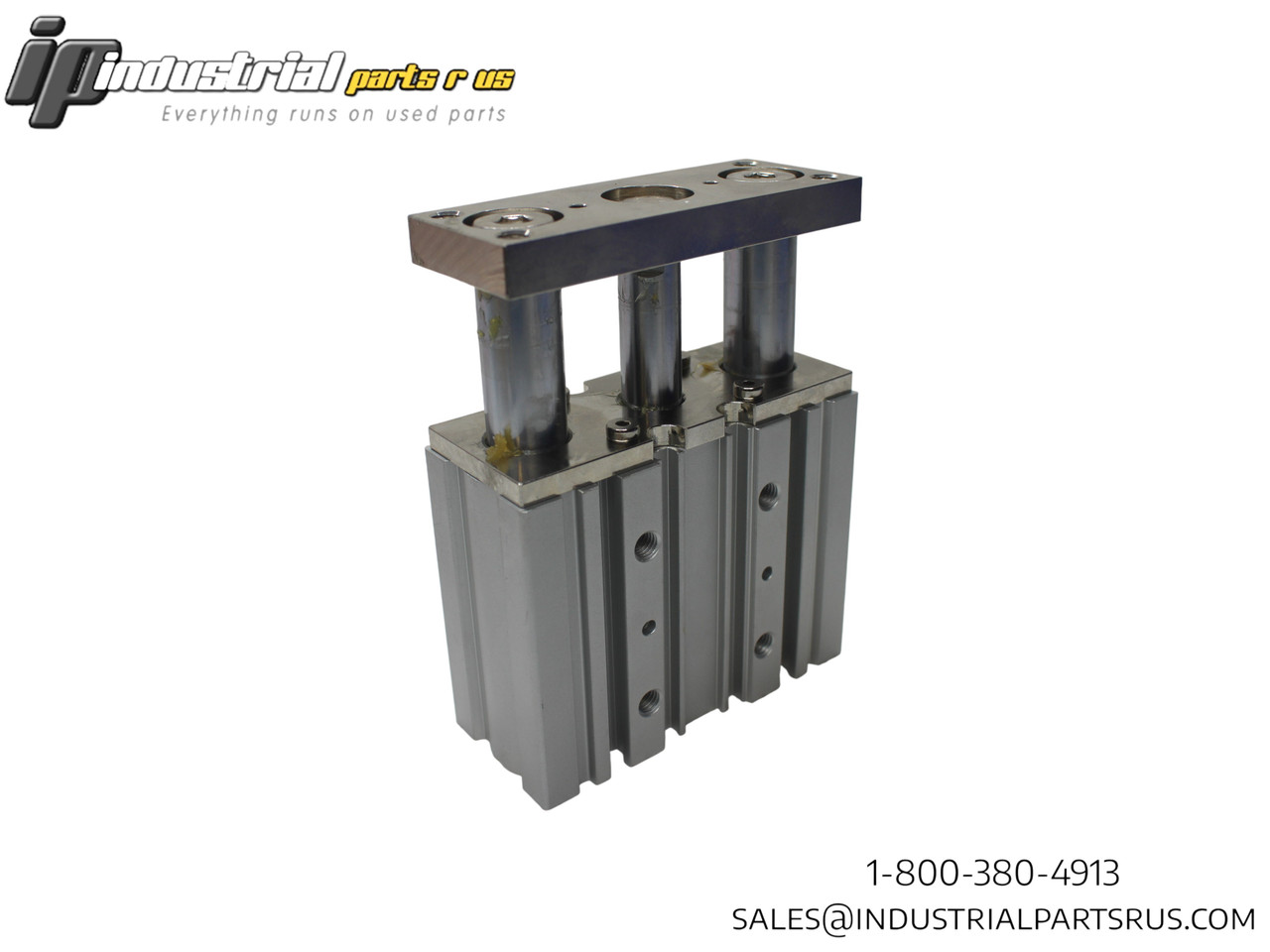

The SMC MGPM32-50-Y59BL-XC35 is a compact guided pneumatic cylinder designed for precision applications requiring high side load resistance and lateral stability. This double-acting cylinder features an internal guide shaft design that isolates load bearing from the actuator rod movement, making it ideal for material handling, lifting, and precision stopping applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model Number | MGPM32-50-Y59BL-XC35 |
| Series | MGP Compact Guide Cylinder |
| Bore Diameter | 32mm |
| Stroke Length | 50mm |
| Action Type | Double Acting |
| Bearing Type | Slide Bearing |
| Maximum Operating Pressure | 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Port Thread | M5 x 0.8 |
| Operating Temperature | -10°C to 60°C |
| Piston Speed | 50 to 500 mm/s |
| Non-Rotating Accuracy | ±0.06° |
| Built-in Magnet | Yes |
| Special Features | XC35 Environmental Resistance |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
Max. Operating Pressure 1.0 MPa
Max. Pressure 1.0 MPa
Stroke 50mm
Bore Diameter 32mm
GTIN 679523686161
Manufacturer SMC
Part Number MGPM32-50-Y59BL-XC35
Shelf B-4
Model MGPM32-50-Y59BL-XC35
MPN MGPM32-50-Y59BL-XC35
Type Pneumatic Air Cylinder
