Product Description

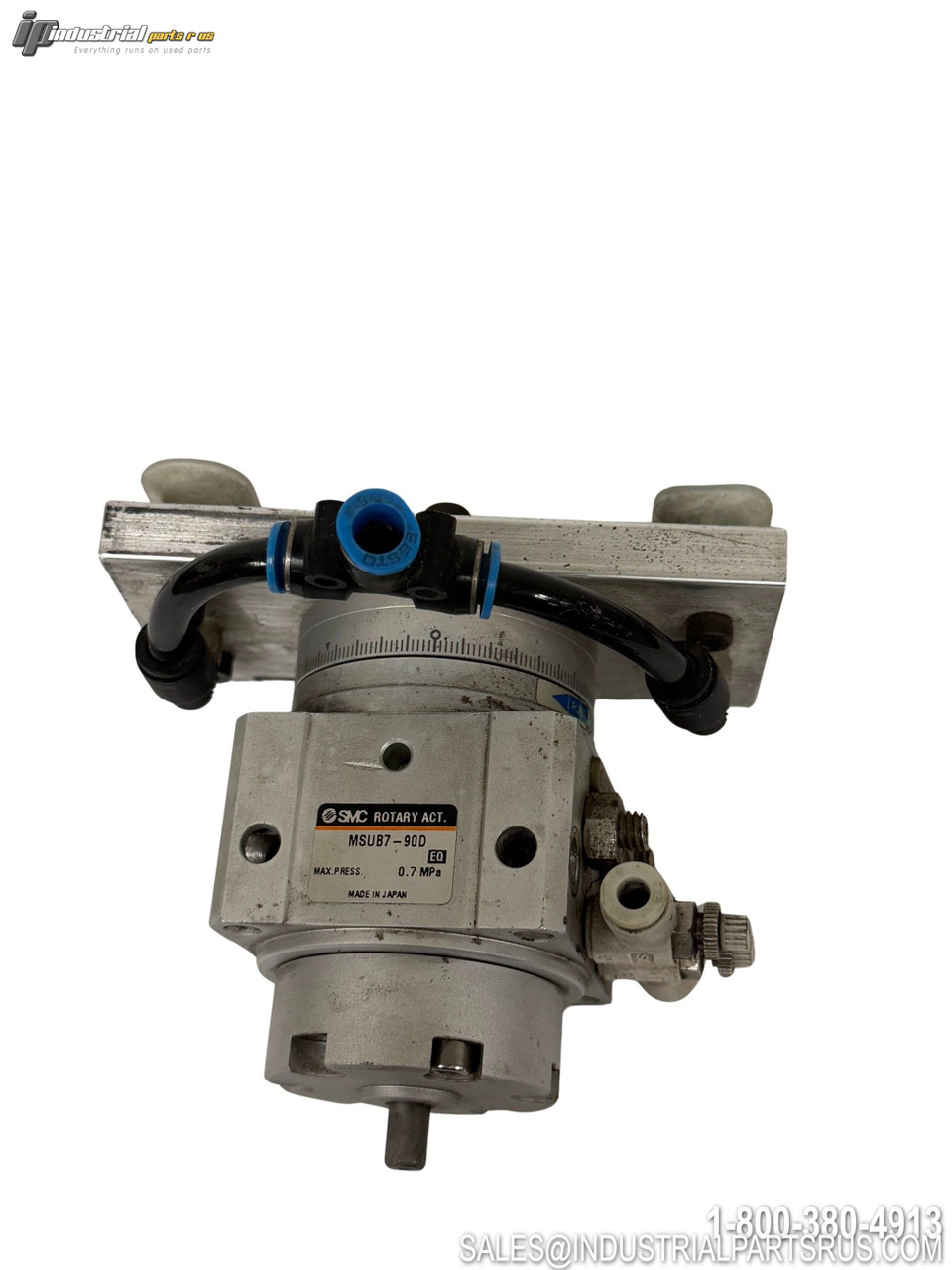

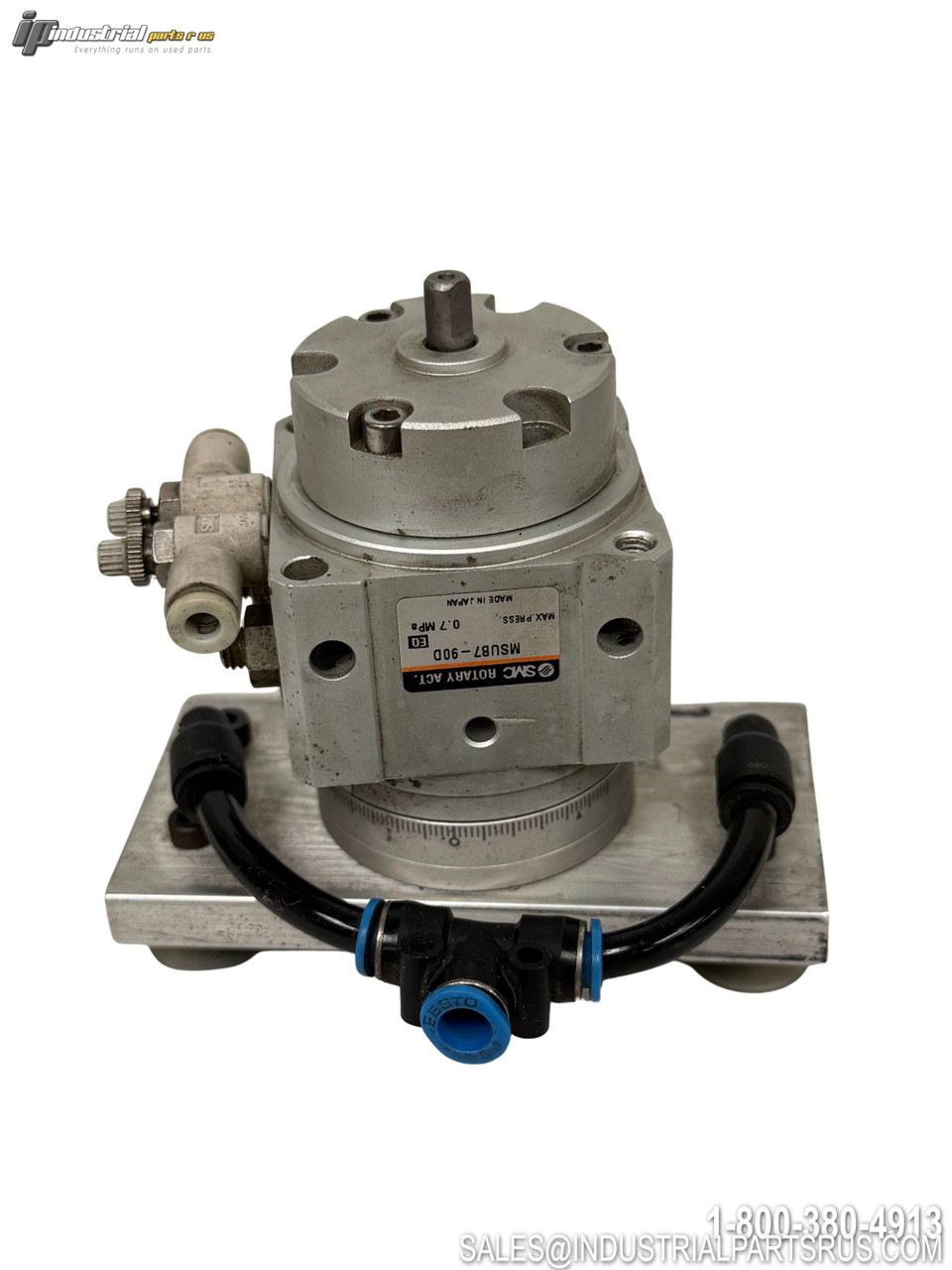

The SMC MSUB7-90D is a compact rotary table pneumatic cylinder perfect for end-of-arm tooling applications. It incorporates load bearings and a mounting face with a vane style rotary actuator. Rotation indicators on the side of the table facilitate easy rotating range adjustments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MSUB7-90D |
| Product Type | Pneumatic Rotary Table |
| Cylinder Type | Rotary Actuator |
| Vane Type | Double Vane |
| Rotation Angle | 90° |
| Size Series | 7 |
| Angle Adjustment | ±2.5° (Double vane) |
| Port Connection | Side or Axial Ported |
| Thread Size | M3 x 0.5 |
| Operating Pressure | 0.15 to 0.7 MPa |
| Operating Temperature | 5 to 60°C |
| Fluid | Air (unlubricated) |
| Auto Switch Compatible | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MSUB7-90D
Shelf J-72
Model MSUB7-90D
MPN MSUB7-90D
Type Pneumatic Cylinder
