Product Description

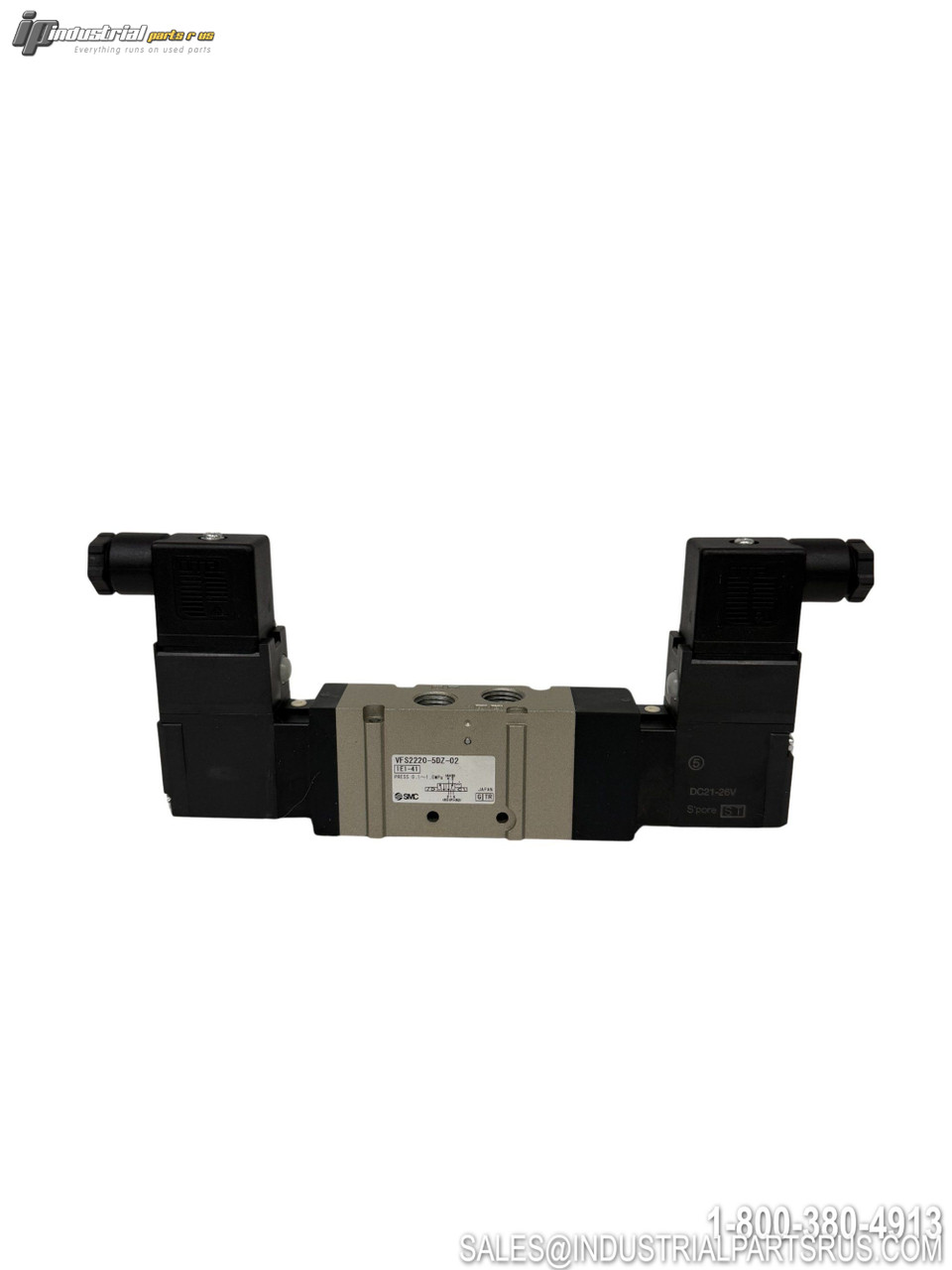

The SMC VFS2220-5DZ-02 is a 5-port, pilot-operated, 2-position double solenoid valve from SMC's VFS2000 Series. It features a metal seal main valve construction and body-ported individual exhaust configuration, designed for driving medium and large pneumatic cylinders. Key features include a 24 VDC coil, DIN terminal electrical entry, internal pilot, non-locking flush manual override, light/surge voltage suppressor, and Rc (PT) 1/4" side pipe porting.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | VFS2220-5DZ-02 |
| Series | VFS2000 |
| Product Type | Solenoid Valve |
| Number of Ports | 5 |
| Valve Function / Positions | 2-Position Double |
| Actuation Type | Pilot Operated |
| Pilot Type | Internal Pilot |
| Coil Voltage | 24 VDC |
| Electrical Entry | DIN Terminal |
| Light / Surge Voltage Suppressor | Included |
| Manual Override | Non-Locking Push Type (Flush) |
| Body / Exhaust Type | Body Ported, Individual Exhaust |
| Piping Style | Side Pipe |
| Port Size | 1/4" |
| Thread Type | Rc (PT) |
| Seal Type | Metal Seal |
| Valve Function (Spool) | Spool |
| Min. Operating Pressure | 0.1 MPa |
| Max. Operating Pressure | 1.0 MPa (9.9 kgf/cm²) |
| Flow Rate (Cv) | 0.85–0.90 Cv (P→A/B: 0.90, A/B→R1/R2: 0.85) |
| Flow Rate (Sonic Conductance C) | 4.0 dm³/(s·bar) P→A/B; 3.5 dm³/(s·bar) A/B→R1/R2 |
| Flow Rate (CFM) | 7.2 CFM |
| Power Consumption | 1.8 W (DC) |
| Ambient / Fluid Temperature | -10 to 60°C |
| Body Material | Aluminium Die-Cast |
| Spool / Sleeve Material | Stainless Steel |
| Media | Air / Inert Gas |
| Coil Insulation Class | Class B |
| Applicable Cylinder Size | ø63 mm |
| Compatible Manifold Types | VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5 |
| Weight | 0.90 lbs (approx. 0.41 kg) |
| Standards Met | ISO VG32, JIS B 8375, JIS B 8375-1981, JIS C 0920, JIS C 4003 |
