Product Description

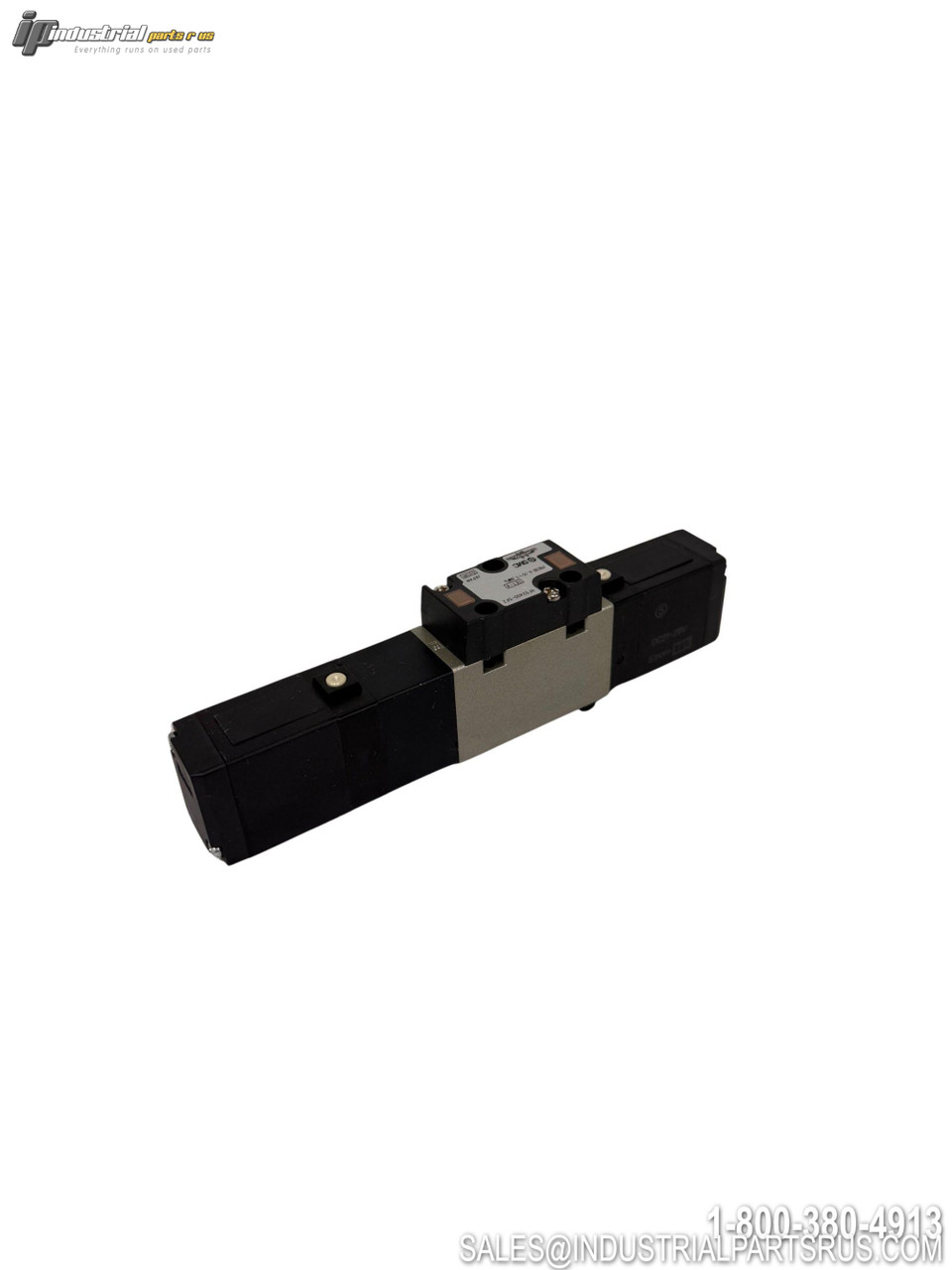

The SMC VFS2400-5FZ is a 5-port, pilot operated solenoid valve from the VFS2000 Series featuring a metal seal main valve construction. It is configured as a 3-position exhaust center (5/3-way) valve with a 24 VDC coil, base-mounted plug-in body option, internal pilot, and a built-in light and surge voltage suppressor. Designed for driving medium to large pneumatic cylinders, this valve offers a large flow capacity of C: 2.8 dm³/(s·bar) with low power consumption of 1.8 W DC, and is compatible with VV5FS1–VV5FS5 manifold assemblies.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | VFS2400-5FZ |
| Series | VFS2000 |
| Valve Type | 5-Port Pilot Operated Solenoid Valve |
| Valve Function / Actuation | 3-Position Exhaust Center |
| Coil Voltage | 24 VDC |
| Power Consumption | 1.8 W DC |
| Seal Material | Metal |
| Body / Valve Material | Aluminium Die Cast (body), Resin (piston/cover), Stainless Steel (spool/sleeve/spring) |
| Coil Insulation Class | Class B |
| Mounting / Body Option | Base Mounted Plug-In (without sub-plate, for manifold) |
| Pilot Type | Internal Pilot |
| Electrical Entry | Plug-In (DIN connector) |
| Surge Suppressor / Indicator | Light & Surge Voltage Suppressor (Z option) |
| Manual Override | Non-Locking Push Type (Flush) |
| Piping / Porting | Side Ported |
| Thread Type | Rc (PT) |
| Port Size | 1/8, 1/4 (without sub-plate) |
| Flow Rate (C) | 2.8 dm³/(s·bar) (1/4 port) |
| Cv Flow Rate | 0.54 (P to A/B) / 0.63 (A/B to R1/R2) |
| Rated Flow (dm³/s) | 2.4 dm³/s (P to A/B) / 2.7 dm³/s (A/B to R1/R2) |
| Flow Rate (m³/h) | 8.64 m³/h (P to A/B) / 9.72 m³/h (A/B to R1/R2) |
| Flow Direction | 4-Way |
| Minimum Operating Pressure | 0.1 MPa (14.5 psi) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) / 9.9 kgf/cm² |
| Proof Pressure | 1.5 MPa (218 psi) |
| Operating Medium | Air / Inert Gas |
| Ambient & Fluid Temperature | -10 to 60°C (14 to 140°F) |
| Applicable Cylinder Size | ø63 mm (medium to large cylinders) |
| Compatible Manifold Types | VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Manufacturer SMC
Part Number VFS2400-5FZ
Shelf A-12
Model VFS2400-5FZ
MPN VFS2400-5FZ
Type Solenoid Valve
