Product Description

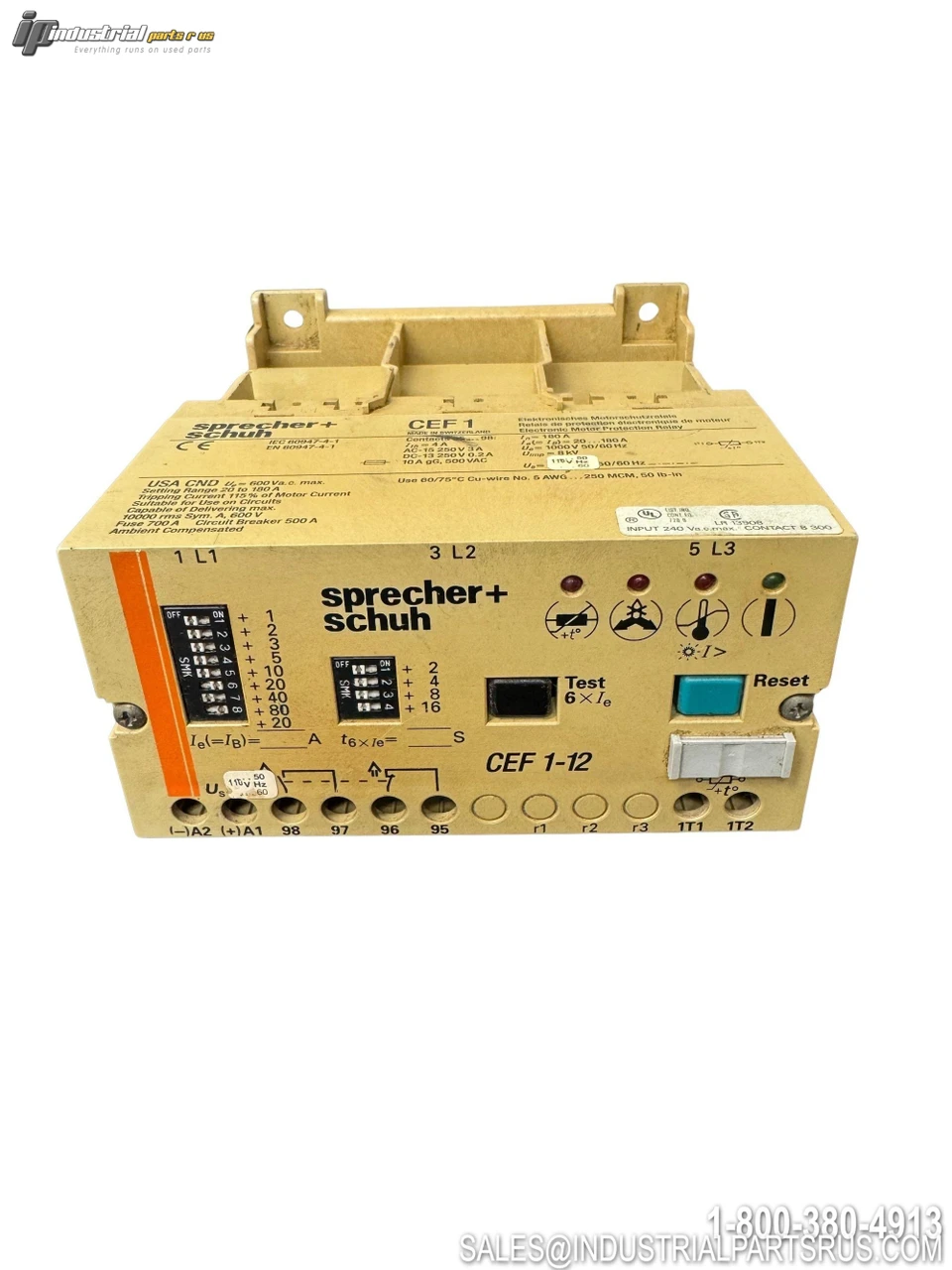

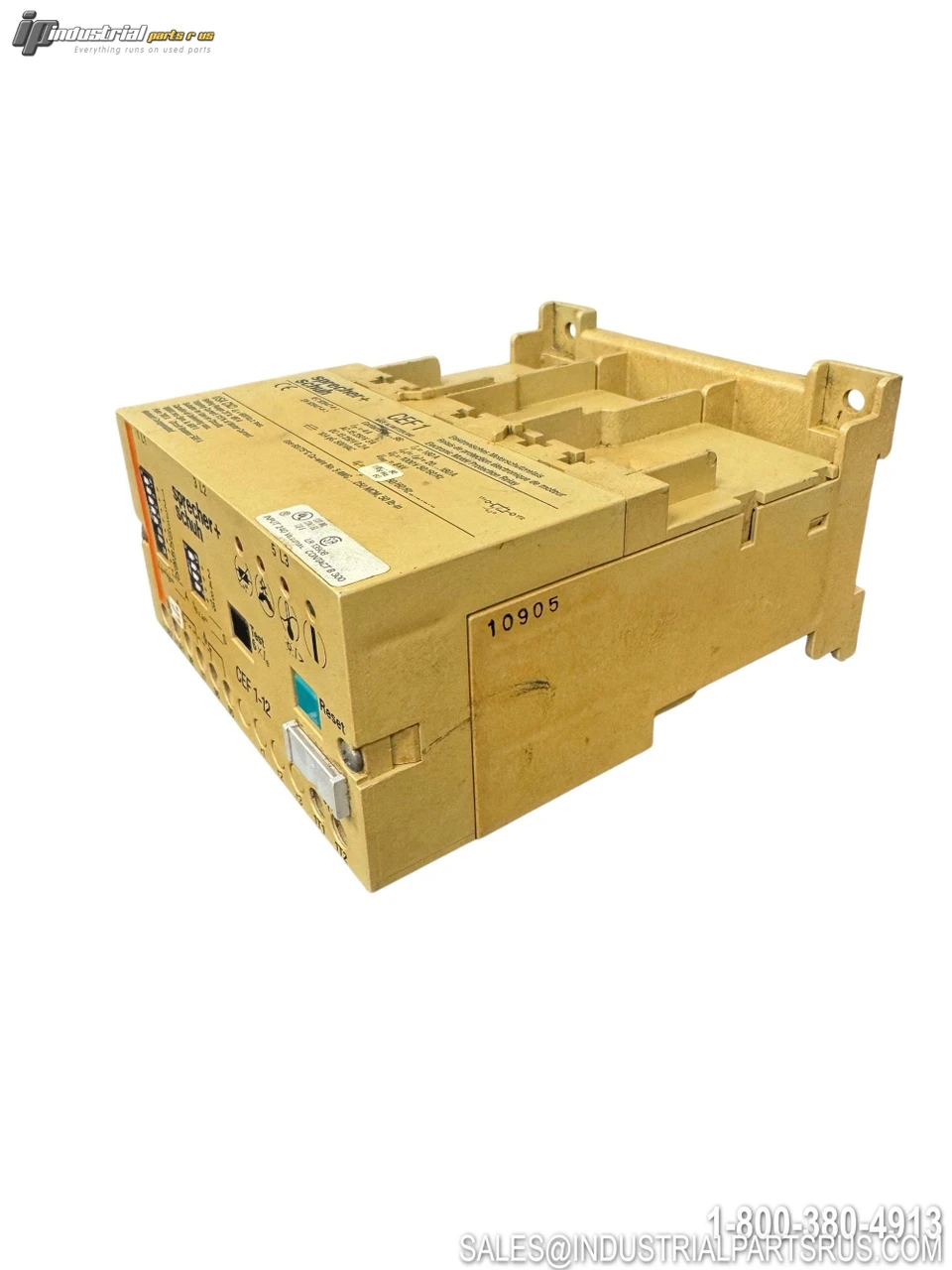

The Sprecher+Schuh CEF 1-12 is a solid-state Electronic Motor Protection Relay designed for comprehensive motor protection in industrial applications. It provides thermal overload protection, single-phase and phase-unbalance protection, thermistor overtemperature protection, and overcurrent warning indication. Current settings are digitally adjusted via eight slide switches, with a built-in 20A base value and a full adjustable range of 0.5 to 180 amperes. This unit is part of the CEF1 series, which was scheduled for obsolescence by the manufacturer in 2006 and is considered a discontinued legacy product.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sprecher+Schuh |
| Model / Part Number | CEF 1-12 |
| Product Type | Electronic Motor Protection Relay (Overload Relay) |
| Series | CEF1 |
| Current Range | 0.5 – 180 A |
| Base Current (built-in) | 20 A |
| Rated Motor Circuit Voltage (UL & CSA) | 600 VAC |
| Control Circuit Max Voltage | 440 VAC |
| Supply Voltage – AC (50/60 Hz) | 24, 36, 48, 110, 220, 240, 380, 415, or 440 VAC |
| Supply Voltage – DC | 24 VDC or 48 VDC |
| Power Consumption | AC: 2.5 VA (2 W) / DC: 2 W |
| Max Total Power Loss (CEF1-12) | AC: 4.5 VA (4 W) / DC: 4 W |
| Frequency | 50/60 Hz |
| Number of Phases | 3 |
| Protection Functions | Thermal Overload, Phase Failure, Phase Unbalance, Thermistor Overtemperature, Overcurrent Warning |
| Overcurrent Warning Threshold | 110% of set FLA (red LED flashes) |
| Current Setting Method | 8 digital slide switches |
| Reset Type | Manual (push button); Remote reset optional via CER1 module; Automatic reset available for thermal overload & thermistor functions |
| Output Relay Operation | Energized during normal operation; de-energizes on fault (fail-safe, closed circuit) |
| Degree of Inertia | Adjustable (selectable trip time) |
| Fault Indication | Individual LEDs (red = fault, green = ready/power on) |
| Mounting | Panel mount; DIN rail (EN 50022-35) via optional adapter |
| Dimensions (H x W x D) | 120 mm x 100 mm x 143 mm (approx., CEF1-11/12) |
| Weight | 2.40 lbs (approx.) |
| Technology | Solid State (Electronic) |
| Manufacturer Status | Discontinued / Obsolete |
| Standards | UL, CSA |
