Product Description

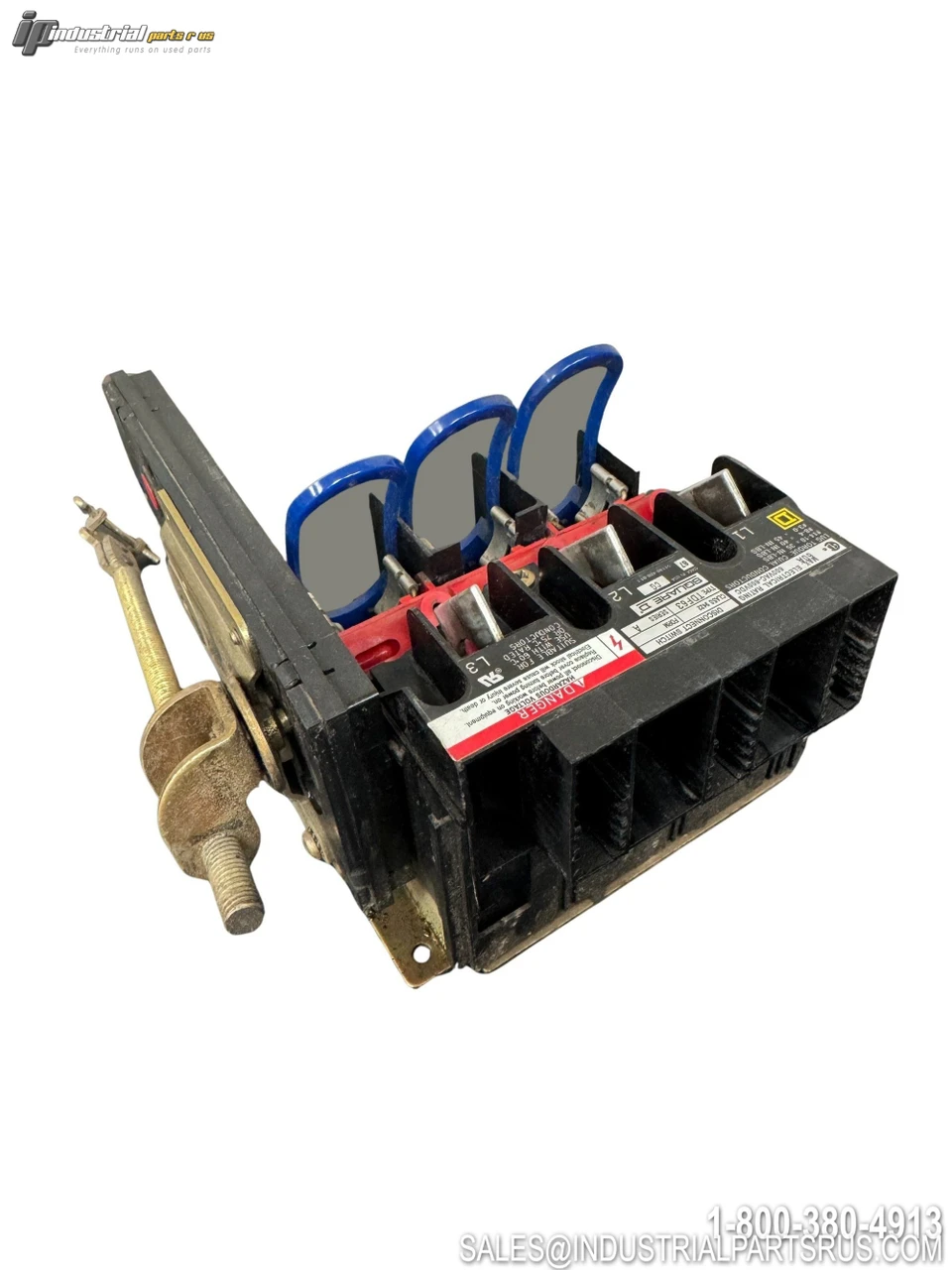

The Square D 9422TDF63 (TDF63) is a fusible, rod-operated, variable-depth disconnect switch designed for control panel installations. It provides a safe means of isolating electrical circuits and accepts Class H, J, K, or R fuses rated up to 60 amps at 600V AC. The switch is flange-mounted with a variable mounting depth range and is compatible with 9422A handle operators and 9423 door closing mechanisms (handles ordered separately).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Square D (Schneider Electric) |
| Model / Catalog Number | 9422TDF63 (TDF63) |
| Product Series | 9422T |
| Product Type | Fusible Variable-Depth Disconnect Switch |
| Amperage Rating | 60 A |
| Voltage Rating (AC) | 600 V AC |
| Voltage Rating (DC) | 250 V DC (max) |
| Number of Poles | 3 |
| Phase | 3-Phase |
| Contact Form | 3PST |
| Fuse Class | Class H, J, K, R |
| Mounting Type | Flange Mount, Variable Depth |
| Mounting Depth Range | 6.63 to 18.00 inches |
| Actuator / Handle Type | Type A Handle (9422A) — ordered separately |
| Operation Type | Rod Operated |
| Terminal Type | Lug Terminal |
| Wire Range (Copper) | #14 to #2 AWG |
| Wire Range (Aluminum) | #10 to #2 AWG |
| HP Rating @ 208/240 VAC | 15 HP |
| HP Rating @ 480 VAC | 30 HP |
| HP Rating @ 600 VAC | 50 HP |
| HP Rating @ 250 VDC (2-pole) | 10 HP |
| Housing Material | Non-Metallic |
| Approvals / Certifications | UL Component Recognized, CSA Certified, RoHS Compliant |
| UL File No. | E52639 |
| CSA File No. | LR44199 Class 4652-04 |
| Compatible Handle Operators | 9422A |
| Compatible Door Closing Mechanism | 9423 |
| Depth | 2-1/2 in |
| Height | 3-1/4 in |
