Product Description

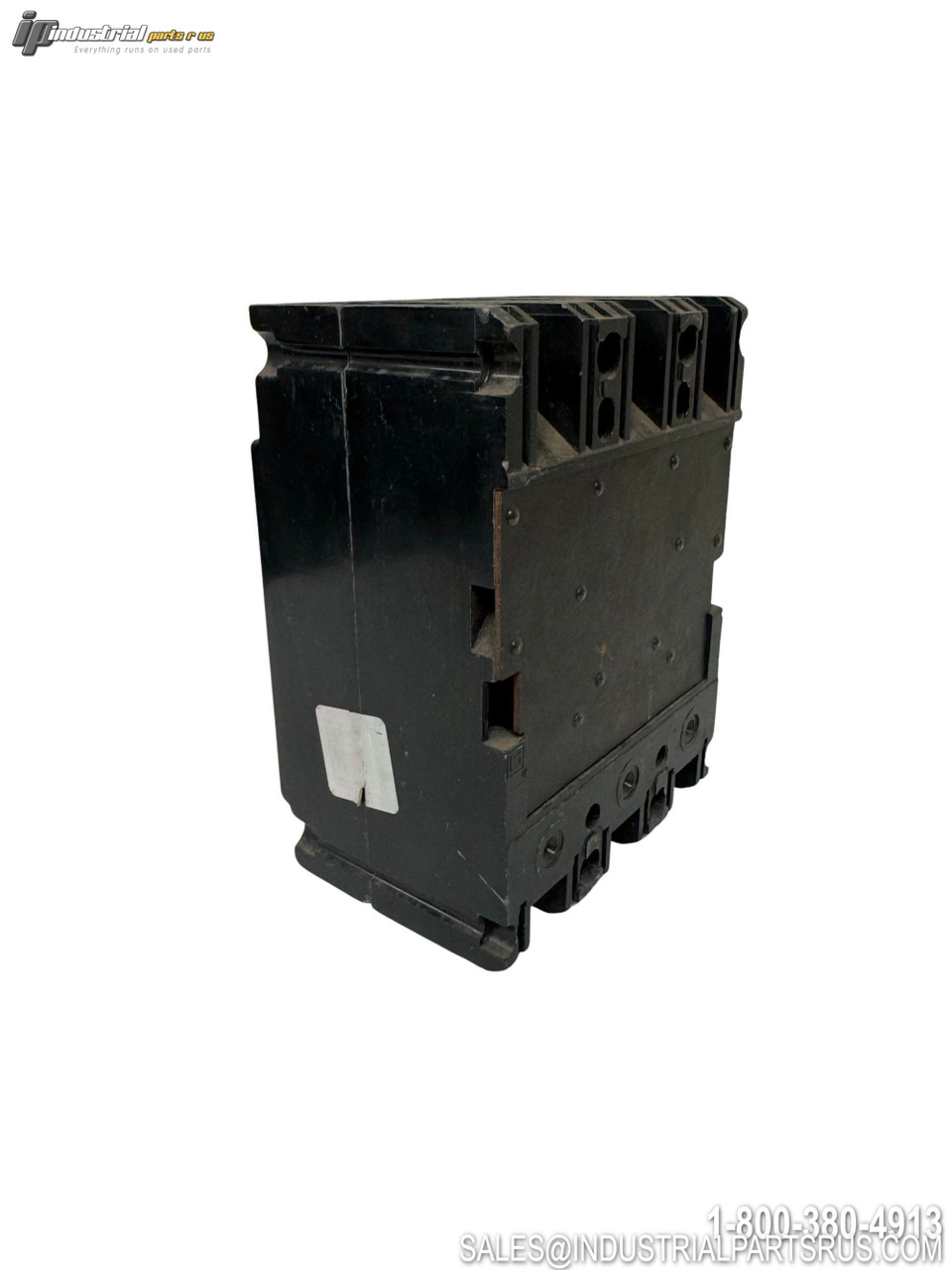

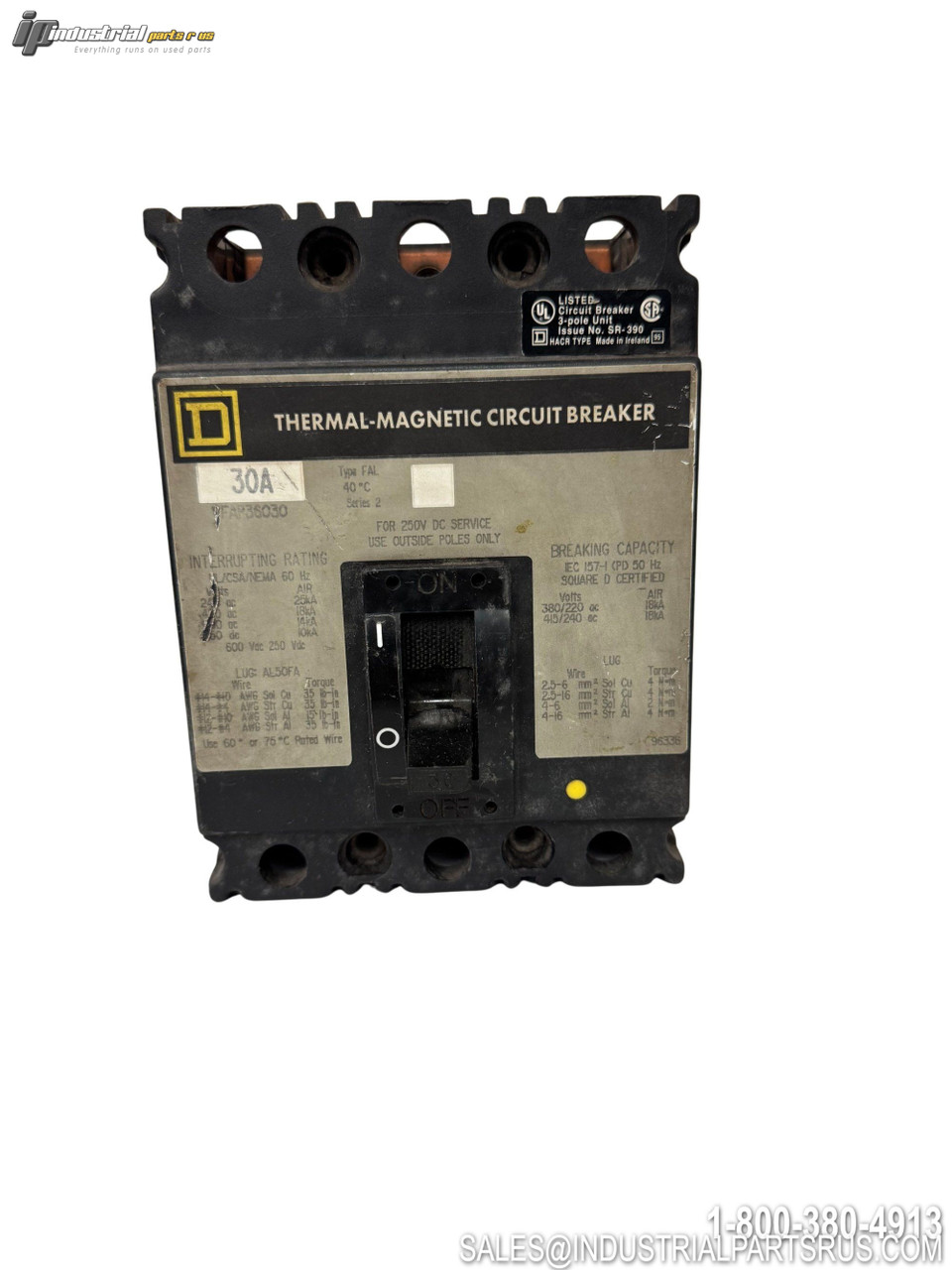

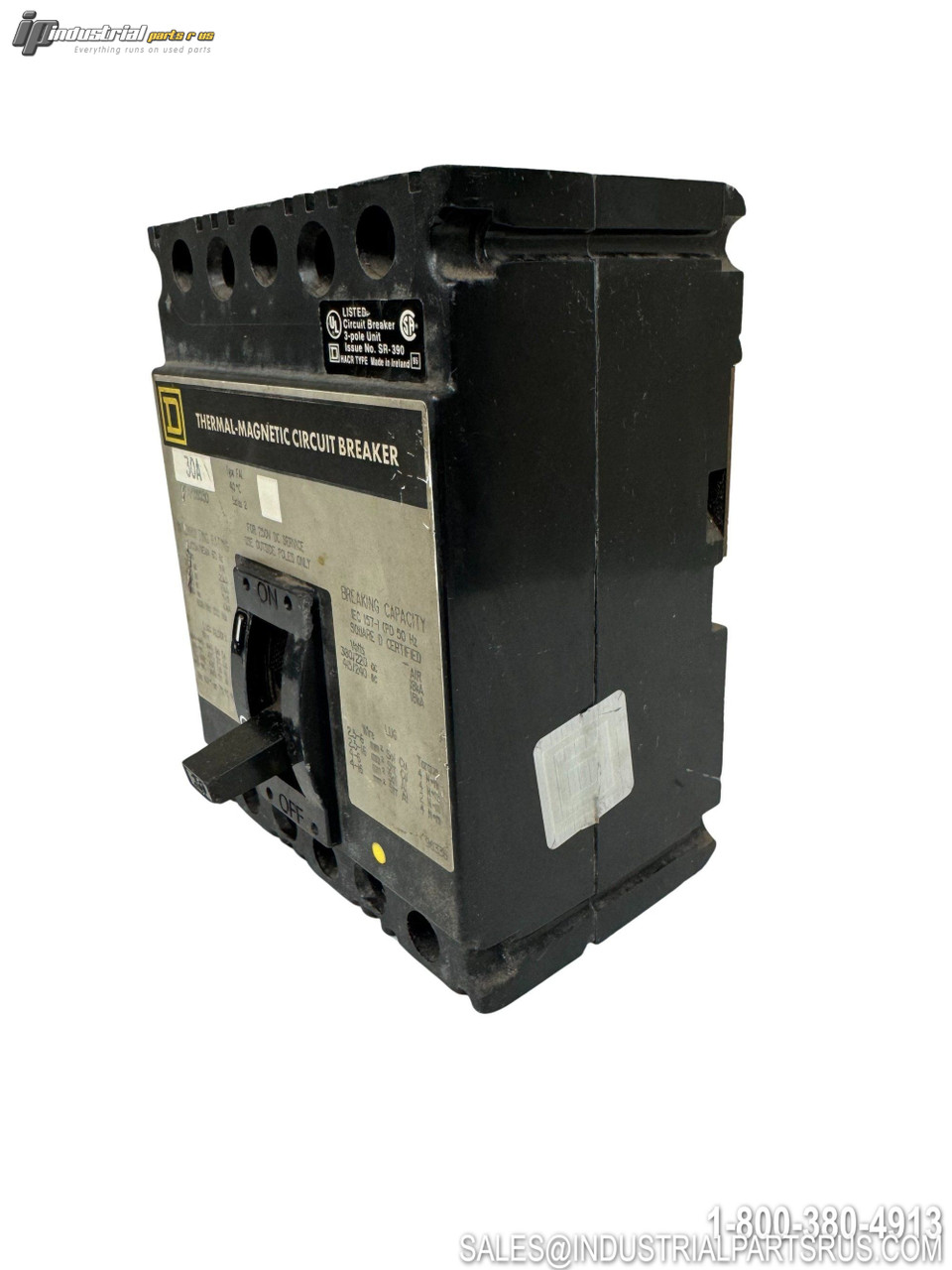

The Square D FAP36030 is a FAP Series thermal magnetic molded case circuit breaker rated at 30 Amperes and 600V AC. It features a 3-pole, 3-phase configuration with bolt-on mounting and provides Long-Time and Instantaneous (LI) trip functions for reliable overcurrent and short-circuit protection. The FAP36030 includes line and load side lug terminals (feed-thru) and delivers a standard interrupting capacity of 18kAIC at 480V. Compatible with wire gauges from #14 AWG to 1/0 AWG, it is suitable for use in industrial panelboards, switchboards, motor control centers, and 3-phase power distribution systems. The breaker features a Visi-Trip indicator and Push-to-Trip test function, is UL 489 Listed and CSA Approved, and is rated for operating temperatures from -20°C to +50°C (-4°F to +122°F).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Square D |
| Model / Part Number | FAP36030 |
| Manufacturer | Schneider Electric (Square D) |
| Product Type | Molded Case Circuit Breaker |
| Series / Family | FAP Series |
| Frame Type | FAP |
| Amperage | 30A |
| Voltage Rating | 600V AC |
| Voltage Type | AC |
| Number of Poles | 3 |
| Phase | 3-Phase |
| Interrupting Rating | 18kAIC @ 480V |
| Trip Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Mounting Type | Bolt-On |
| Terminal / Connection Type | Feed-Thru – Line and Load Side Lug Terminals |
| Interrupting Capacity Class | Standard |
We warranty all items for 30 days from date of purchase.
