Product Description

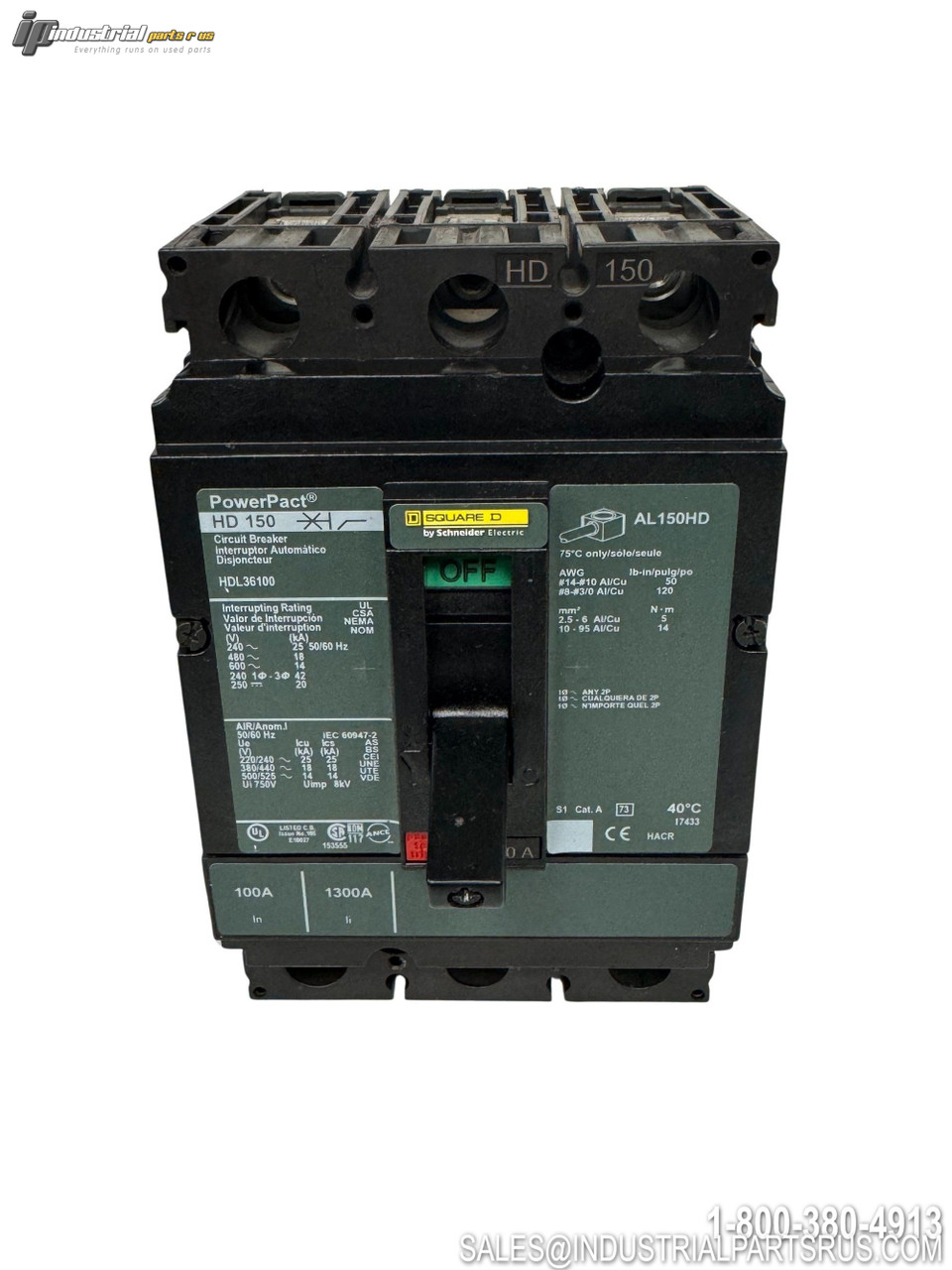

The Square D HDL36100 is a PowerPact H-Frame molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This 100 amp, 3-pole thermal magnetic breaker features dual-break rotating contacts and is suitable for industrial and commercial applications with feed-through mounting configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Square D |
| Model/Part Number | AL150HD |
| Product Type | Mechanical Lug Terminal Kit |
| Series | PowerPact |
| Current Rating | 15-150A |
| Wire Range | 14-3/0 AWG |
| Material | Aluminum |
| Compatible Frames | H-frame, J-frame, L-frame |
| Conductor Type | Aluminum or Copper |
| Quantity per Kit | 3 lugs |
| Kcmil Size | 500 kcmil |
| Tightening Torque | 44.25 lbf.in (5 N.m) |
| Standards Compliance | CSA & UL |
| Mounting Type | I-Line, Unit mount |
| Location | Downstream |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style I-Line, Unit Mount
Current Rating 15-150A
Material Aluminum
Full Load Amps 100A
Application Circuit Breaker Connection
Manufacturer Square D
Part Number HDL36100
Shelf J-6
Model HDL36100
MPN HDL36100
Type Circuit Breaker
