Product Description

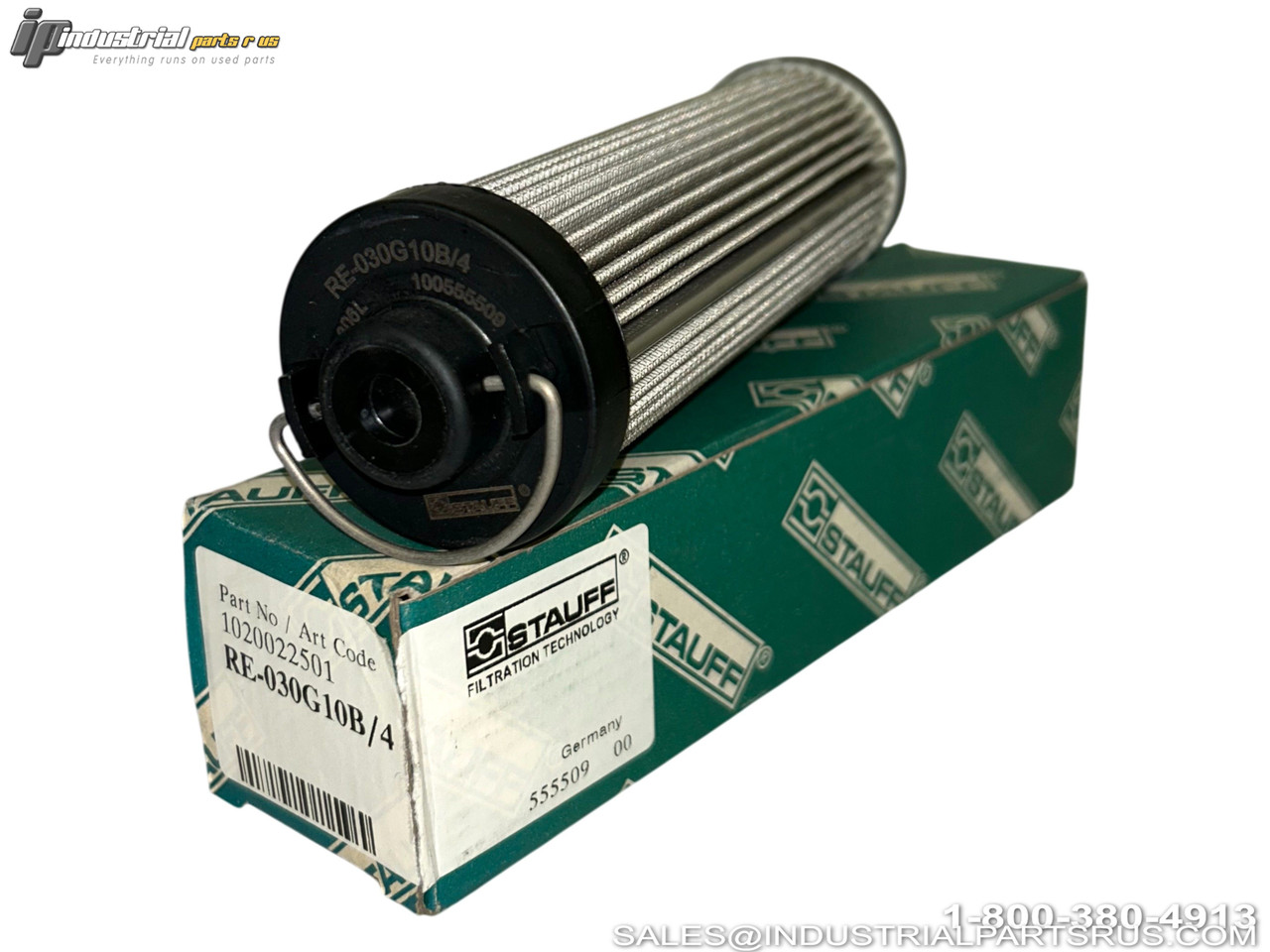

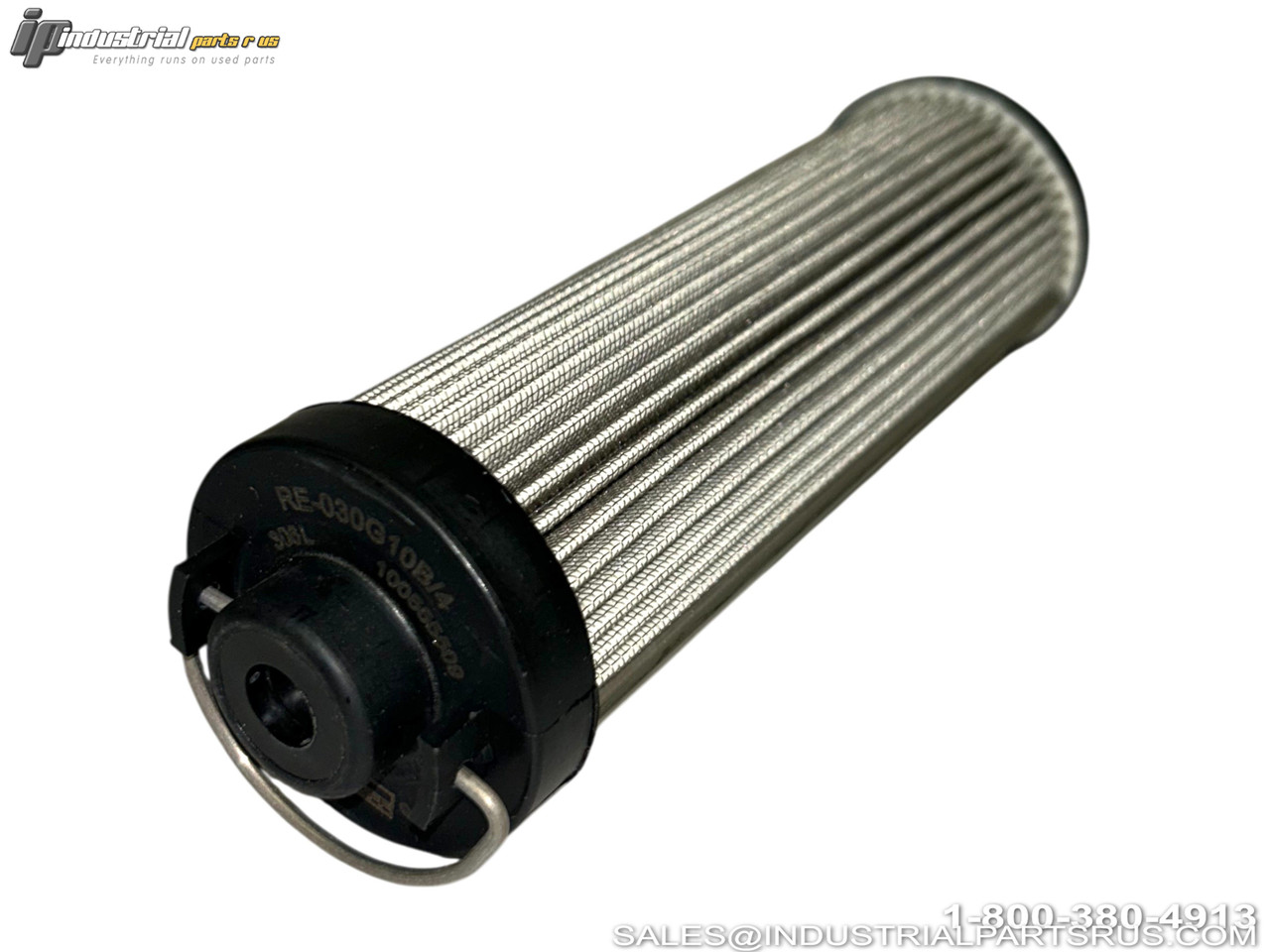

The Stauff RE-030G10B/4 is a return line replacement filter element designed for hydraulic filtration systems. This element features inorganic glass fiber media with a 10 micron rating and NBR sealing for reliable contamination removal in return line filter applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Stauff |
| Model/Part Number | RE-030G10B/4 |
| Series | RE |
| Application | Return-Line Filters |
| Micron Rating | 10 µm |
| Filter Material | Inorganic Glass Fibre |
| Sealing Material | NBR |
| Outer Diameter | 51.5 mm |
| Inner Diameter | 22.3 mm |
| Length | 170 mm |
| β Ratio | >200 |
| Size Code | 030 |
| Flow Rate | 110 LPM (30 GPM) |
| Maximum Pressure | 16 bar (232 PSI) |

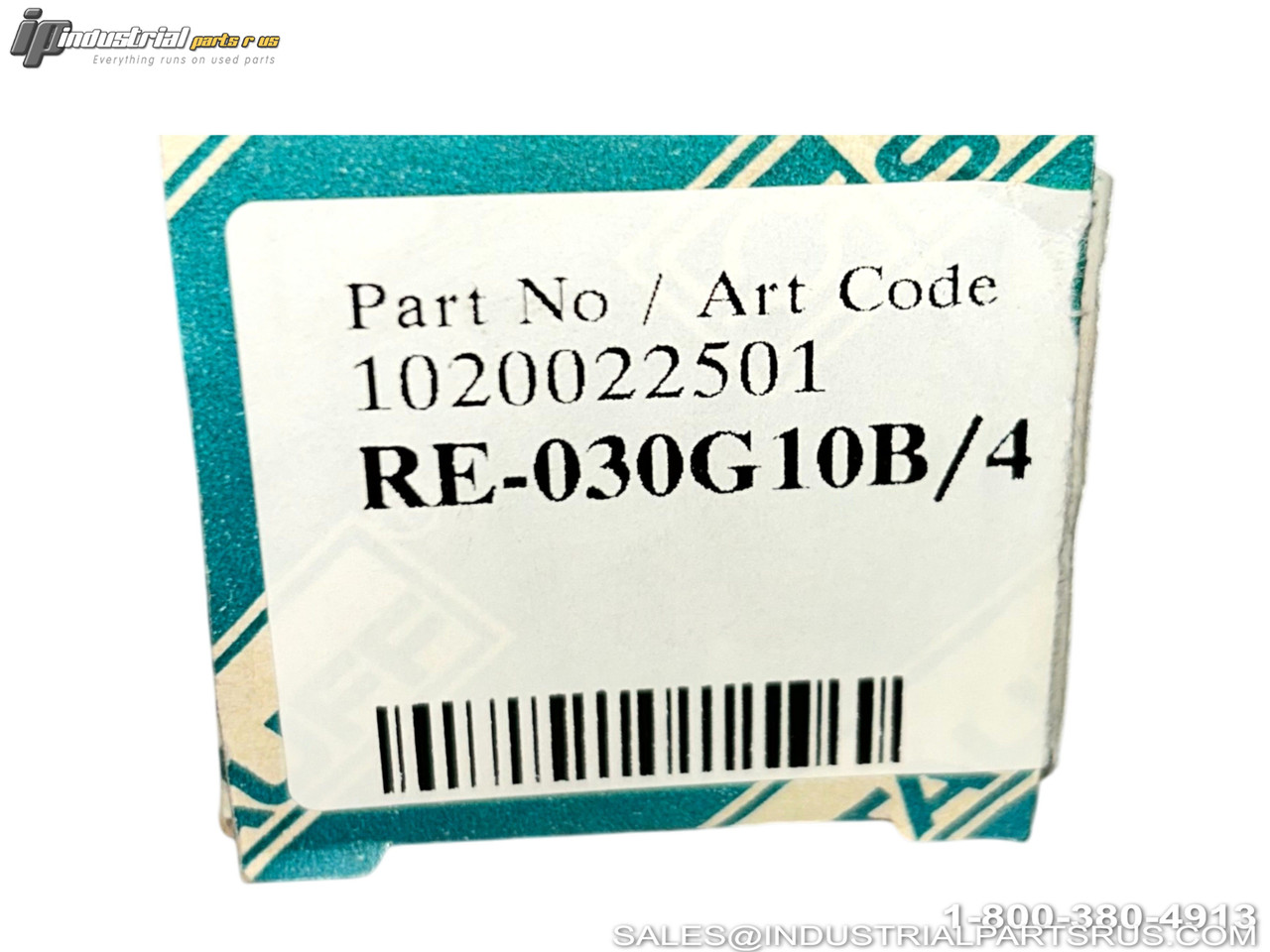

| Stauff Material No. | 1020022501 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Stauff
Part Number RE-030G10B/4
Shelf K-49
Model RE-030G10B/4
MPN RE-030G10B/4
Type Hydraulic Filter Element
