Product Description

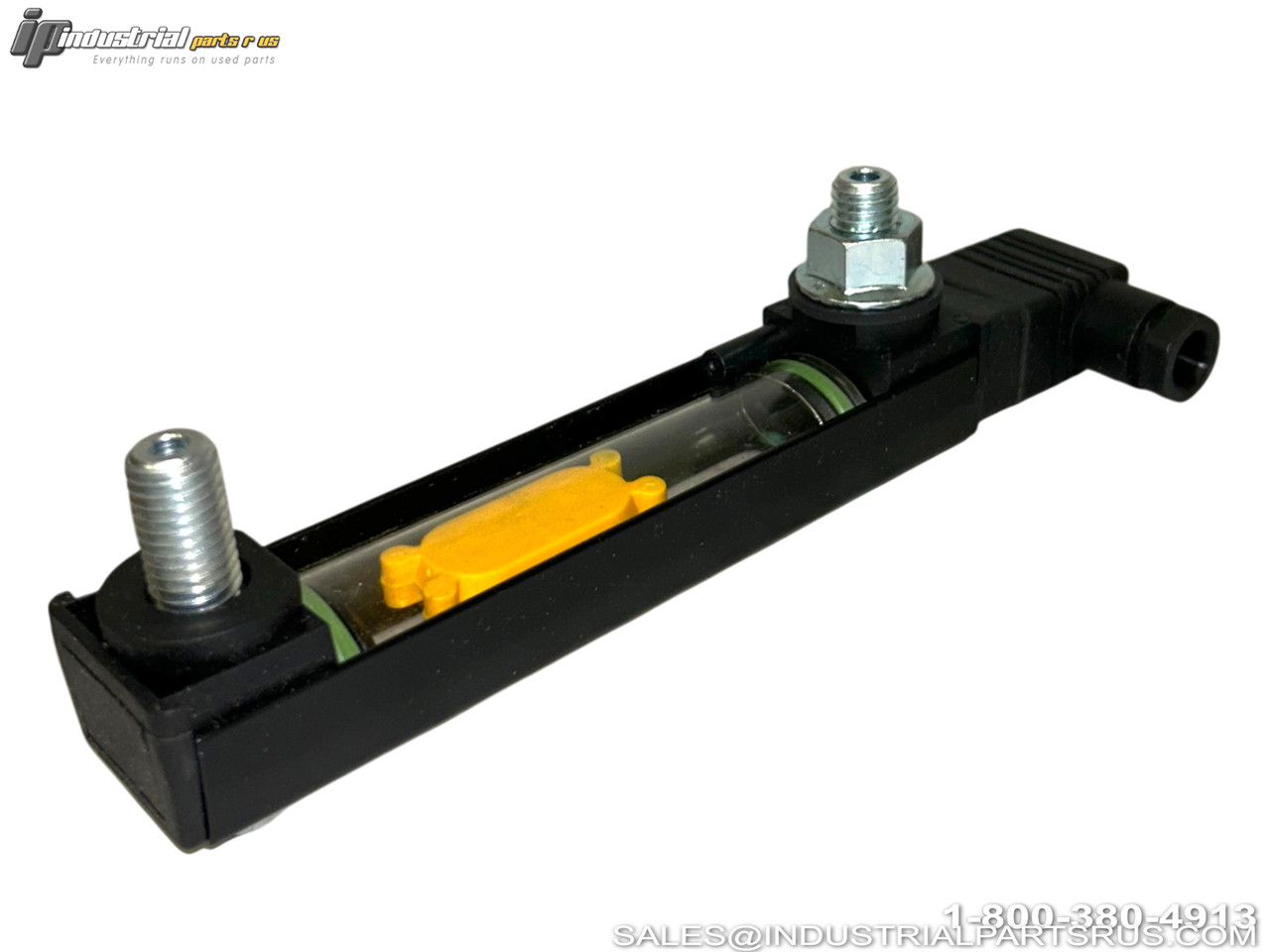

The Stauff SNK 127 V-O-O-12 is a hydraulic level gauge designed for visual and electrical fluid level indication in hydraulic reservoirs. This unit features a break contact (normally closed) electrical function that opens when the fluid reaches the contact level, providing reliable level monitoring for hydraulic systems with maximum tank pressures up to 2 bar (29 psi).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Stauff |
| Model/Part Number | SNK 127 V-O-O-12 |
| Manufacturer | STAUFF |
| Series | SNK |
| Connection Size | 127 mm (5.00 in) |
| Electrical Function | Break Contact (n/c) |
| Banjo Bolt Size | M12 (Standard) |
| Maximum Pressure | 2 bar (29 psi) |
| Operating Temperature | -22°F to 176°F (-30°C to 80°C) |
| Length | 61 mm |
| Width | 215 mm |
| Height | 34.5 mm |
| Housing Material | Aluminum |
| Finish | Powder-Coated Black |
| Window Material | Polyamide (PA) |
| Sealing Material | FPM (Viton®) |
| Float Material | Polyamide (PA) |
| Thermometer | Without Thermometer |
| Weight | 0.279 kg |
| Compatible Media | Mineral and Petroleum Based Hydraulic Fluids (HL and HLP) |
| STAUFF Material Number | 1910000042 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Relay
Sensor Type Level
Manufacturer Stauff
Part Number SNK 127 V-O-O-12
Shelf K-49
Model SNK 127 V-O-O-12
MPN SNK 127 V-O-O-12
Type Level Sensor
