Product Description

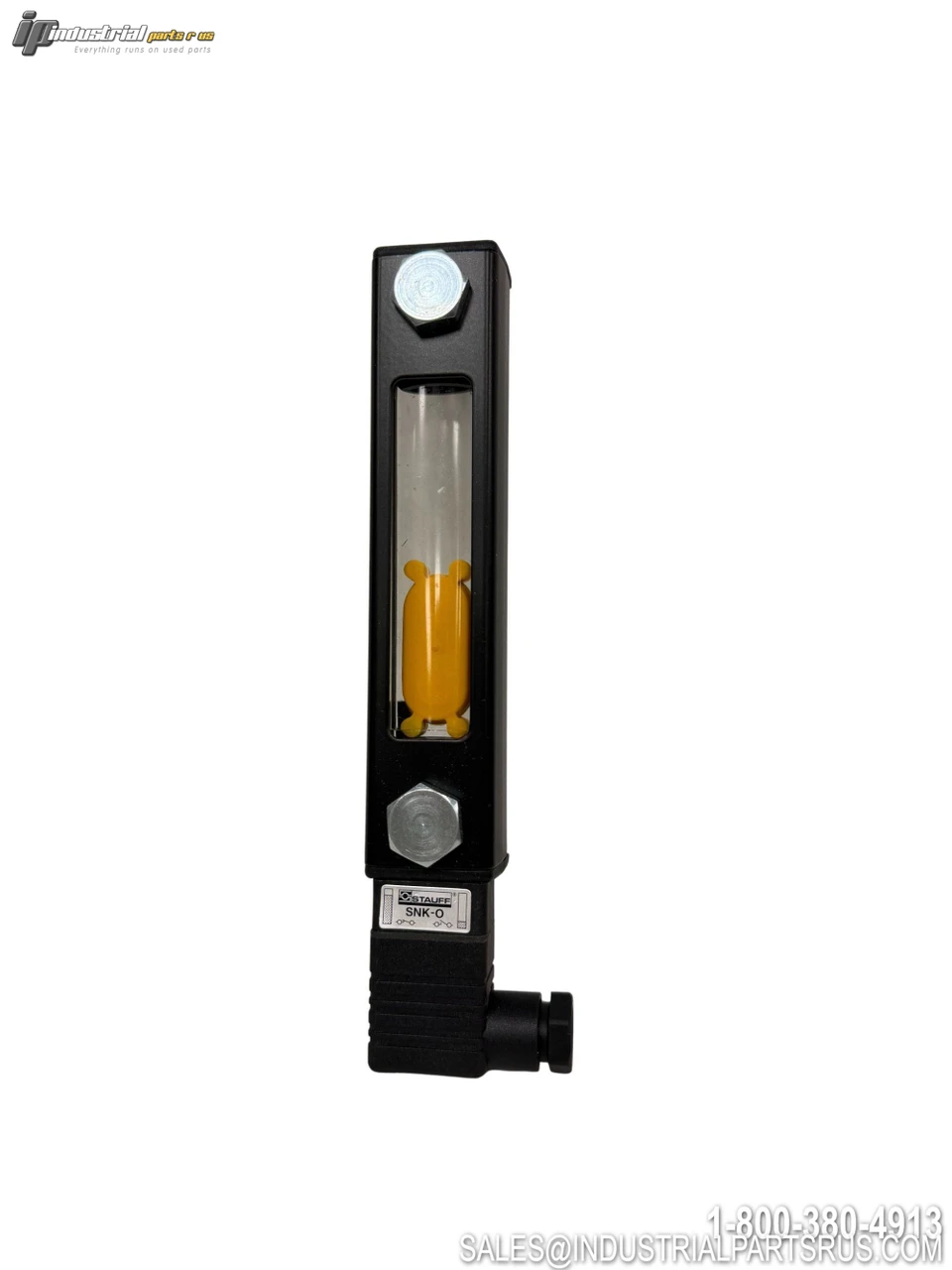

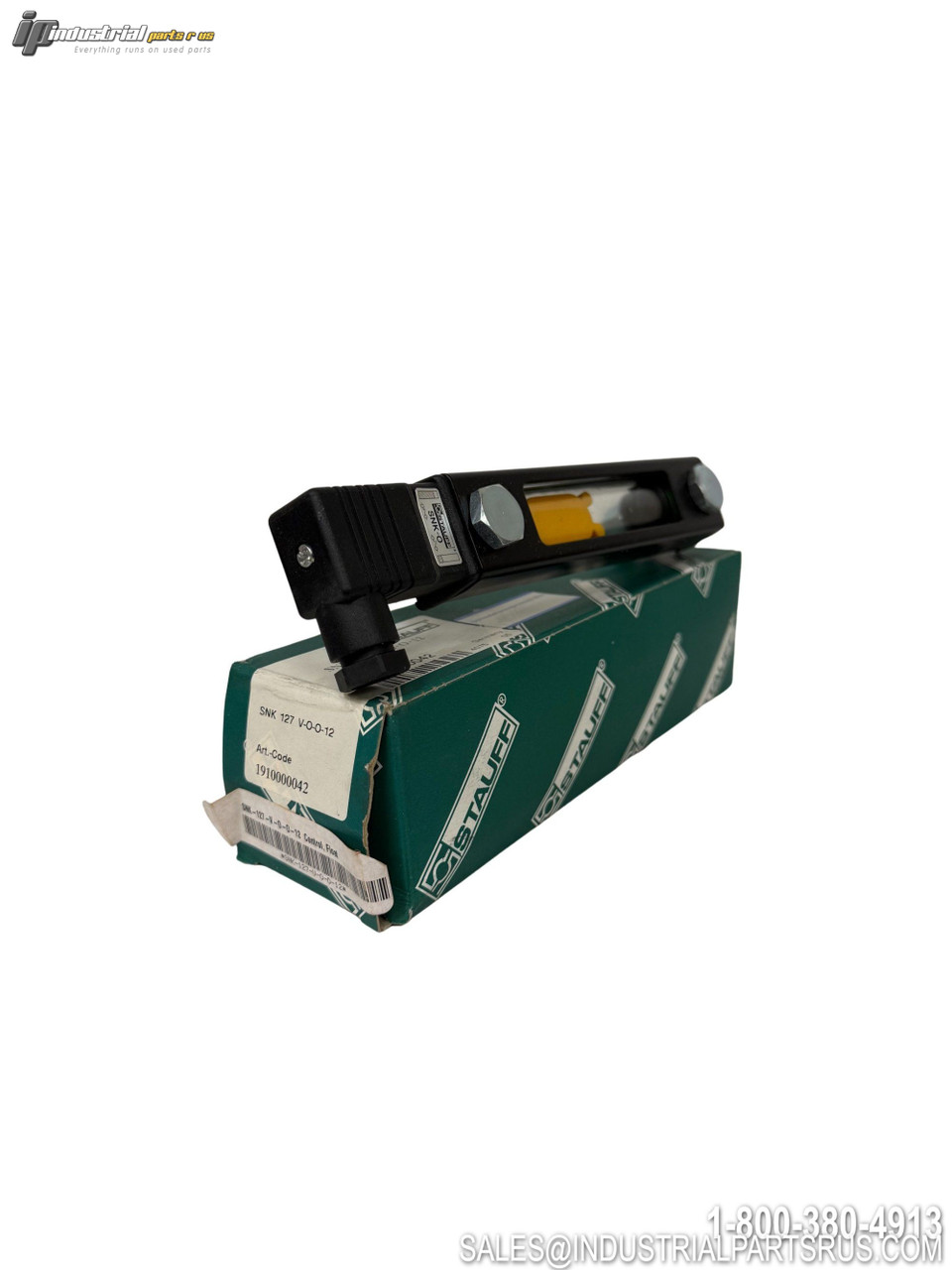

The Stauff SNK 127 V-O-O-12 is a hydraulic level gauge designed for visual and electrical fluid level indication in hydraulic reservoirs. This unit features a break contact (normally closed) electrical function, M12 standard banjo bolt connection, and does not include a thermometer. The gauge is suitable for maximum tank pressures not exceeding 29 PSI (2 bar).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Stauff |
| Model/Part Number | SNK 127 V-O-O-12 |
| Type | Level Sensor |
| Series | SNK |
| Size | 127 mm (5.00 in) |
| Electrical Function | Break Contact (n/c) |
| Contact Type | Normally Closed |
| Banjo Bolt Size | M12 (Standard) |
| Thermometer | Without Thermometer |
| Seal Material | Viton FPM |
| Maximum Pressure | 29 PSI (2 bar) |
| Operating Temperature | -22°F to +176°F (-30°C to +80°C) |
| Window Material | Polyamide |
| Housing Material | Aluminum |
| Finish | Powder-Coated Black |
| IP Rating | IP65 |
| Length | 61 mm |
| Width | 215 mm |
| Height | 34.5 mm |
| Gross Weight | 0.279 kg |
| Stauff Material Number | 1910000042 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Relay
Sensor Type Float Level Sensor
Manufacturer Stauff
Part Number SNK 127 V-O-O-12
Shelf K-49
Model SNK 127 V-O-O-12
MPN SNK 127 V-O-O-12
Type Level Sensor
